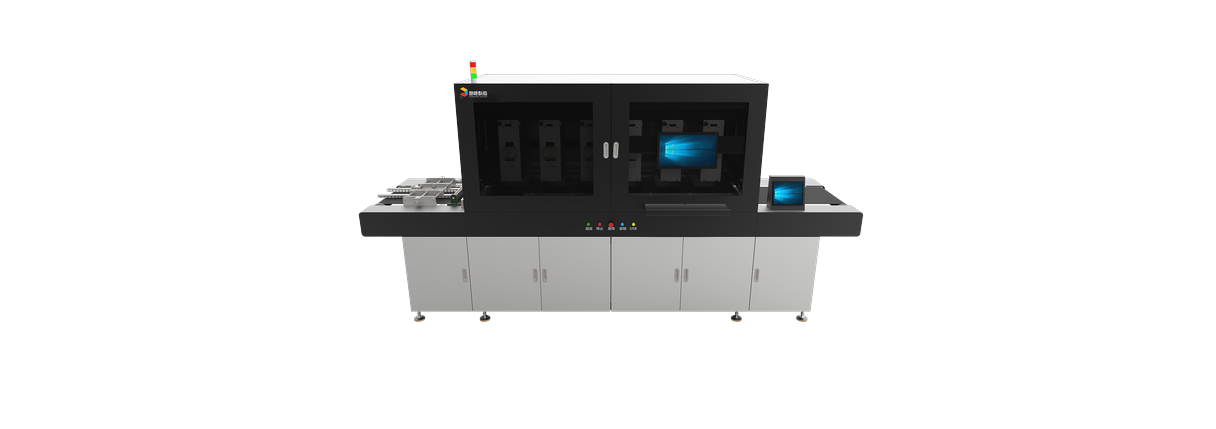

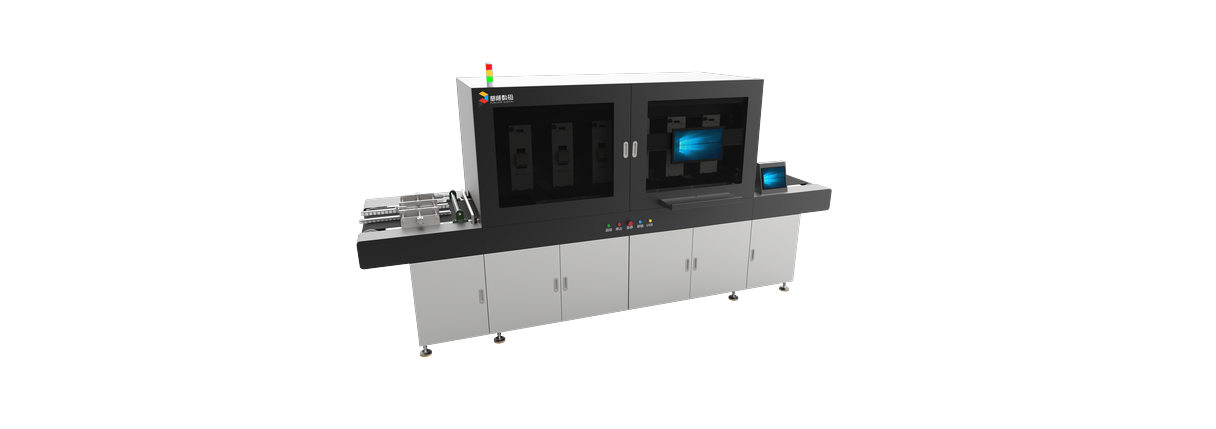

PT-516 wood grain printer

PT-516 wood grain printer

PT-516 wood grain printer

Product Introduction

PT-516 wood grain printer is a high-speed plate printer with a complete digital printing process. It has multiple advantages such as compact process, high output, and high degree of automation. The machine has a simple structure and is quick and easy to maintain.

Product Highlights

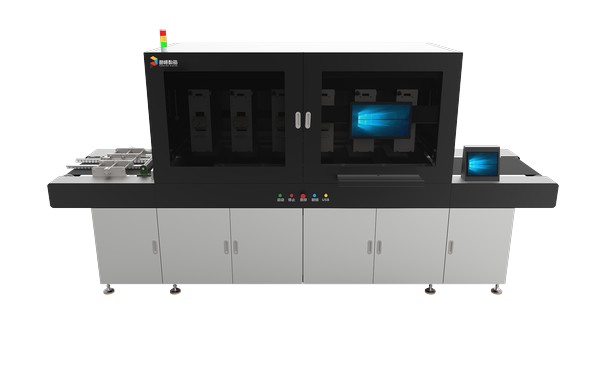

High-precision printing

01. High-precision printing

The print head 400dpi and 600dpi are optional. The texture and color are natural and real, and the visual effect exceeds that of solid wood flooring

Intelligent

02. Intelligent

The entire printing process requires very little work. You only need to add ink as needed and the machine automatically completes the process.

Good printing effect

03. Good printing effect

Ink paint has a comfortable and warm surface feel compared to pressed floors.

Personalized customization

04. Personalized customization

Diversified texture patterns and colors make the panels more colorful and respond quickly to market trends

Technical Specifications

Parameter name Technical configuration Parameter name Technical configuration
Nozzle configuration Starlight Star fire SG600 XSA Printing speed 10~48m/min adjustable
Print ink level 8~20pl, ink droplet size adjustable Belt height 1000-1100mm
Printing accuracy 600dpi Machine size 4400 × 1180 × 1800mm
color combination Six colors available Overall machine weight 1.2t
Maximum print width 516mm Power requirements 3F+L+GND, 380V, 50/60Hz
Maximum print length 3200mm Independent groundings 4Ω
Material thickness ≤40mm Machine power 10kW

Scope of Application

PT-516 wood grain printer can be used for printing on solid wood boards, various types of wood-plastic boards, plywood, co-extruded boards, various mineral organic boards, various metal boards, glass, ceramics, artificial marble and other materials.

Download Product Brochure

brochure

PT-516 Wood Grain Printer Product Manual

2025-04

PDF - 464 KB

There is always a product that suits you,
At the same time, we can provide customized services according to your specific requirements

On the journey to create high-quality products for our customers, we always adhere to the original intention of being sincere, adapt to needs, and grow together with our customers.
