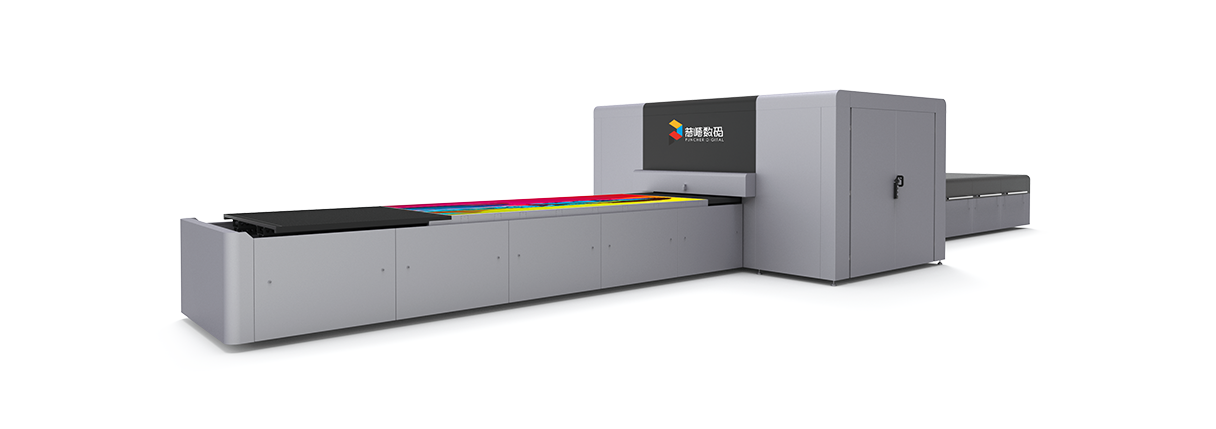

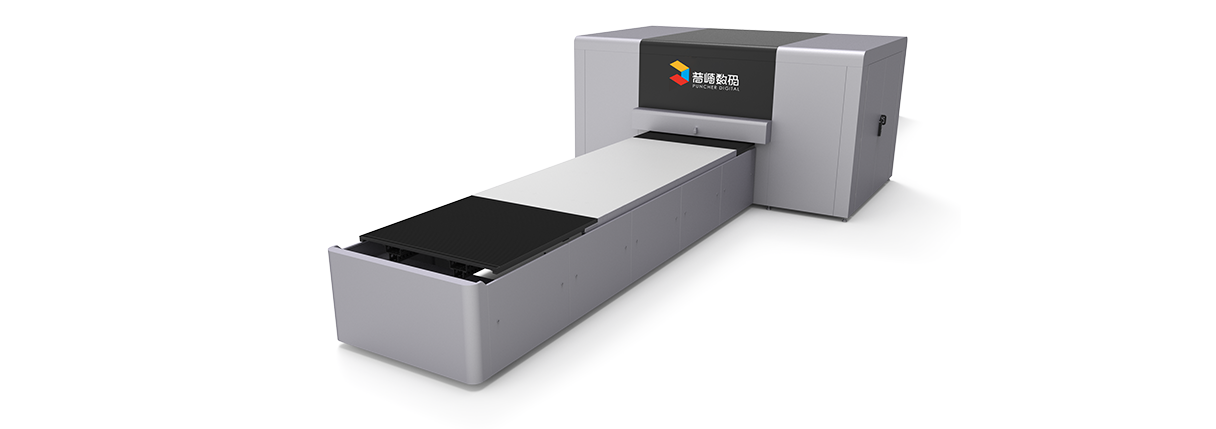

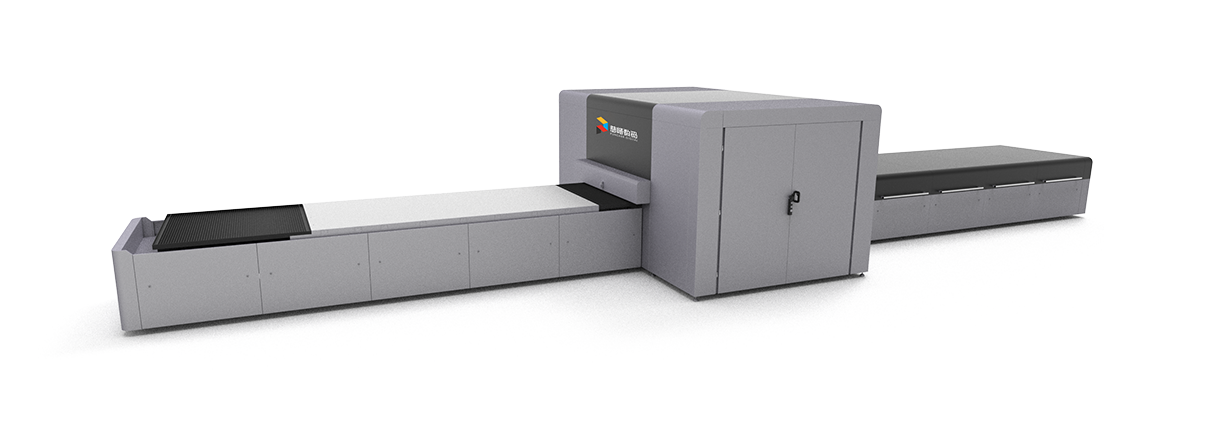

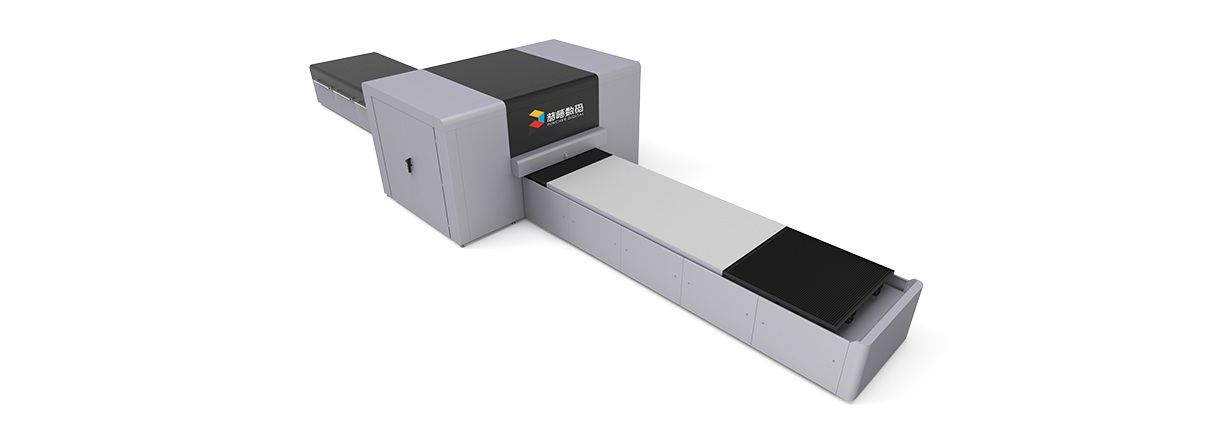

PT-S-Press 1600 high speed plate printing machine
Product Introduction
The PT-S-Press 1600 high-speed plate printing machine is a highly integrated large-scale printing equipment with a powerful vacuum workbench and can be configured with a robot to achieve comprehensive automatic and intelligent control. Using cutting-edge industrial Dimatix nozzles and a detachable design for easy maintenance, the equipment can continue to operate for a long time.
Product Highlights

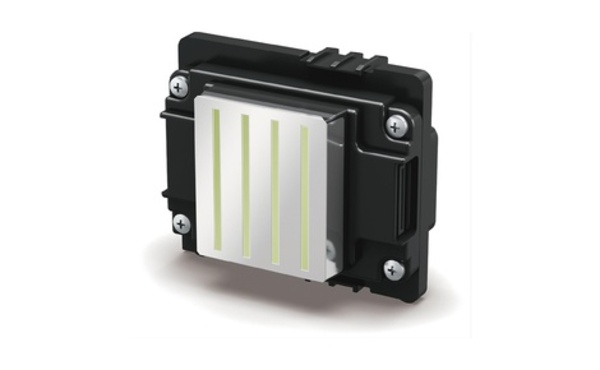

01. Industrial grade nozzle
Dimatix can be customized, 1200*1200dpi resolution, production capacity up to 1280㎡/h

02. Intelligent
Can be configured with a fully integrated intelligent loading and unloading platform to achieve fully automatic dual robot loading and unloading

03. Thermostatic control system
Original constant temperature control, the temperature difference is controlled within ±0.5°C, effectively improving ink stability

04. RIP software system
Accurate color presentation, increased rip speed, and can handle large amounts of variable data printing

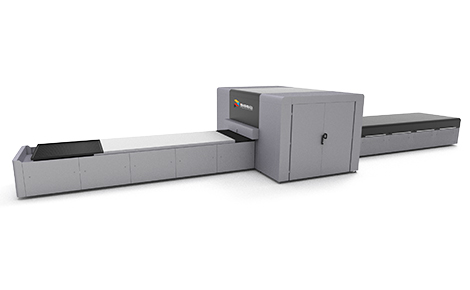

05. Extra wide printing format
1600*3500mm, high production efficiency

06. High precision system
Key components are manufactured in our own factory, with intelligent and precise analysis, and can work 24 hours a day.
Technical Specifications
| Parameter name | Technical configuration | Parameter name | Technical configuration |
| print head | SG600 | Fan power | 50HZ: 6.3KW+2.2KW / 60HZ: 7.3KW+2.55KW |
| Print head drop size | 10PL | Function | Mechanical anti-collision + electronic detection, electronic area identification, automatic cleaning |
| Print color | C/M/Y/K/LC/LM/W/V (optional) | Automation options | Automation of loading and unloading (optional), robot handling (optional) |
| Number of nozzles | 25-150 nozzles (optional), one color per head / two colors per head | Board | Driver board 25PCS/color (optional), PCC motherboard 4PCS/color (optional) |
| Maximum printing area | 1600mm × 4000mm | Inks and Curing | Constant temperature ink circulation system, double mercury lamp + LED pre-curing lamp |
| Maximum substrate thickness | 50mm | RIP | colorgate software, supports pdf, ai, tif, bmp formats, gigabit network |
| Maximum substrate weight | 80kg | Environmental requirements | The indoor temperature is about 25℃, the relative humidity is about 55%, and the dust-free clean area is from class 10,000 to class 100,000. |
| platform partition | 15 partitions | Accessories | Chiller: Evian 4.9KW |
| size | 15140 × 4966.5 × 2300mm | Antifreeze: -16℃ national standard universal / green / 100KG (optional) | |
| Covered area | 20000×10000×6000mm | Air compressor: ML1500-3 300L/min 0.8MPa/unit (optional) | |
| weight | about 10 tons | Voltage stabilizer: Voltage stabilizer (50KW) (optional) | |
| Machine power | 125KW | Industrial computer: 19" Precision 5820 (customized)/Dell (optional) | |
| Standby power | 10KW | Monitor: HDMI+VGA/L22E-30 21.5 inches / Lenovo (optional) |
Scope of Application
PT-S-Press 1600 high-speed plate printing machine is suitable for printing various types of plates and paper in home decoration, advertising, packaging and other industries, meeting the needs of large-width, high-capacity fine printing. Applicable materials: foamed PVC, foam board, corrugated cardboard, display rack cardboard/cardboard, polystyrene, synthetic paper, banner material, corrugated polypropylene, polycarbonate, etc.




Download Product Brochure
brochure
PT-S-Press 1600 High Speed Plate Printing Machine Product Manual
2025-04
PDF - 601 KB
