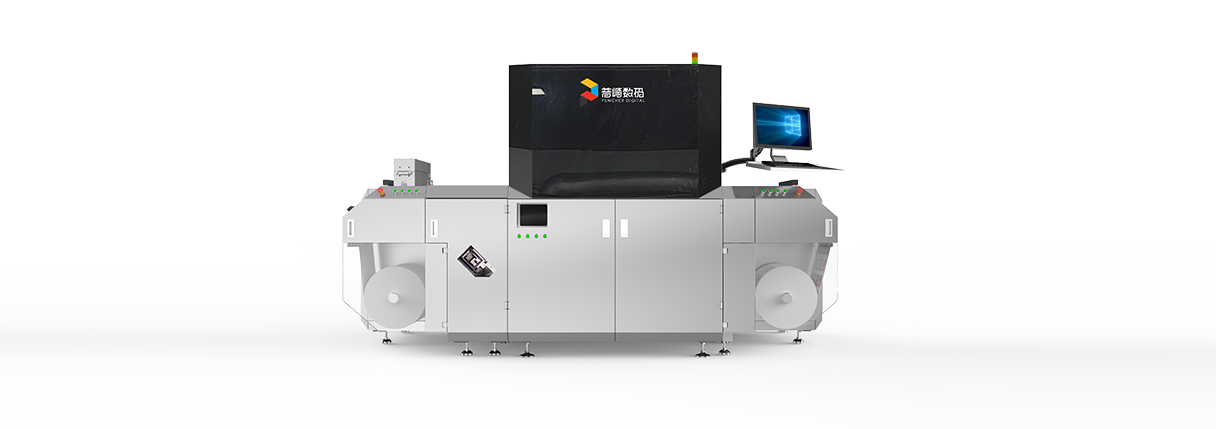

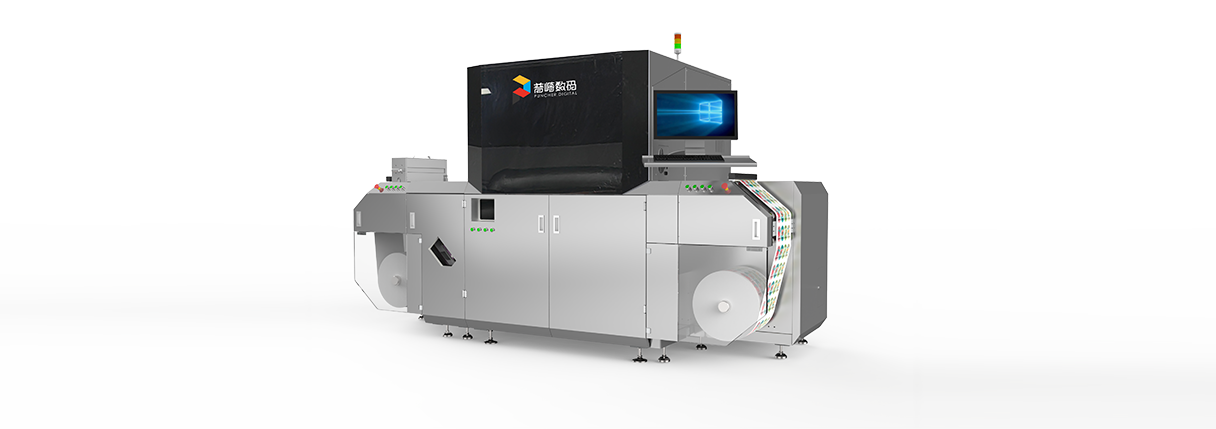

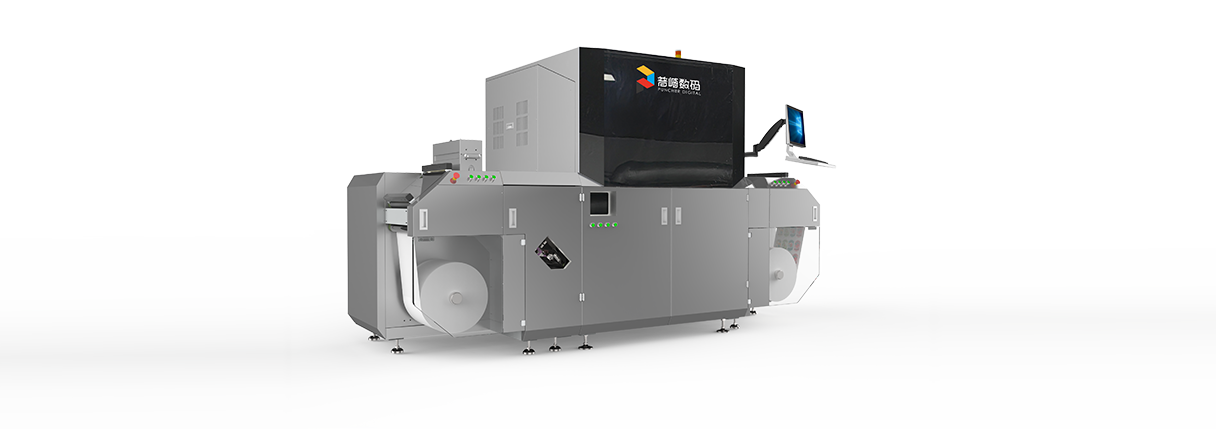

PT-L-press 330S high speed digital label printing machine
Product Introduction
The PT-L-press 330S high-speed digital label printing machine occupies an important position in the printing market with its high efficiency, high precision, and high stability. Environmentally friendly materials, UV ink, and equipment energy-saving design help reduce energy consumption, operating costs, and environmental pollution. It can effectively improve production efficiency for enterprises and meet diverse printing needs.
Product Highlights

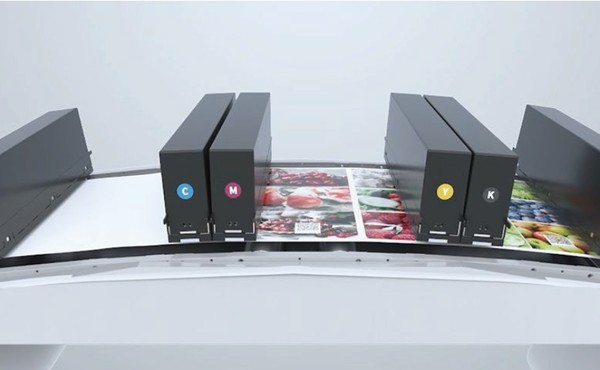

01. Variable data printing
Customize personalized labels to meet variable content printing

02. Intelligent feathering mode
Optimize the printing effect, making the image smoother and more delicate

03. Thermostatic control system
The temperature difference is controlled within ±0.1℃ to ensure maximum inkjet stability

04. automation
Automatic nozzle cleaning at regular intervals, automatic paper feeding and collection, etc.

05. Industrial grade SAMBA nozzle
1200×1200dpi high resolution, 80m/min high-speed printing, internal ink circulation and nozzle compensation effectively reduce costs and improve efficiency

06. Specialized technology
Unique operating software, RIP system, and unique ink circulation system ensure stable and efficient printing
Technical Specifications
| Parameter name | Technical configuration | Parameter name | Technical configuration |
| Machine model | L-Press.330s | Print width | 330mm(13in) |
| nozzle | Samba | ink | UV ink |
| Number of nozzles | 1 color 8 heads, 40pcs | color matching | Cyan, Magenta, Yellow, Black, White (6 color channels) |
| Print resolution | 1200*1200dpi | Loading capacity | Maximum roll diameter 750mm, maximum weight 120kg |
| smallest ink drop | 2PL | Material width | Maximum width 350mm |
| variable data | support | Material thickness | 20um-500μm |
| Purchasing bid printing | support | Material type | Coated and uncoated, backed or unlined materials. Paper, white and transparent films, PP, PE, PVC, PET, BOPP, pure aluminum foil and PET. |
| Fastest printing speed | 80m/min | Equipment size | H210cm × W159cm × L345cm |
Scope of Application
PT-L-press 330S high-speed digital label printing machine has a wide range of applications, covering commercial advertising, product packaging, label production, personalized printing and other fields. Printable materials include but are not limited to paper, white and transparent film, PP, PE, PVC, BOPP, pure aluminum foil and PET, etc.




Download Product Brochure
brochure
PT-L-press 330S high-speed digital label printing machine product manual
2025-04
PDF - 561 KB
There is always a product that suits you,
At the same time, we can provide customized services according to your specific requirements
On the journey to create high-quality products for our customers, we always adhere to the original intention of being sincere, adapt to needs, and grow together with our customers.
