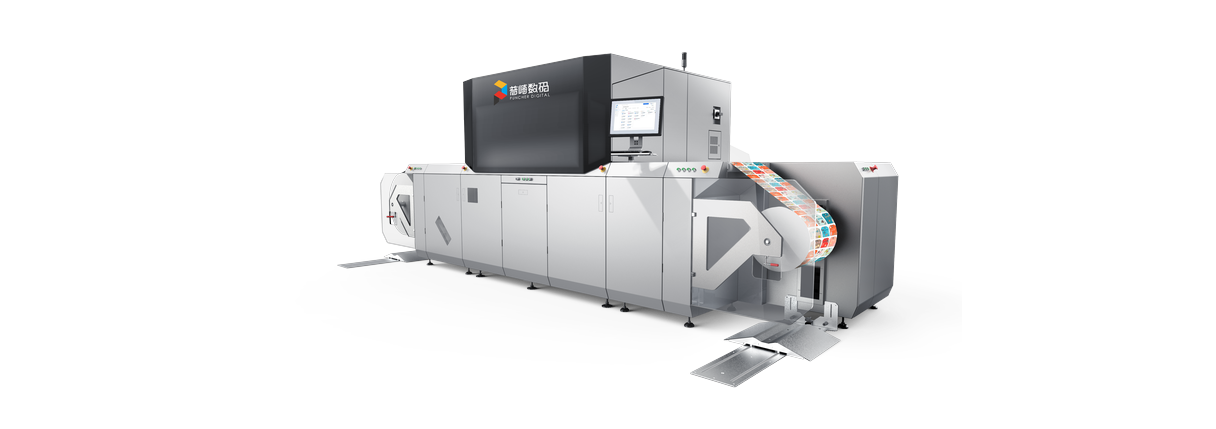

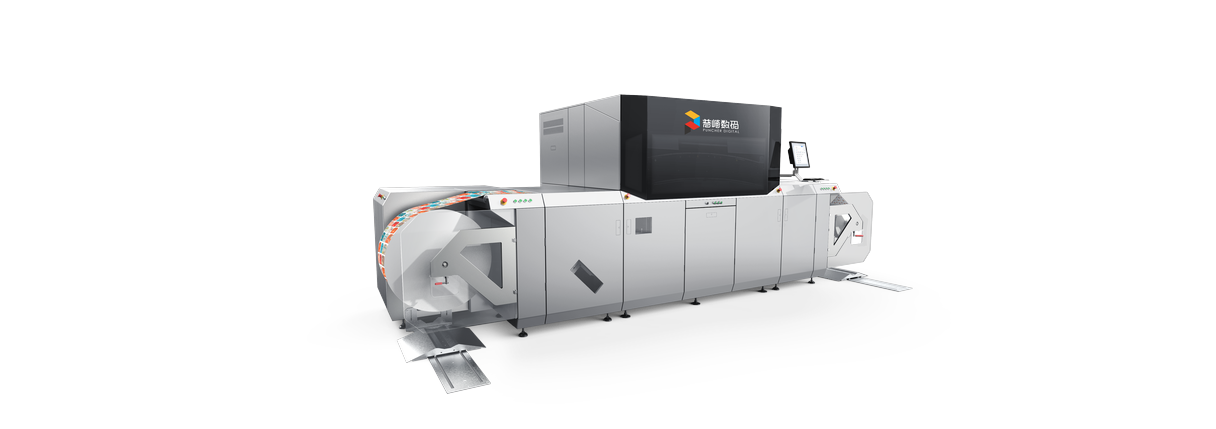

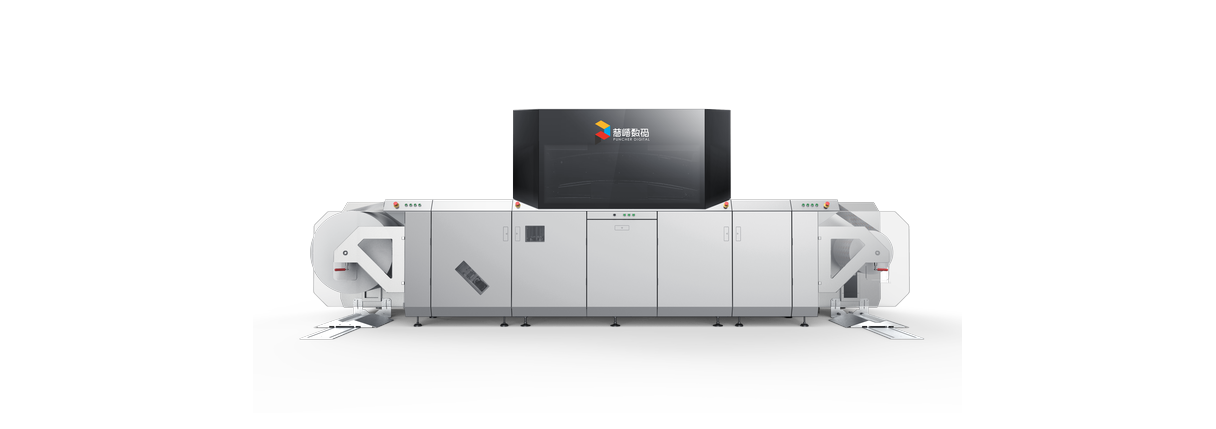

PT-L-press 510 high speed digital label printing machine

Inquiry Now Switch Product

Product Introduction

The PT-L-press 510 high-speed digital label printing machine occupies an important position in the printing market with its high efficiency, high precision, and high stability. Environmentally friendly materials, UV ink, and equipment energy-saving design help reduce energy consumption, operating costs, and environmental pollution. It can effectively improve production efficiency for enterprises and meet diverse printing needs.

Product Highlights

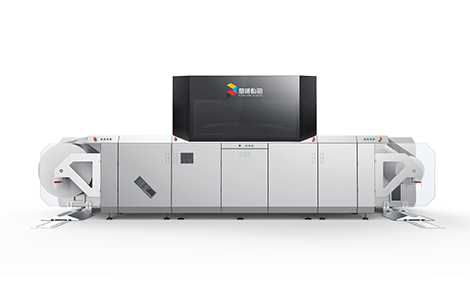

Variable data printing

01. Variable data printing

Customize personalized labels to meet variable content printing

Intelligent feathering mode

02. Intelligent feathering mode

Optimize the printing effect, making the image smoother and more delicate

Thermostatic control system

03. Thermostatic control system

The temperature difference is controlled within ±0.1℃ to ensure maximum inkjet stability

automation

04. automation

Automatic nozzle cleaning at regular intervals, automatic paper feeding and collection, etc.

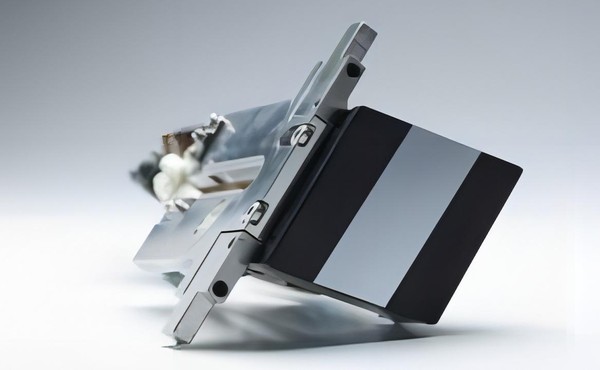

Industrial grade SAMBA nozzle

05. Industrial grade SAMBA nozzle

1200×1200dpi high resolution, 80m/min high-speed printing, internal ink circulation and nozzle compensation effectively reduce costs and improve efficiency

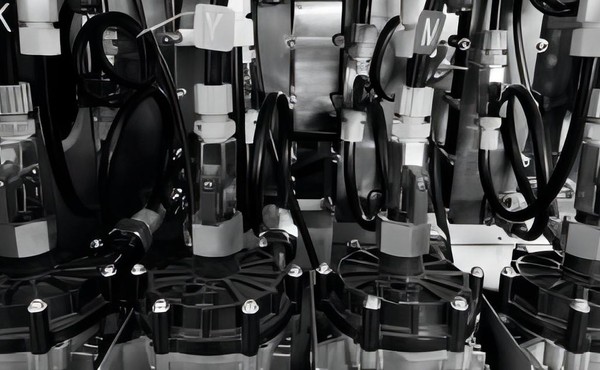

Specialized technology

06. Specialized technology

Unique operating software, RIP system, and unique ink circulation system ensure stable and efficient printing

Technical Specifications

Parameter name	Technical configuration	Parameter name	Technical configuration
Machine model	L-Press 510	Print width	510mm(20in), 420mm(16.5in), 330mm(13in)
nozzle	Samba	ink	UV ink
Number of nozzles	1 color 12 heads, 60pcs	color matching	Cyan, Magenta, Yellow, Black, White (8 color channels)
Print resolution	1200*1200dpi	Loading capacity	Maximum roll diameter 1016mm, maximum weight 450kg
smallest ink drop	2PL	Material width	Maximum 530mm
variable data	support	Material thickness	20um-500μm
Purchasing bid printing	support	Material type	Coated and uncoated, backed or unlined materials. Paper, white and transparent films, PP, PE, PVC, PET, BOPP, pure aluminum foil and PET.
Fastest printing speed	80m/min	Equipment size	H210cm × W260cm × L568cm

Scope of Application

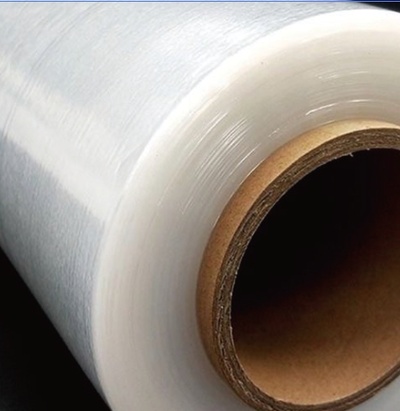

PT-L-press 510 high-speed digital label printing machine can print on a wide range of substrates and has strong adaptability. It can print on coated and uncoated materials, with or without backing, including: paper, white and transparent film, PP, PE, PVC, BOPP, pure aluminum foil and PET, etc.

Download Product Brochure

brochure

PT-L-press 510 high speed digital label printing machine product manual

2025-04

PDF - 552 KB

Download
