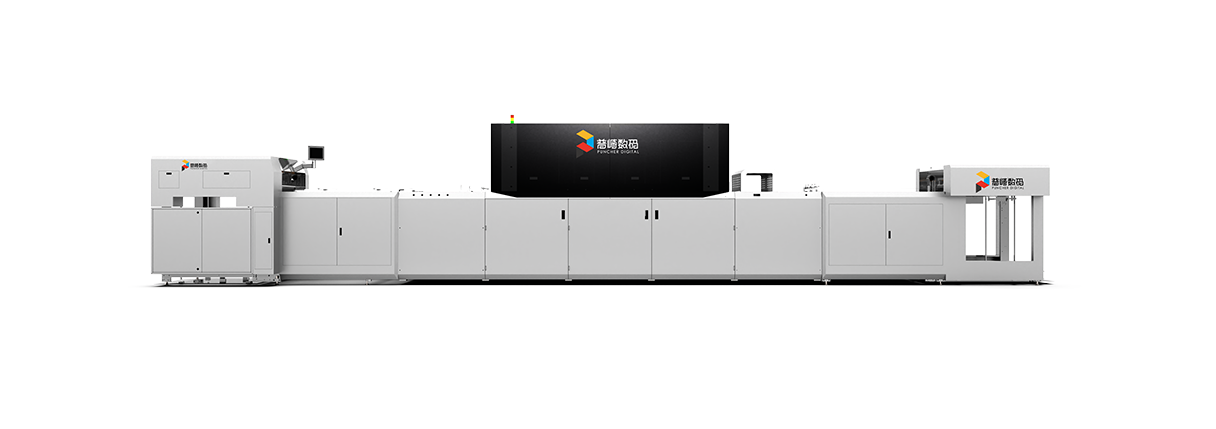

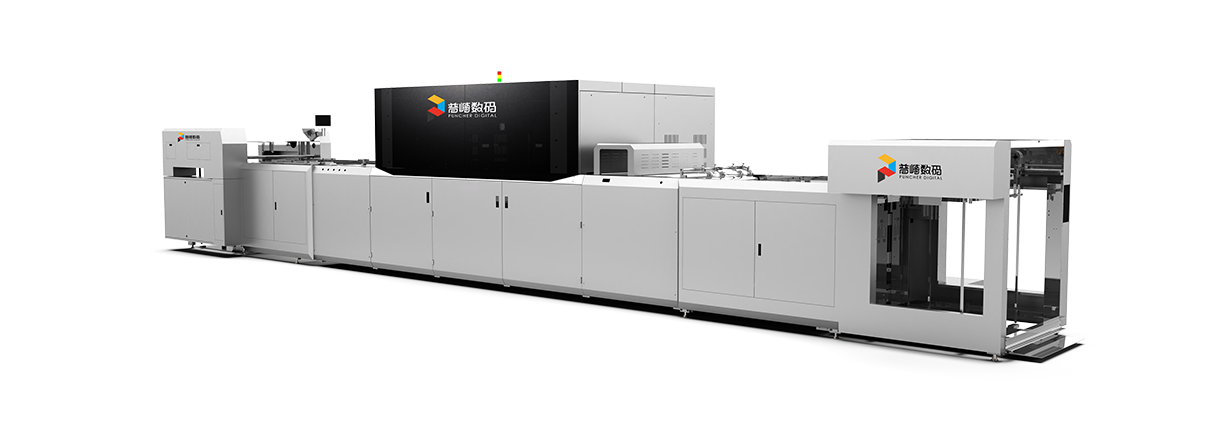

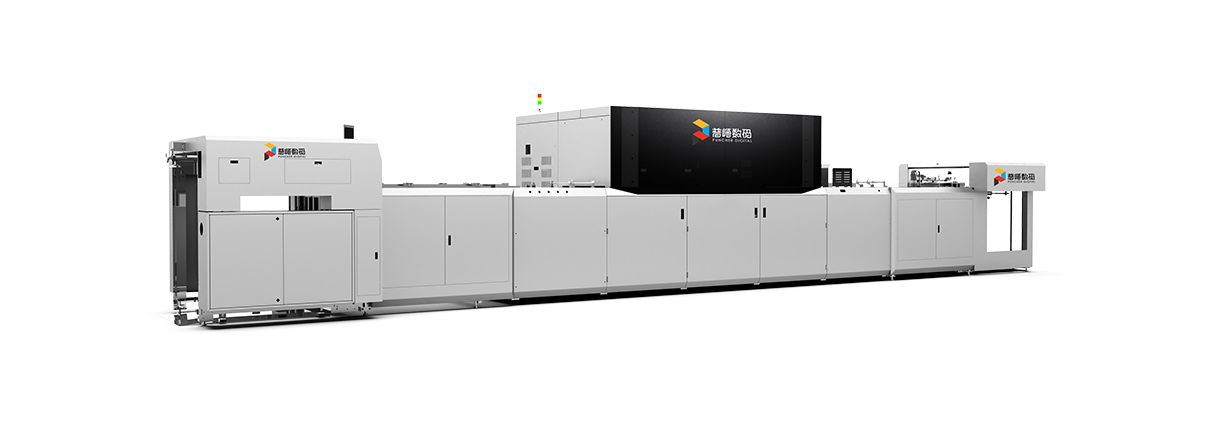

PT-H-press 750S high-speed digital sheet-fed printing press

Product Introduction

The PT-H-press 750S high-speed digital sheet-fed printing press features stable and high-speed production capacity, high-precision printing effects, and flexible operability. It is compatible with a variety of paper materials and sizes, and has excellent print quality and color advantages. It can efficiently meet commercial short-run printing, packaging printing, and personalized customization.

Product Highlights

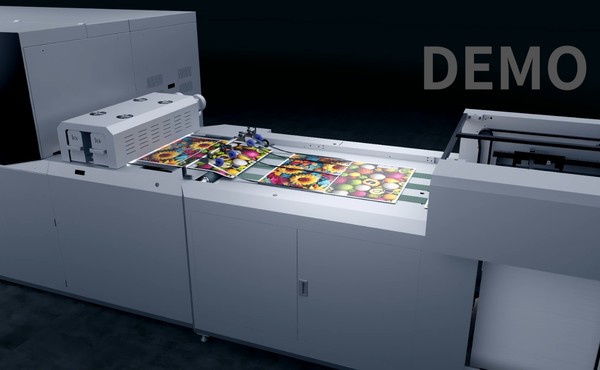

Variable data printing

01. Variable data printing

Achieve richer pre-press data processing to meet variable data printing

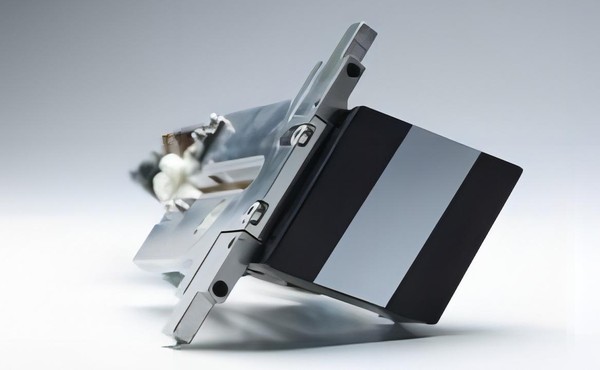

Industrial grade SAMBA nozzle

02. Industrial grade SAMBA nozzle

MEMS silicon-based manufacturing technology, automatic nozzle compensation, no light spraying for 48 hours

Thermostatic control system

03. Thermostatic control system

Constant temperature ink control system to maintain color consistency and ensure printing stability

automation

04. automation

Automatic nozzle cleaning, fully automatic paper delivery structure, automatic detection and production, effectively reduce printing error rate

Excellent color performance

05. Excellent color performance

1200×1200dpi high resolution, minimum ink droplet 2pl, wide color gamut professional ink, 95% PANTON coverage, excellent light resistance and heat resistance

Staged curing

06. Staged curing

LED+mercury lamp segmented curing, printing and drying, high-speed production

Technical Specifications

Parameter name Technical configuration Parameter name Technical configuration
Machine model H-Press.750S color matching Cyan, Magenta, Yellow, Black
nozzle Samba Material size Maximum 787×1090mm, minimum 350×350mm
Number of nozzles 1 color 6 heads, 72pcs Paper weight range 100-450gsm
Print resolution 1200*1200dpi Paper stack height 0-1000mm
smallest ink drop 2PL Material thickness 100μ-400μ
variable data support Material type Gold and silver cards, paper, stickers, metal foil, OPP and other films
Purchasing bid printing support Equipment size H240cm × W255cm × L1200cm
Fastest printing speed 80m/min Equipment power Rated 60kw
Print width 750mm(29.5in) Equipment weight 8000kg
ink UV ink

Scope of Application

The PT-H-press 750S high-speed digital sheet-fed printing machine does not require pre-processing and is compatible with a wide range of sheet-fed material types. It is widely used for materials with a thickness of 0.1mm~0.5mm, including gold and silver cards, paper, self-adhesive, metal foil, OPP and other film types. It is widely used in various fields that require high-precision and high-efficiency printing.

Download Product Brochure

brochure

PT-H-press 750S high-speed digital sheet-fed printing press product manual

2025-04

PDF - 521 KB
