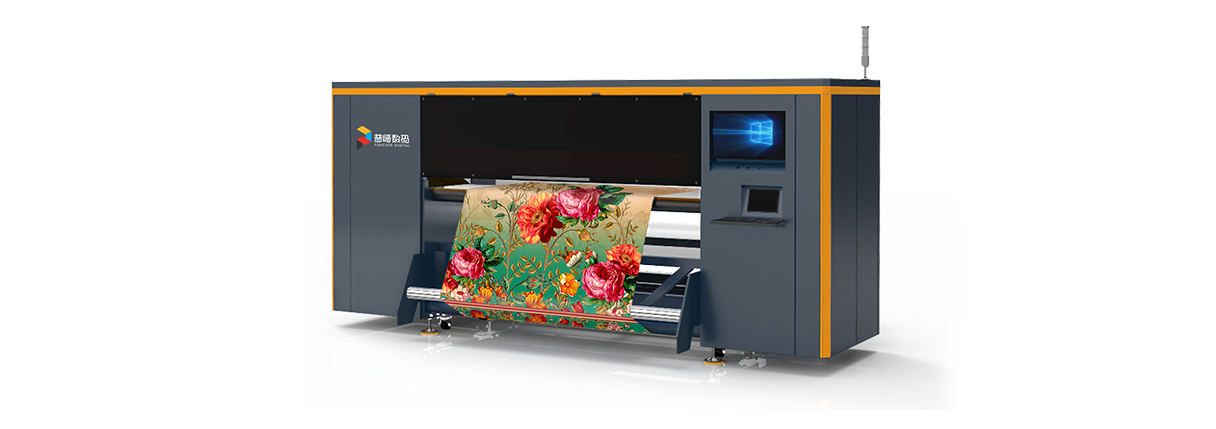

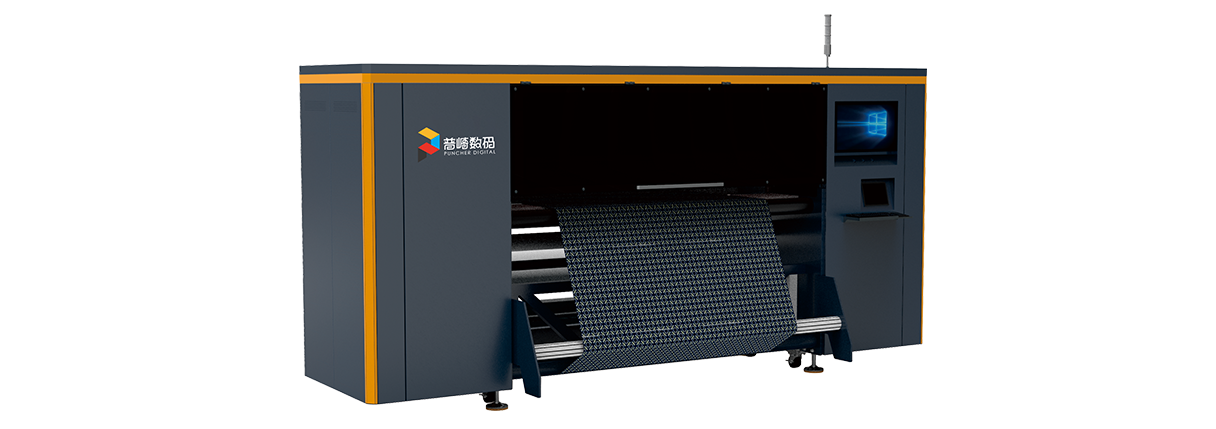

PT-JET high-speed paper printing machine
Product Introduction
The PT-JET high-speed paper printing machine adopts an overall industrial design, has a precision close to double-head printing, and has finer physical nozzles and variable ink droplet printing technology, and has a very high market price/performance ratio.
Product Highlights

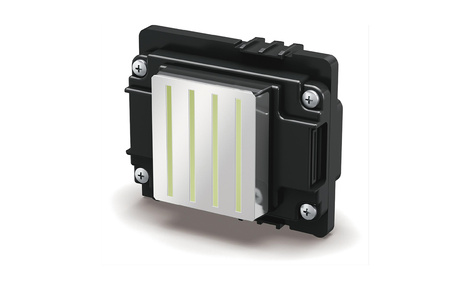

01. Industrial grade nozzle
Epson S3200 printhead minimum 3.5PL ink drop volume

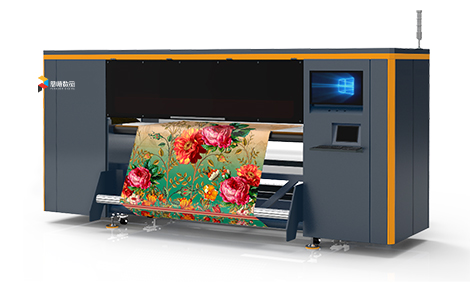

02. High productivity output
Maximum printing speed 8 nozzles 600㎡/h high-speed paper printing

03. Variable droplet printing
Meet the picture density requirements and make the layers more uniform

04. Extra wide printing format
The maximum width of roll-to-roll materials is 1900mm, with high production efficiency

05. automation
Automatic ink absorption, ink stack protection nozzle system, paper shortage pause, ink shortage alarm
Technical Specifications
| Parameter name | Technical configuration | Parameter name | Technical configuration |
| Basic configuration | Epson S3200 printhead, supports up to 8 heads, minimum 3.5PL, variable dot printing Automatic ink absorption, ink stack protection nozzle system, paper shortage pause, ink shortage alarm |
weight | 1800 kg |
| Print parameters | High quality: 200 m2/hour | power | 6.5KW |
| High production: 400 m2/hour | temperature | 20℃-30℃ | |
| High speed: 600 m2/hour | humidity | 45%-75% RH (no condensation) | |
| medium | Roll-to-roll material, maximum width 1.9 meters, suitable for thermal transfer paper | software | PDF/PS/EPS/TIFF/AI |
| ink | 4 colors, 6 colors, supports thermal transfer ink | File format | Maintop/Photoprint/Texprint/Caldera etc. |
| size | 3700*1700*1900mm |
Scope of Application
PT-JET high-speed paper printing machine is used in packaging and printing of various products, promotional materials in the advertising industry, publishing and printing, digital imaging, decorative painting production and other fields.




Download Product Brochure
There is always a product that suits you,
At the same time, we can provide customized services according to your specific requirements
On the journey to create high-quality products for our customers, we always adhere to the original intention of being sincere, adapt to needs, and grow together with our customers.
