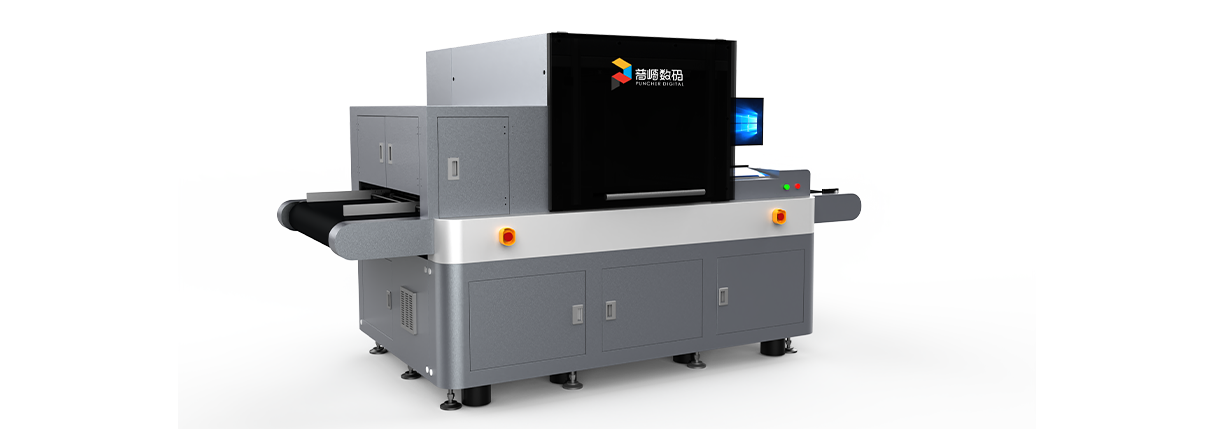

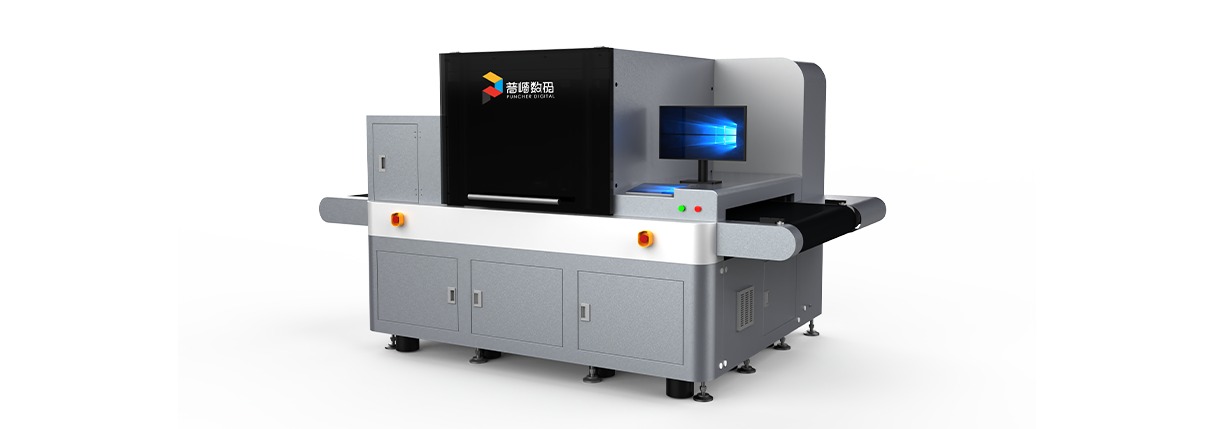

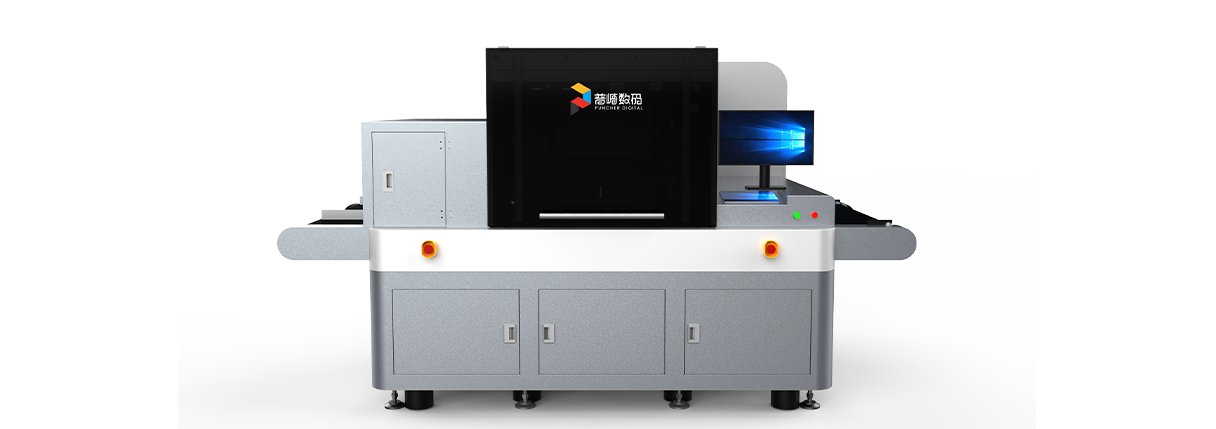

PT-1000A color inkjet printer

Product Introduction

PT-1000A color inkjet printer uses Ricoh GEN5/GEN6 nozzles, which have high printing accuracy and fast speed. It is equipped with professional printing media pretreatment and in-print processing solutions, and can perform high-resolution and high-precision printing on the surfaces of different materials.

Product Highlights

One-click cleansing and moisturizing

01. One-click cleansing and moisturizing

The duration of a single ink press can be freely set, and the nozzle surface will be automatically cleaned after completion.

Plasma cleaning machine

02. Plasma cleaning machine

Pre-treat the material surface before printing to improve the compatibility and adhesion between the material and ink

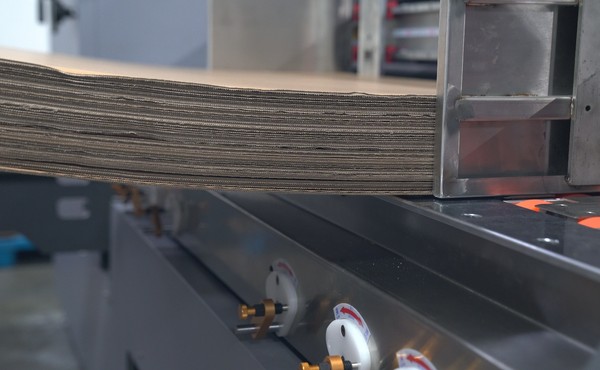

Material pre-pressure device

03. Material pre-pressure device

Make the material surface relatively flat to ensure printing quality and reduce the problem of material bulges causing scratches on the nozzle

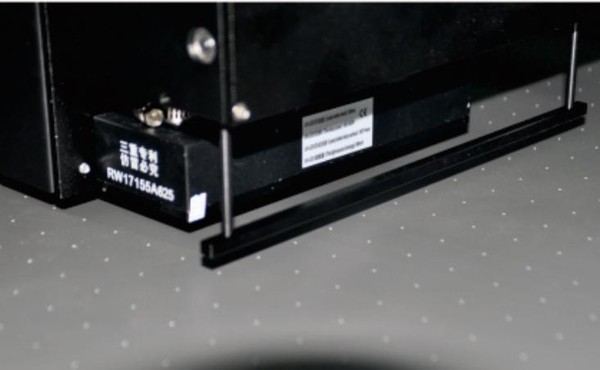

Anti-collision function for incoming materials

04. Anti-collision function for incoming materials

Prevent materials with warped edges, bulges, and severe deformation from entering the printing process to prevent scratches and damage to the nozzle.

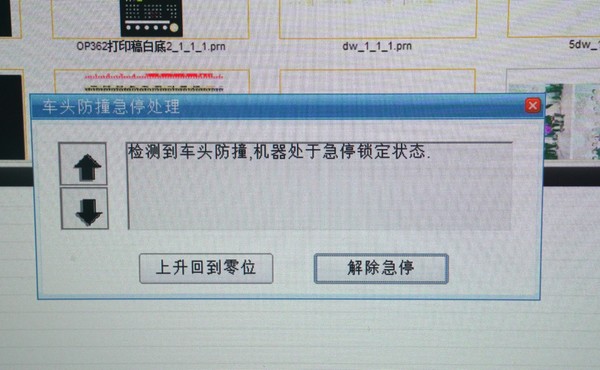

Incoming material detection and material blocking functions

05. Incoming material detection and material blocking functions

Automatically detect the incoming material sensor and baffle to achieve orderly printing of materials and improve printing consistency.

Technical Specifications

Parameter name	Technical configuration	Parameter name	Technical configuration
Nozzle type	Ricoh GEN5/GEN6	printing station	The maximum lifting height is 100mm, the height can be set, and the printing position can be set (the ink truck moves up and down, left and right)
Nozzle configuration	1H-15H, four colors plus white optional (C, M, Y, K, W)	RIP software	Colorgate
Printing width	54-162mm (customizable printing width)	Data interface	High-speed fiber optic transmission
Printing speed	600dpi:0-30m/min	Power and electricity consumption	380V(±10%)50HzPmax:15KW
media information	Maximum material feeding width: 1000mm Thickness: within 0-100mm	Air source requirements	Pressure ≥6kq/cm2 flow rate ≥150L/min
Material type	Handbags, kraft paper bags, cartons, pieces of paper, lunch box lids, packaging boxes, single flat materials, etc.	Appearance size and weight	LWH(mm):305018001750mm about 2000kg
security features	Yellow light pause, safety red light alarm, nozzle anti-scratch function	temperature	20°℃~30°℃(68°F~86°F)
Printing process	Unloading-plasma treatment-UV white color printing-UV curing-receiving	humidity	35%~65% (no condensation)
Picture format	TIFF(RGB&CMYK)、BMP、PDF、EPS、JPEG等	Environmental requirements	Independent, clean, low-dust, low-light, well-ventilated workspace
Printing function	Characters, dates, barcodes, QR codes, logo patterns, etc.

Scope of Application

The PT-1000A color inkjet printer uses Ricoh GEN5/GEN6 printheads and has a wide range of applications. It is mostly used in the food industry, daily chemicals, medicine, industrial manufacturing and other industries. It helps high-quality printing of single flat materials such as handbags, kraft paper bags, cartons, paper, lunch box lids, packaging boxes, etc., effectively adding product value.
