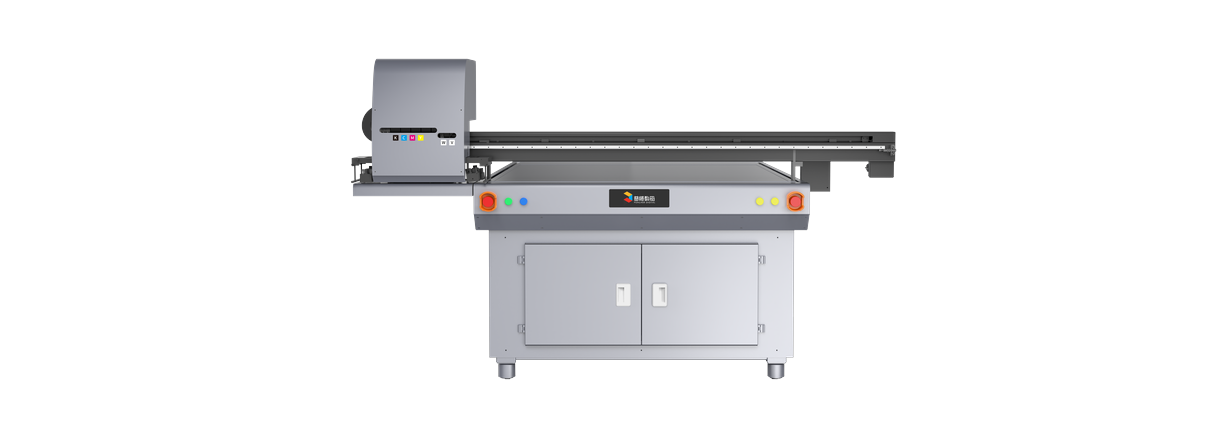

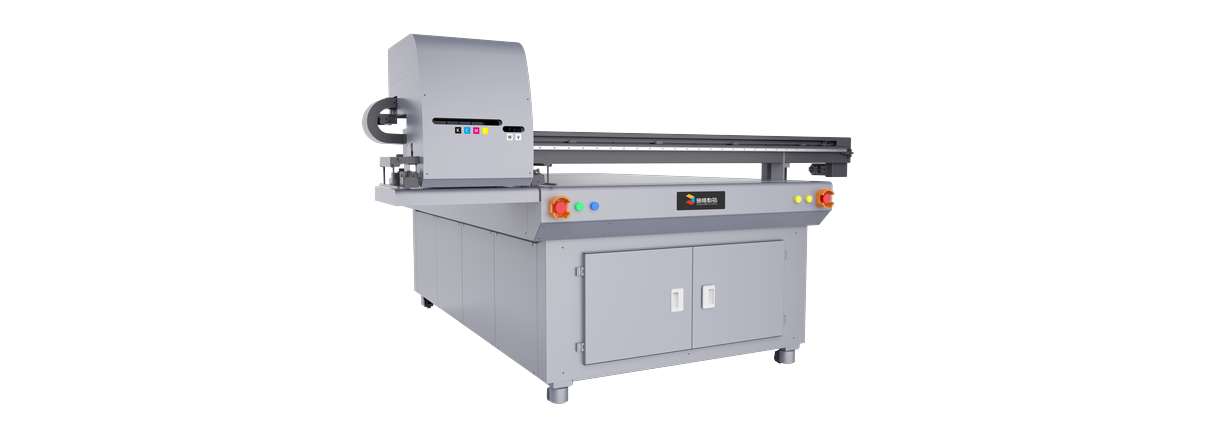

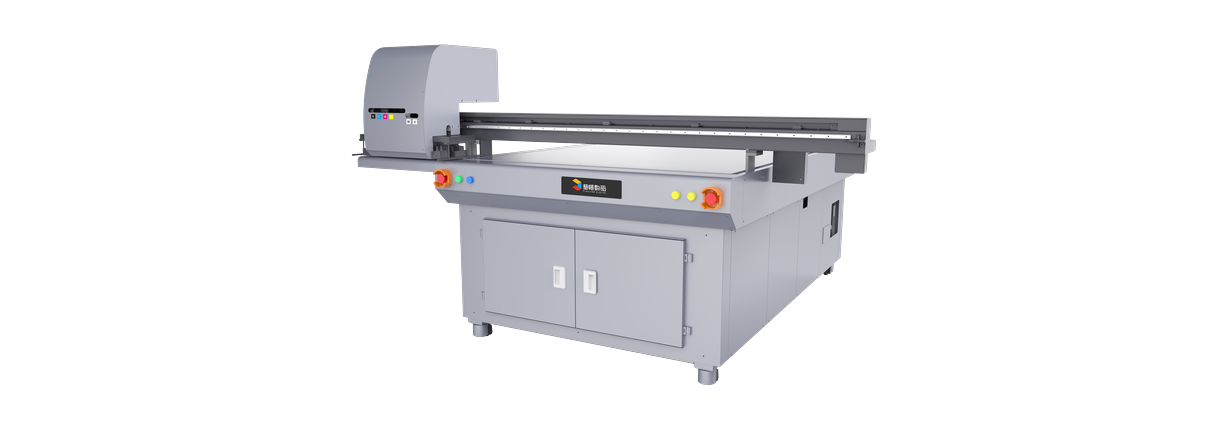

PT-1216 UV flatbed printer
Product Introduction
The PT-1216 UV flatbed printer has new visual positioning technology, variable dot printing, high drop printing, RIP color management and professional UV ink environmental protection and safety features. It can accurately position during printing, effectively improving efficiency, and the innovative multi-functional and customizable model helps mass production.
Product Highlights

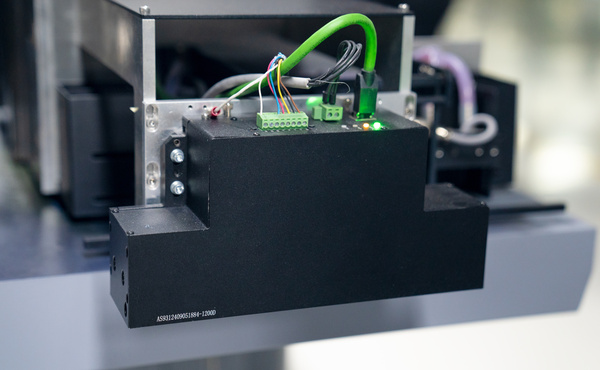

01. CCD intelligent visual positioning
600dpi high-precision positioning, efficient automation, high flexibility and compatibility, matching accuracy up to 0.15mm

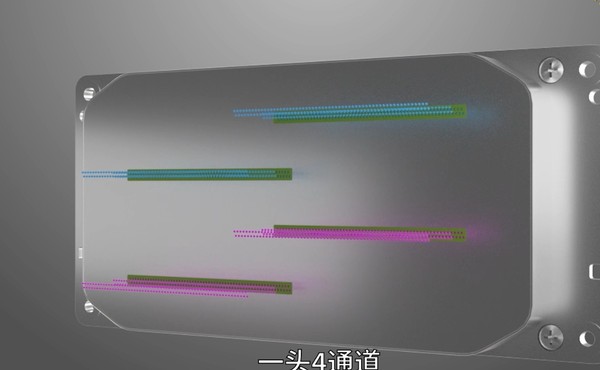

02. High-precision printing
720*900dpi/front model 720*1200dpi, 1:1 image output without distortion

03. RIP color management
Ultra-wide color gamut, accurate color matching, and true restoration of picture colors

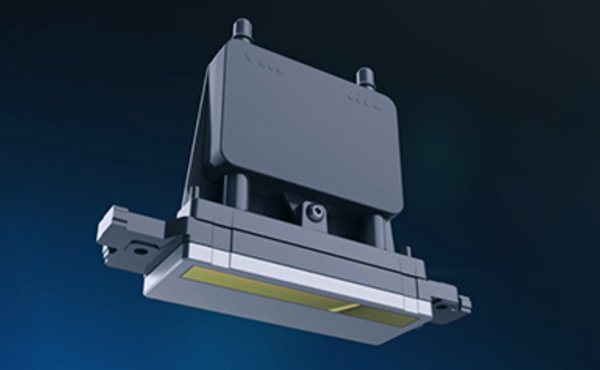

04. Personalized customization
Ricoh GH2220 printhead

05. Variable droplet printing
Meet the picture density requirements and make the layers more uniform

06. White ink circulation stirring function
Prevent ink precipitation and ink path clogging, extend equipment life and improve efficiency
Technical Specifications
| Parameter name | Technical configuration | Parameter name | Technical configuration |
| Nozzle configuration | GH2220 nozzle | Curing method | UV curing |
| Print size | 1200×1600mm | Lifting method | Ink truck lifting + automatic height measurement |
| print height | 0-150mm | Movement style | Single Y-axis motor independent drive |
| Print resolution | 720x900dpi/720x1200dpi | Ink type | Imported UV environmentally friendly soft ink/hard ink/neutral ink (VOC-free) |
| printing technology | variable dot printing | Ink color | cyan/magenta/yellow/black/light cyan/light red/white |
| Ink supply system | digital inkjet system | Ink supply method | Drive pump for ink supply |
| Negative pressure system | Negative pressure automatic adjustment system | Overall dimensions | 2250×2300×1185mm |
| RIP software | Colorgate | Environmental requirements | Temperature 18-26℃, humidity 20%-80%RH |
| operating system | Windows7 Ultimate 64-bit | Power requirements | AC220V 50/60Hz |
| X/Y/Z axis motor | X-axis: servo motor Y-axis: servo motor Z-axis: stepper motor | Maximum power | 3500W (including blower 1500w) |
| data transfer | Optical fiber data transmission | Equipment net weight | 650kg |
Printing speeds corresponding to the standard-equipped printheads
| Number of PASS | 6PASS | 8PASS | ||||
| Feather: Gradient | weak | middle | powerful | weak | middle | powerful |
| Capacitym²/h | 8.38 | 7.15 | 5.2 | 6.53 | 5.6 | 4 |
Scope of Application
The PT-1216 UV flatbed printer can truly realize the random placement of materials with high matching accuracy, meeting the production needs of various types of handicrafts, toys, badges, medals and other special-shaped products. The equipment is simple to operate, saves time and worry, reduces costs, saves energy and is environmentally friendly, and can easily meet the fast and precise printing needs of toys, manicure, acrylic, 3C digital and other industries.
