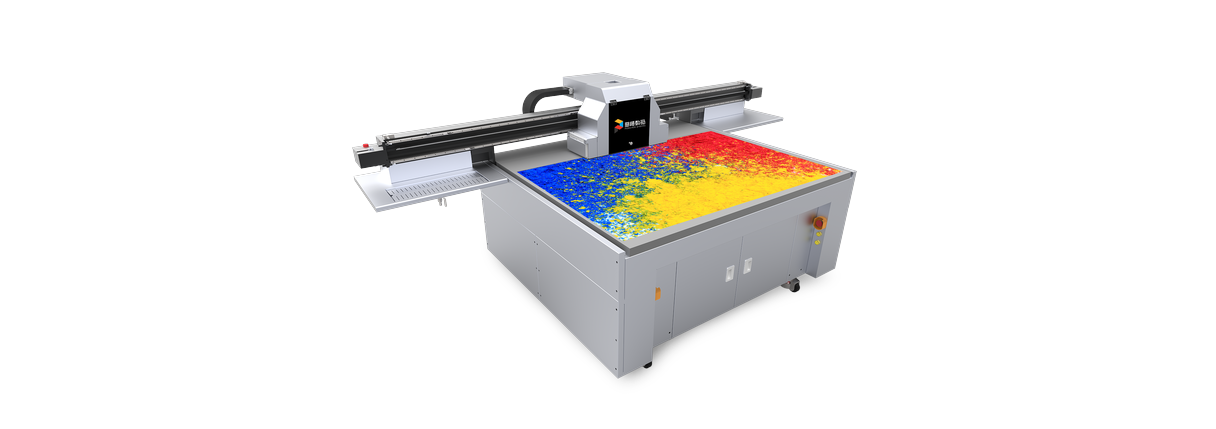

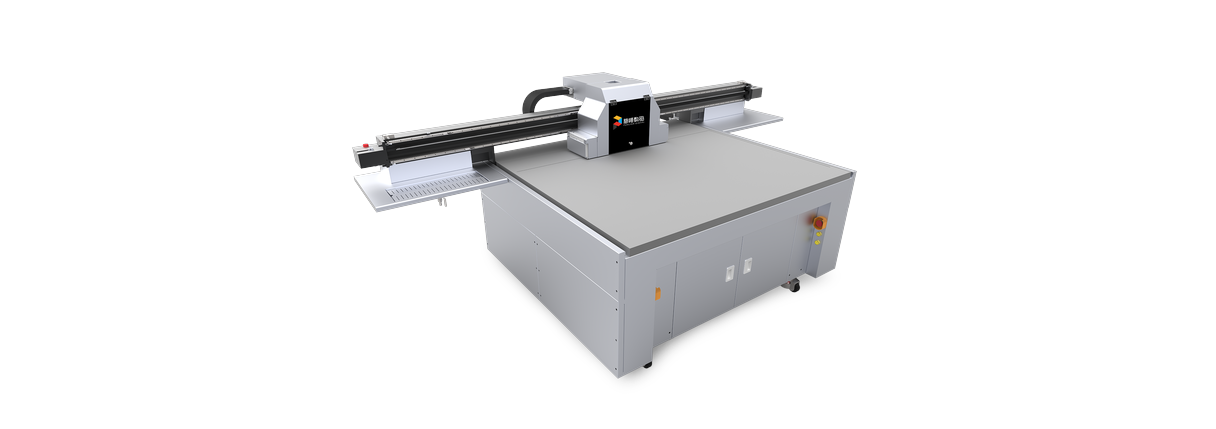

PT-1610 UV flatbed printer

Product Introduction

PT-1610 UV flatbed printer is a multi-functional digital inkjet printer. It is composed of imported fully digital servo motor units, imported linear guide rails and other high-tech accessories. It has intelligent control functions, is easy to operate, and can be configured with visual positioning functions to achieve intelligent and precise positioning printing.

Product Highlights

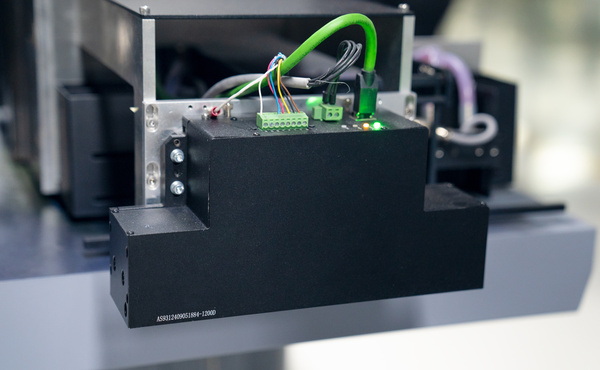

CCD intelligent visual positioning

01. CCD intelligent visual positioning

1200dpi high-precision positioning, efficient automation, high flexibility and compatibility

High-precision printing

02. High-precision printing

720*900dpi/720*1200dpi, 1:1 image output without distortion

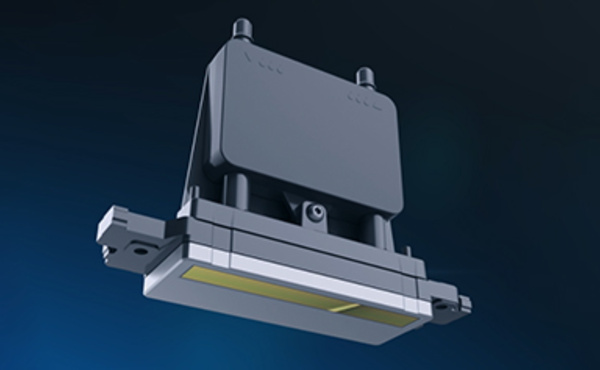

Personalized customization

03. Personalized customization

Ricoh GEN5/Ricoh GEN6 printheads are optional, and the printing picture is delicate and high-definition.

Intelligent feathering mode

04. Intelligent feathering mode

Optimize the printing effect, making the image smoother and more delicate

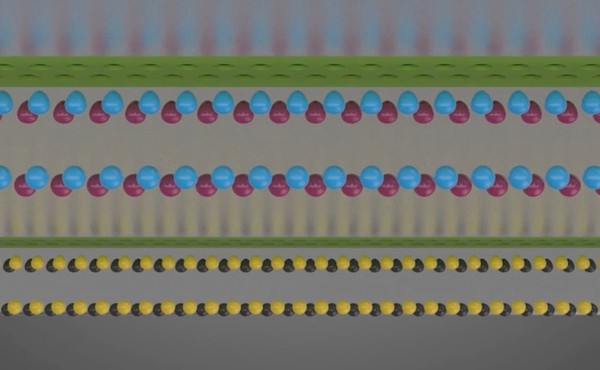

Variable droplet printing

05. Variable droplet printing

Meet the picture density requirements and make the layers more uniform

White ink circulation stirring function

06. White ink circulation stirring function

Prevent ink precipitation and ink path clogging, extend equipment life and improve efficiency

Technical Specifications

Parameter name Technical configuration Parameter name Technical configuration
Nozzle configuration 3-8 nozzles (standard 3 GEN5/GEN6 nozzles optional) Lifting method Ink truck lifting + automatic height measurement
Function configuration CCD intelligent visual positioning (optional) Cross beam model: 300dpi/600dpi Front model: 1200dpi Movement style Dual Y-axis motors independently driven
Print size 1600x1000mm Ink type Imported UV environmentally friendly soft ink/hard ink/neutral ink (VOC-free)
Print resolution 720x900dpi/720x1200dpi Ink color C/M/Y/K/LC/LM/W/V
printing technology variable dot printing Ink capacity 1.5L
Ink supply system Automatic ink supply system Platform size 1700x1600mm
Negative pressure system Negative pressure automatic adjustment system Overall dimensions 3340x1600x1420mm
RIP software Colorgate Environmental requirements Temperature 18~26℃, humidity 20%~80%RH
operating system WVindows7 Ultimate 64-bit Power requirements AC220V 50/60HZ
X'Y/Z axis motor X-axis: linear/servo motor Y-axis: servo motor Z-axis: stepper motor Maximum power 5000W (including suction fan power 1500W)
platform Suction platform Equipment net weight 1000kg
Curing method Water-cooled (double lamp) LED curing

Printing speeds corresponding to the standard-equipped printheads

Accuracy Number of PASS high speed medium speed low speed
720*900dpi
720*1200dpi
6PASS 12 square meters/hour 11 square meters/hour 9 square meters/hour
8PASS 10 square meters/hour 8 square meters/hour 6 square meters/hour
12PASS 7 square meters/hour 6 square meters/hour 5 square meters/hour

Scope of Application

The PT-1610 UV flatbed printer can be configured with a visual positioning function to achieve intelligent and precise positioning printing, solving problems such as difficulty in printing positioning of special-shaped products and displacement of the printing screen. The machine is durable and operates intelligently, and can easily meet the fast and precise printing needs of leather, silicone, packaging, wine bottles and other industries.
