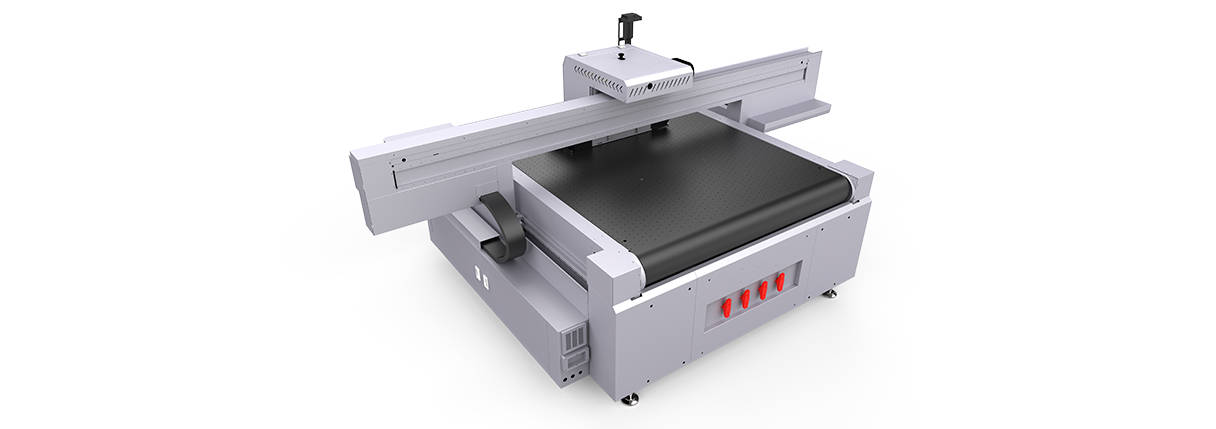

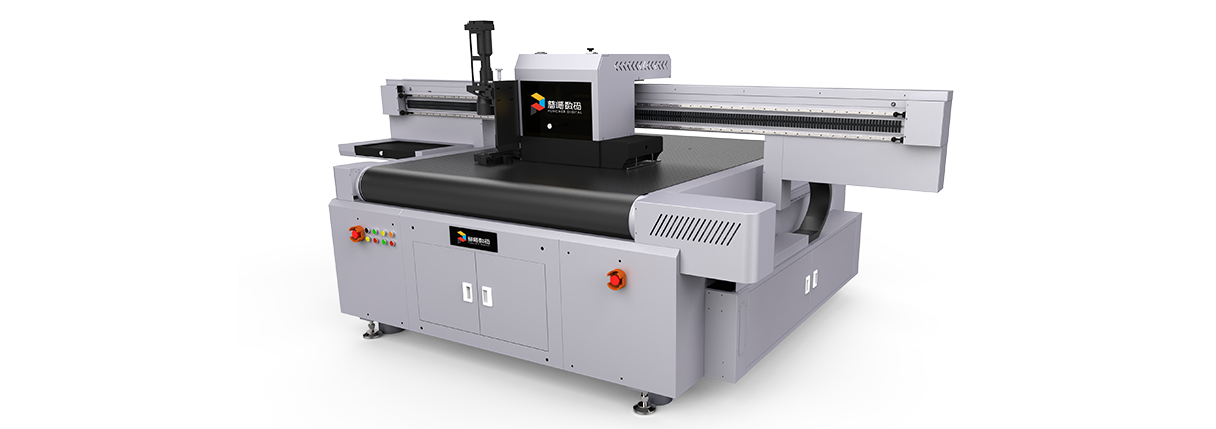

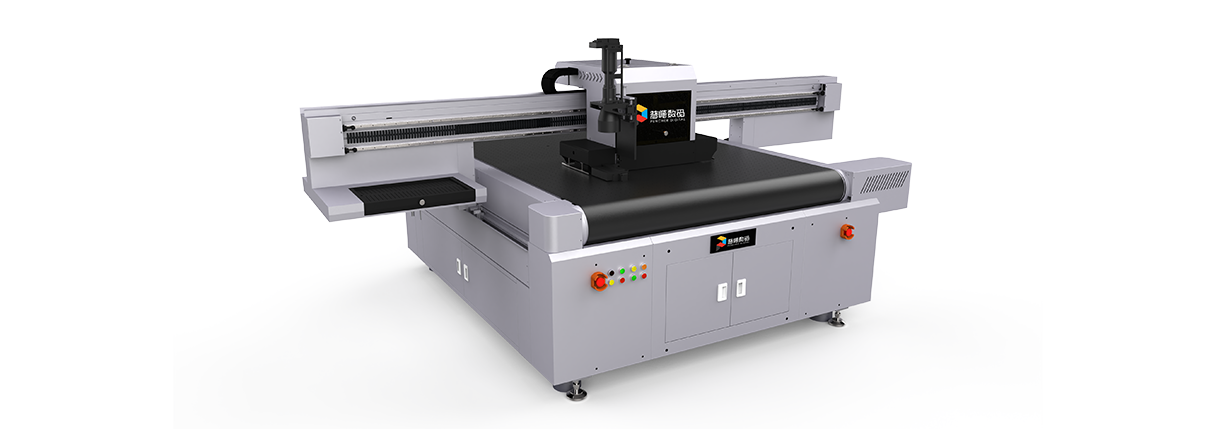

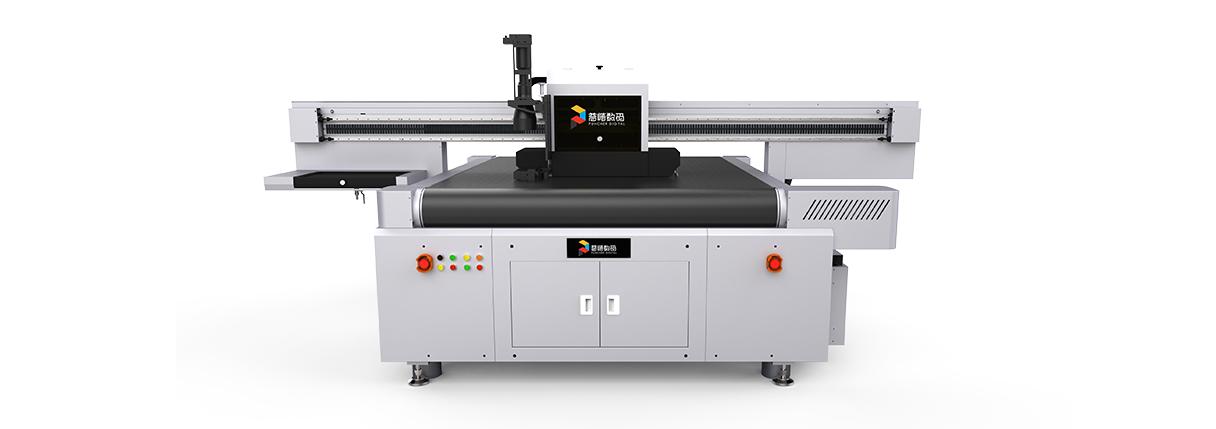

PT-1620-H UV flatbed printer

Product Introduction

PT-1620-H is a UV flatbed printer equipped with self-developed integrated vision software: printing software + RIP software + CCD intelligent visual positioning software; it has a scanning-while-printing mode, which is faster in timeliness, visual scanning from completion to printing, data processing speed is faster, and the equipment has both high precision and high speed.

Product Highlights

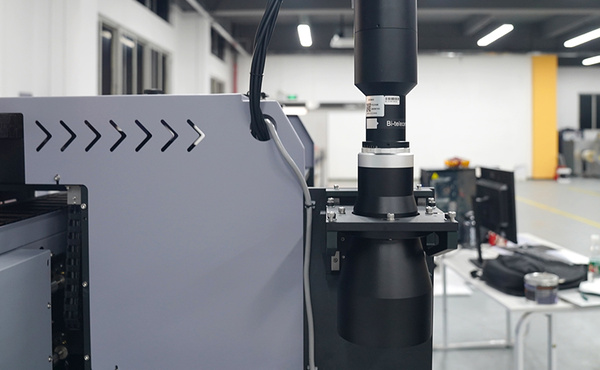

8K camera + high-precision coaxial light source

01. 8K camera + high-precision coaxial light source

Realize high-precision image collection, improve detection accuracy, and can be adapted to products of different materials (1200dpi)

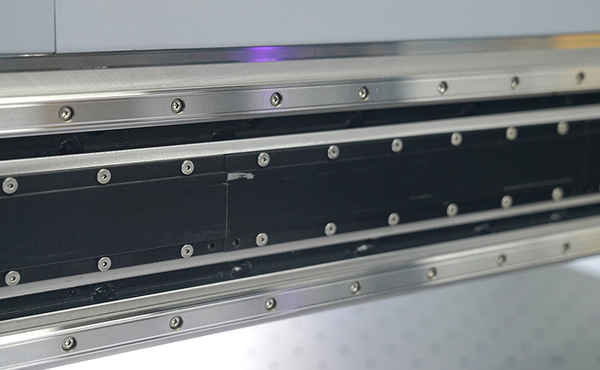

X, Y-axis magnetic levitation three-linear motor + metal grating 1μm

02. X, Y-axis magnetic levitation three-linear motor + metal grating 1μm

The three-linear motor is paired with a 1um metal grating, which provides faster response and higher repeatability positioning accuracy.

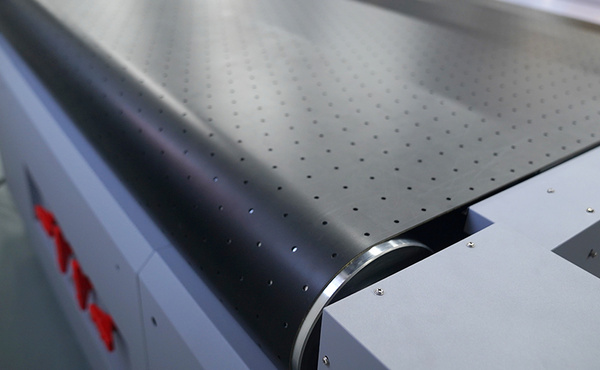

Equipment equipped with conveyor belt

03. Equipment equipped with conveyor belt

Automation: Reduce labor and improve automation. Efficiency: Continuous and stable transmission, speed up production. Accuracy: Synchronous feeding and printing to ensure accurate positioning of content

Technical Specifications

Parameter name Technical configuration Parameter name Technical configuration
Device model PT-1620-H File type TIFF (RGB&CMYK), BMP, PDF, EPS, JPEG, etc.
Print size 1600mm * unlimited Ink system Continuous ink supply / Capacity 1000ml / Two-level constant temperature and constant pressure ink supply / Intelligent ink stirring
Equipment net weight 1650KG Ink type Imported UV environmentally friendly soft ink or hard ink (VOC-free)
Nozzle type Ricoh industrial printhead GEN5/GEN6 Ink color C, M, Y, K, Lc, Lm, W, V (optional)
Printing accuracy 635900/6351200dpi RIP software Colorgate
CCD intelligent visual positioning Automated system detection and positioning, scanning and printing, high-precision 8K line scan camera, high-precision coaxial light source Equipment size Length, width and height: 365024201900mm
print height 0-150mm (can be customized) Power requirements AC220V (±10%) 50/60HZ 7000W (including blower 3000W)
X, Y drive mode Adopting (linear motor) magnetic levitation drive method, faster speed response and higher repeat positioning accuracy Data interface High-speed USB3.0 transmission interface
X, Y axis drive Linear motor + metal grating (1μm) operating system Windows 10 Ultimate 64-bit
Lift function Intelligent ink truck lifting, electronic automatic/manual intelligent sensor detection and height adjustment working environment Independent, clean, low-dust, low-light, well-ventilated workspace
Ambient temperature: 18℃~30℃(64℉~86℉)
Relative humidity: 30% ~ 70% (no condensation)
Applicable media Badges, nameplates, cards, acrylic, wooden boards, handicrafts, etc.

Scope of Application

This is a multi-functional digital inkjet printer with simple operation and intelligent control functions, which can easily meet the fast and precise printing needs of leather, silicone, packaging, wine bottles and other industries. The visual positioning function can be configured to realize intelligent and precise positioning printing, solving problems such as difficulty in printing positioning of special-shaped products and displacement of the printing screen.
