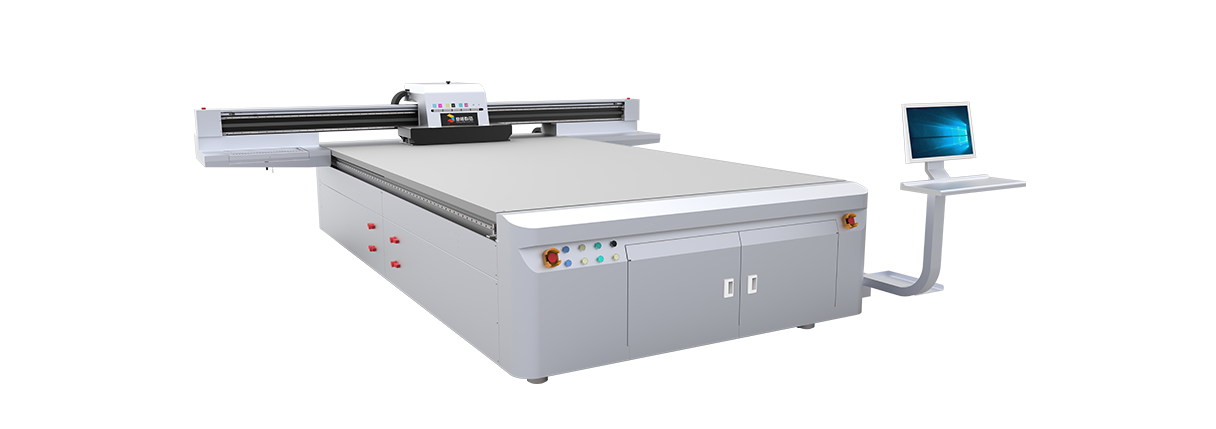

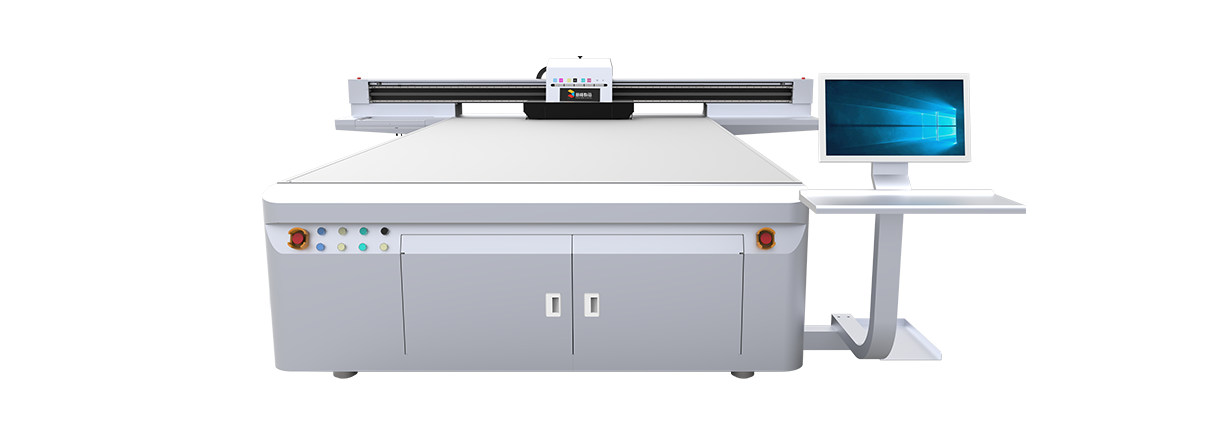

PT-2033 UV flatbed printer

Product Introduction

The PT-2033 UV flatbed printer adopts a motion mode of acceleration start and deceleration stop. It has the advantages of large format of 3300mm and multi-function. This machine mainly uses a double negative pressure system as the dominant ink supply and has stable performance. It is a comprehensive multi-functional industrial service equipment.

Product Highlights

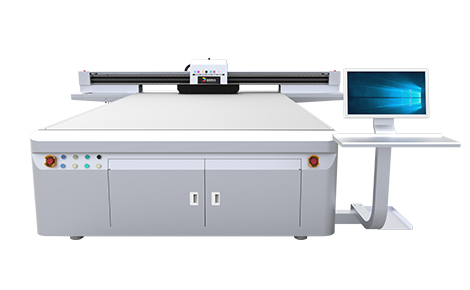

Extra wide printing format

01. Extra wide printing format

3300×2000mm, high production efficiency

High-precision printing

02. High-precision printing

720*1200dpi printing accuracy, delicate and rich colors

Personalized customization

03. Personalized customization

Ricoh GEN5/Ricoh GEN6 printheads are optional, and the printing picture is delicate and high-definition.

Intelligent feathering mode

04. Intelligent feathering mode

Optimize the printing effect, making the image smoother and more delicate

Variable droplet printing

05. Variable droplet printing

Meet the picture density requirements and make the layers more uniform

Intelligent control

06. Intelligent control

Intelligent control of each system ensures operational stability

Technical Specifications

Parameter name Technical configuration Parameter name Technical configuration
Nozzle configuration Standard configuration: 3-8 GEN5 nozzles (GEN6 nozzles are optional) Lifting method Ink truck lifting + automatic height measurement
Print size 2000x3300mm Movement style Dual Y-axis motors independently driven
Print resolution 720x900dpi/720x1200dpi Ink type Imported UV environmentally friendly soft ink/hard ink/neutral ink (VOC-free)
printing technology variable dot printing Ink color C/M/Y/K/LC/LM/W/V
Ink supply system Automatic ink supply system Ink capacity 1.5L
Negative pressure system Negative pressure automatic adjustment system Platform size 2100x3400mm

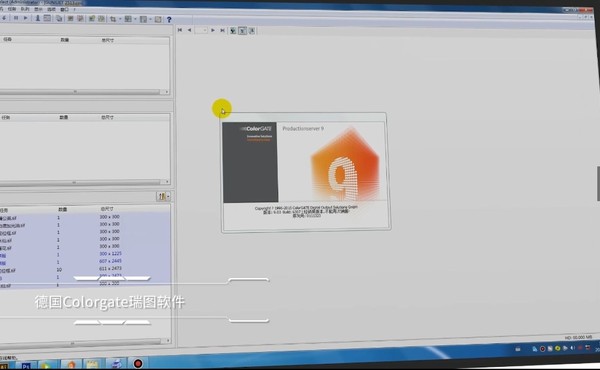

RIP software Colorgate Overall dimensions 4670x3830x1320mm
operating system Windows7 Ultimate 64-bit Environmental requirements Temperature 18~26℃, humidity 20%~80% RH
X/Y/Z axis motor X-axis: linear/servo motor Y-axis: servo motor Z-axis: stepper motor Power requirements AC220V 50/60HZ
platform Suction platform Maximum power 7000W (including suction fan power 3000W)
Curing method Water cooled (dual lamp) LED curing Equipment net weight 1850kg

Printing speeds corresponding to the standard-equipped printheads

Accuracy Pass number high speed medium speed low speed
720*900dpi/720*1200dpi 6PASS 14 m2/hour 12 m2/hour 10 m2/hour
8PASS 12 m2/hour 10 m2/hour 7 m2/hour
12PASS 8 m2/hour 6 m2/hour 5 m2/hour

Scope of Application

The PT-2033 UV flatbed printer has a humanized structural design, is simple and convenient to maintain, and is suitable for a wide range of fields. It can easily meet the fast and precise printing needs of ceramic tile, glass, wood, luggage and other industries.
