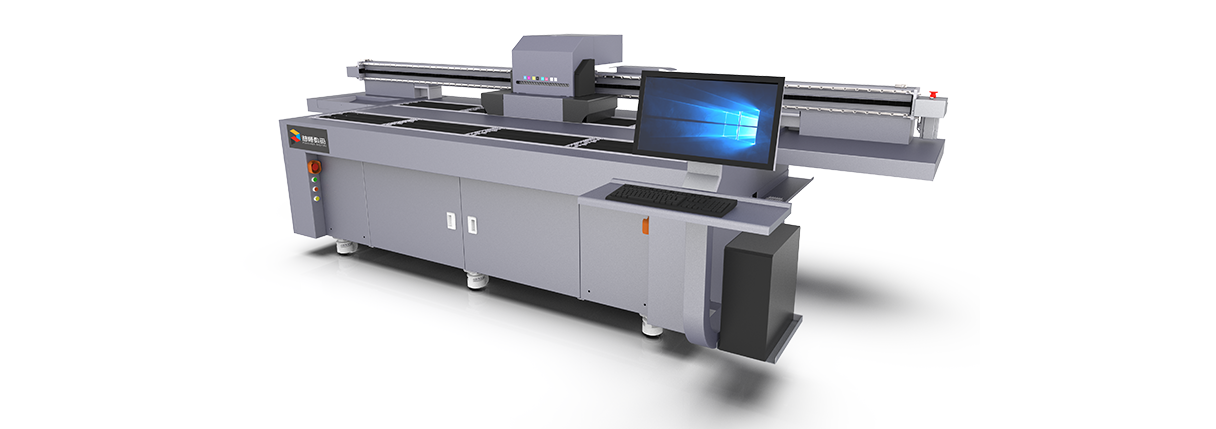

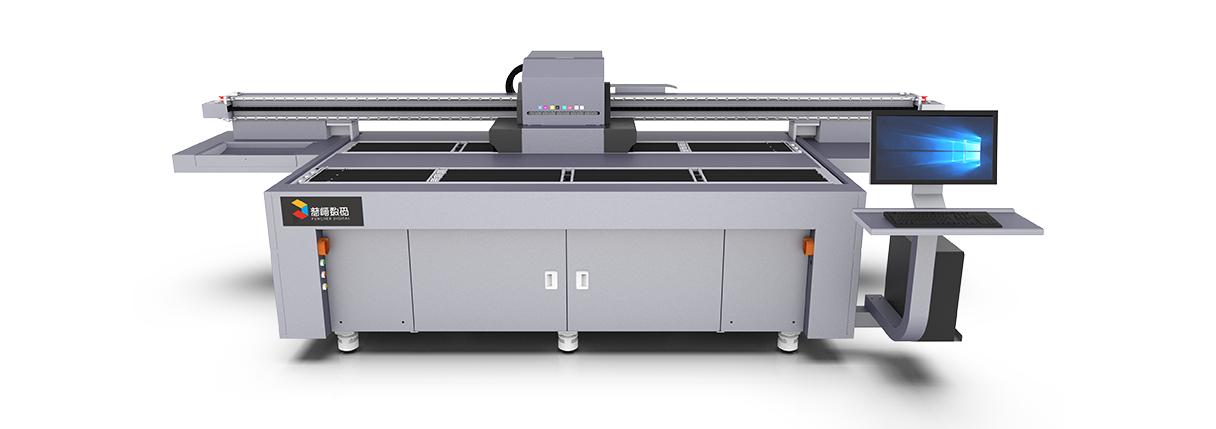

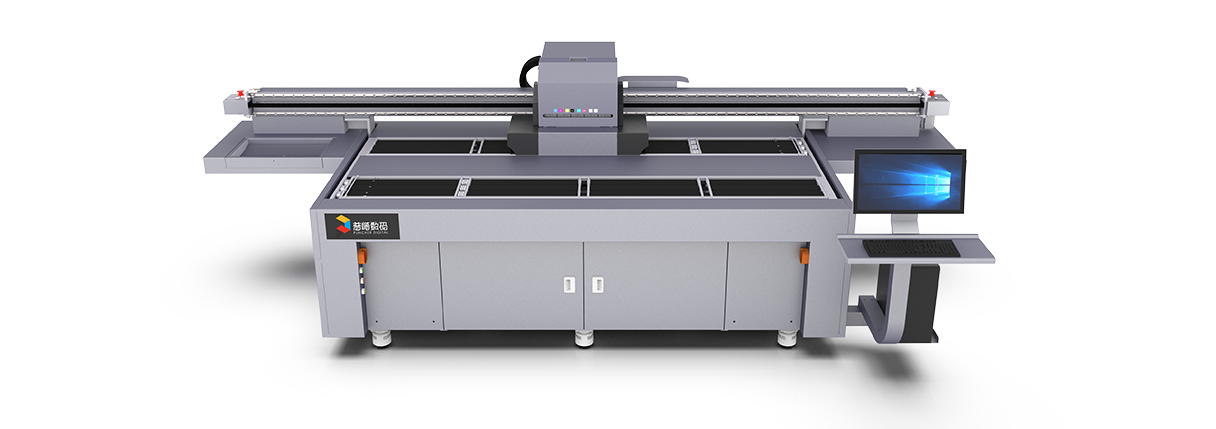

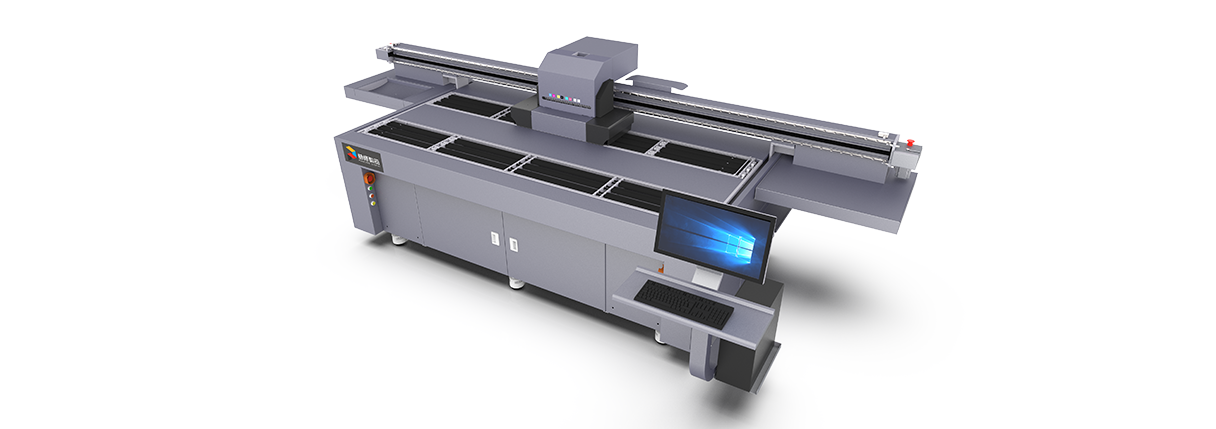

PT-2502 embedded cylinder printer
Product Introduction
The PT-2502 embedded cylindrical printer is equipped with an industrial-grade Ricoh G5i nozzle, and the picture is realistic and delicate. The equipment is user-friendly and uses two alternating printing stations at the front and rear to facilitate material storage and organization. The fixture can also be customized according to needs, which has the advantages of faster speed, higher precision, and higher output.
Product Highlights

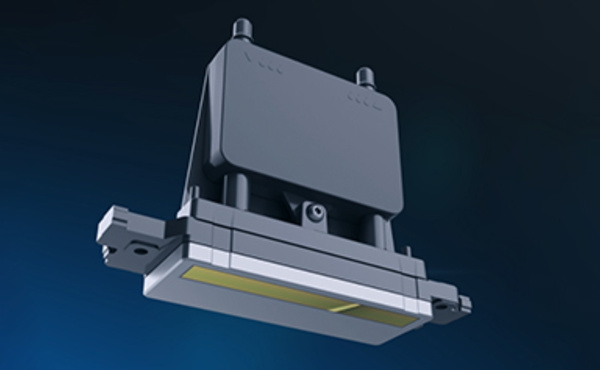

01. Industrial grade nozzle
Ricoh G5i printhead, minimum ink drop volume 3.5PL, can be configured with 2-9 printheads

02. Intelligent feathering mode
Optimize the printing effect, making the image smoother and more delicate

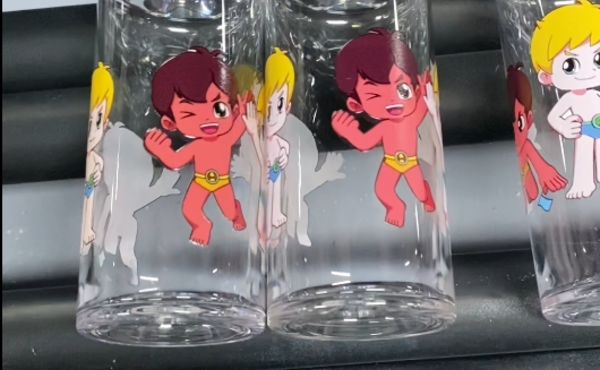

03. High-precision printing
Resolution 600×1800dpi/600×3600, white varnish simultaneous output

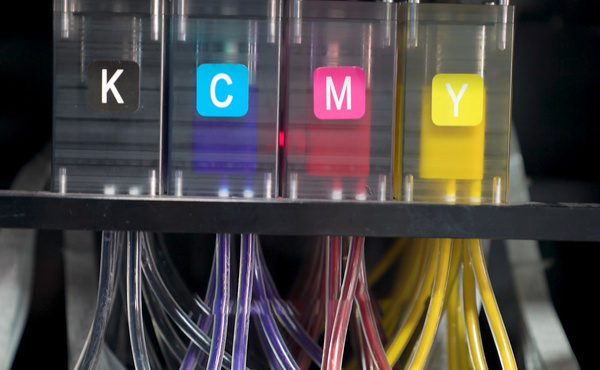

04. Energy saving and environmental protection
Imported environmentally friendly UV ink to reduce waste generation and energy consumption

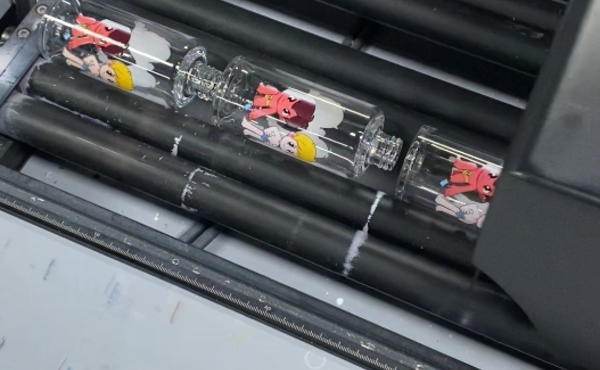

05. Personalized customization
The fixture can be customized and replaced according to different product diameters to ensure printing accuracy.

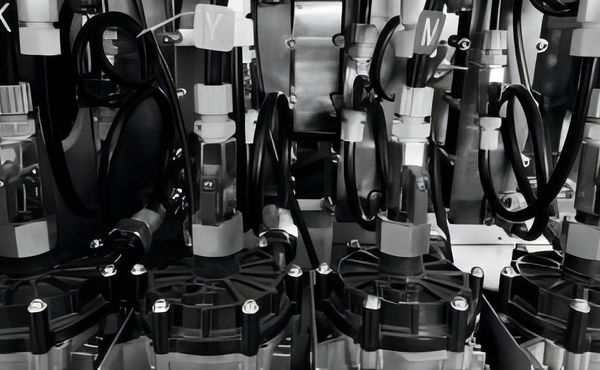

06. White ink circulation stirring function
Prevent ink precipitation and ink path clogging, extend equipment life and improve efficiency
Technical Specifications
| Parameter name | Technical configuration | Parameter name | Technical configuration |
| Nozzle configuration | 2/4/6/9 Ricoh G5i printheads | Lifting method | Car lift |
| work station | 2500mm×πd (diameter 3.14) 2 stations | Movement style | Dual Y-axis motors for independent motion + rotary axis |
| Print resolution | 600×1800dpi/600×3600dpi | Rated voltage/power | AV220V/3500W |
| printing technology | Variable dot printing grayscale | Ink type | Imported UV environmentally friendly soft ink/neutral ink/hard ink (VOC-free) |
| Ink supply system | Automatic ink supply system | Curing method | Water-cooled LED lamp curing |
| RIP software | Colorgate | Overall dimensions | 4330mm×1425mm×1335mm |
| Negative pressure system | Automatically adjust negative pressure system | Environmental requirements | Temperature: 25℃ Humidity: 50% |
| operating system | Windows7 Ultimate 64-bit | Print range | 2500mm×πd (diameter 3.14) |
| X/Y/Z axis motor | Original two sets of one-to-three motors (moving axis + 3 sets of rotating axes) | Printing speed | 1000mm/s |
| fixture | Customizable | Equipment net weight | 1250kg |
Scope of Application

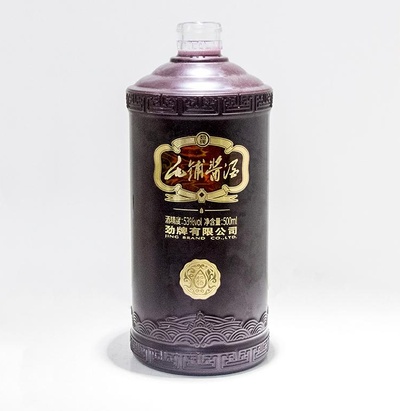

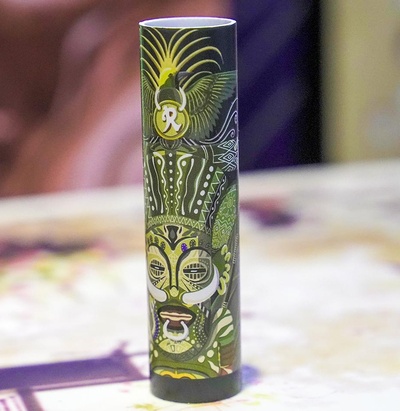

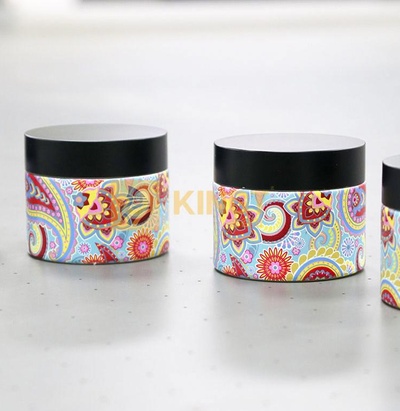

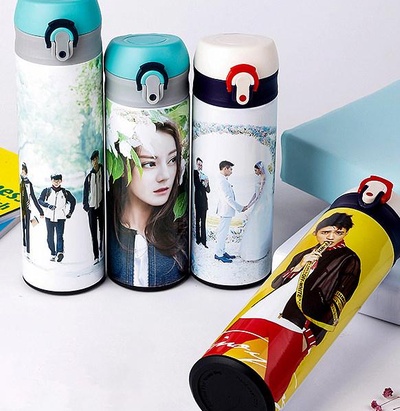

PT-2502 embedded cylinder printer has stable performance. Embedded printing makes cylinder printing pictures more delicate and delicate. It is widely used in printing various cylindrical materials such as cosmetic bottles, wine bottles, glasses, thermos cups, lipstick tubes and so on.
