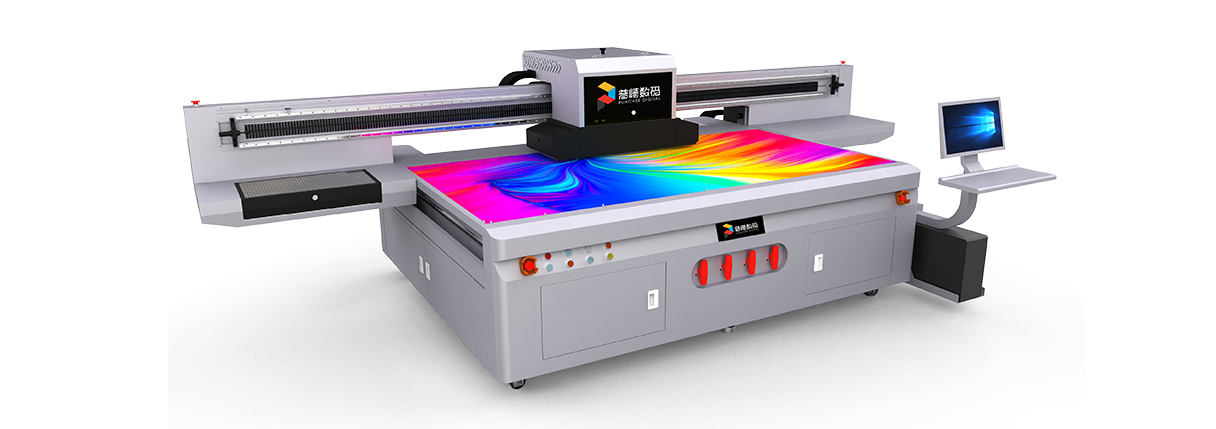

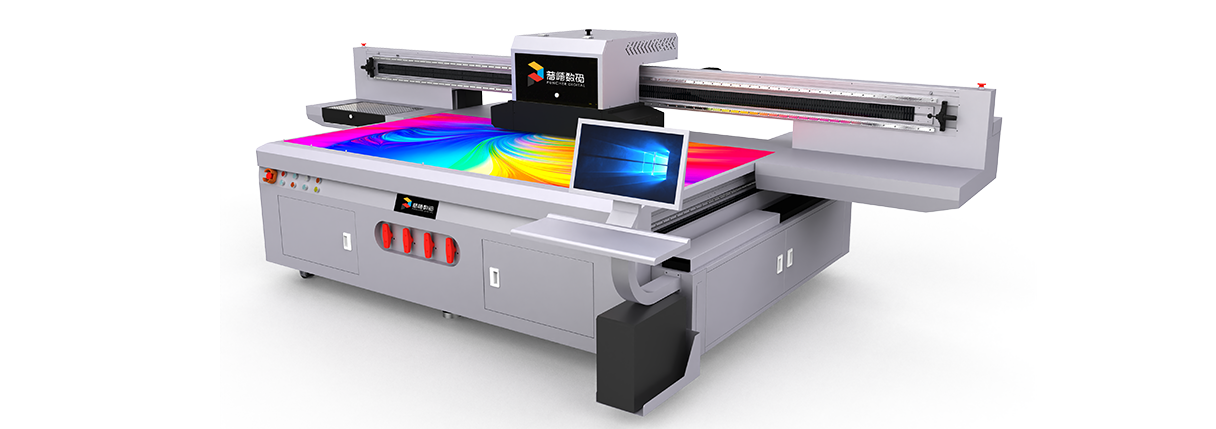

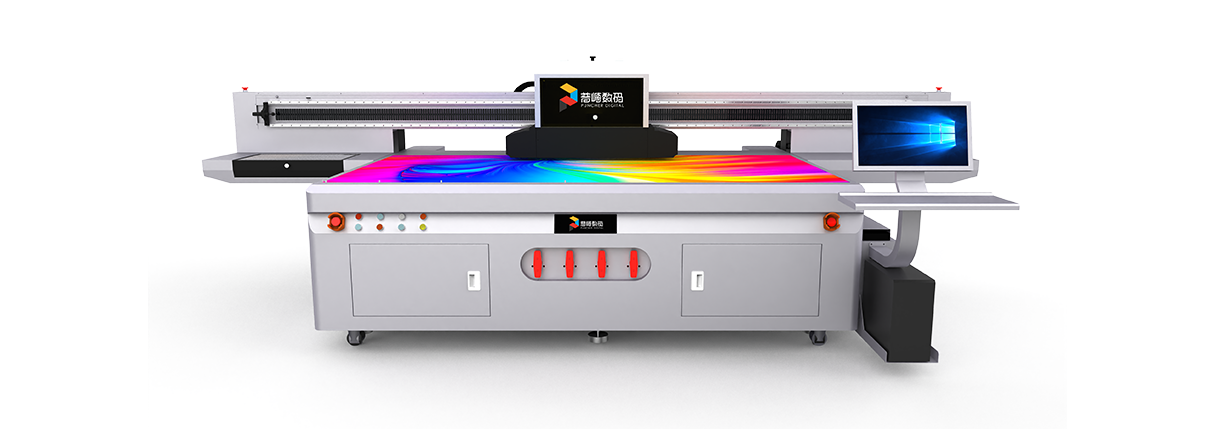

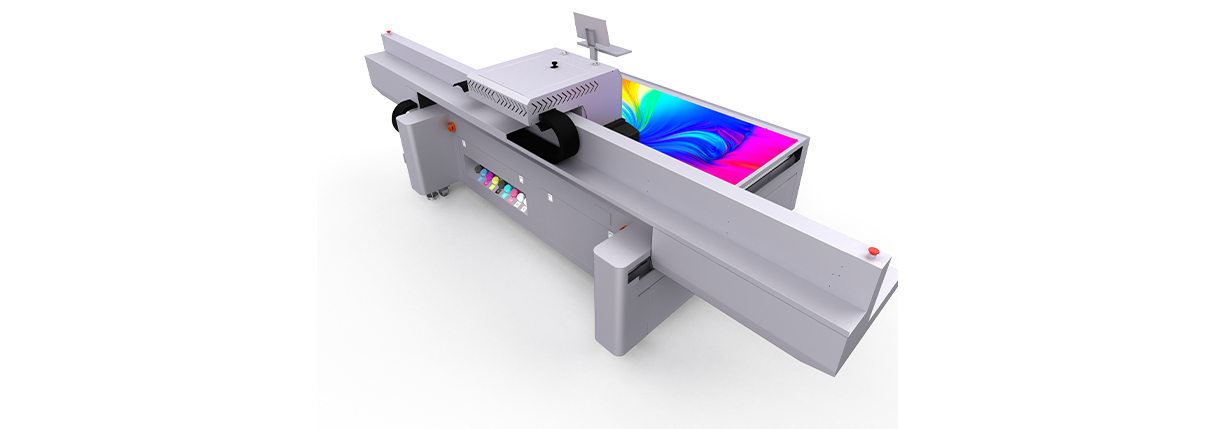

PT-2513-Hi UV flatbed printer

Product Introduction

The PT-2513-Hi UV flatbed printer has the advantages of high precision, high efficiency and high height difference. It can easily print detailed, colorful images and text on the surface of various materials. With its excellent printing accuracy, efficiency and material compatibility, it accurately meets the market's stringent requirements for high-quality printing.

Product Highlights

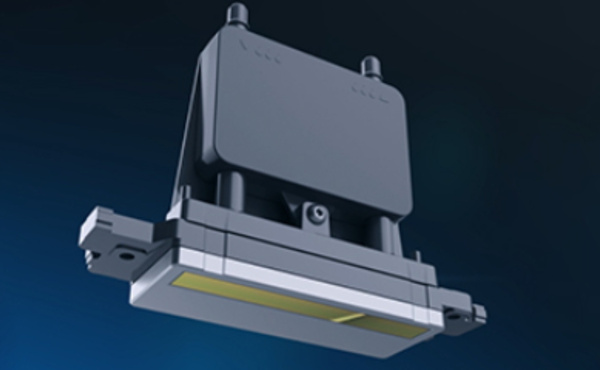

Industrial grade Fuji nozzle SF600

01. Industrial grade Fuji nozzle SF600

High precision, high efficiency, high injection power

726*1200dpi/726*1800dpi

02. 726*1200dpi/726*1800dpi

The smallest ink drop 4PL, the image is delicate and clear

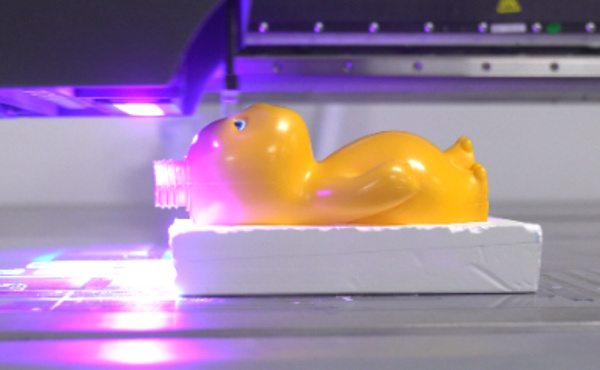

30mm high drop printing

03. 30mm high drop printing

Compatible with high-drop printing, better printing effect

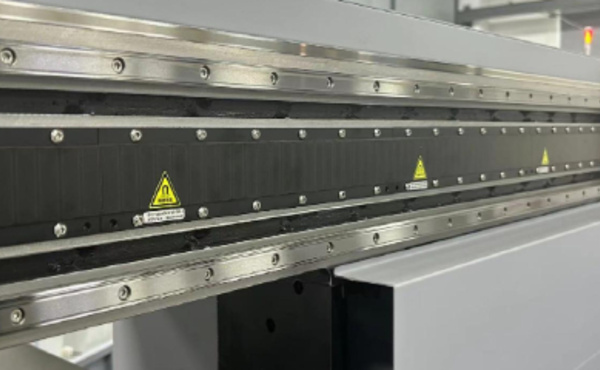

Magnetic levitation linear motor drive

04. Magnetic levitation linear motor drive

Faster response and higher repeat positioning accuracy

Increased production capacity by nearly 50%

05. Increased production capacity by nearly 50%

Excellent flat printing effect, effectively increasing production capacity by 50%

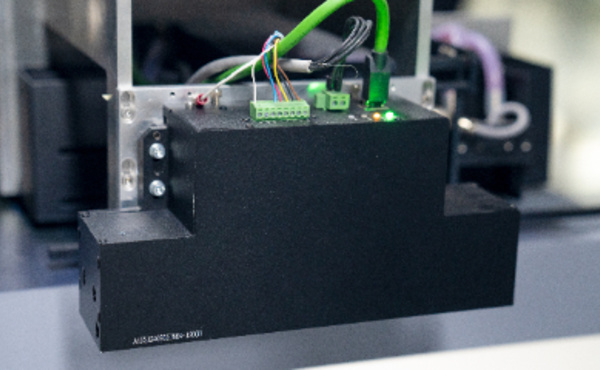

CCD intelligent visual positioning

06. CCD intelligent visual positioning

1200dpi high-precision positioning, efficient automation, high flexibility and compatibility

Technical Specifications

Parameter name Technical configuration Parameter name Technical configuration
Device model PT-2513-Hi Applicable media 3C digital, glass, acrylic, wood board, ceramic tile, metal plate, PVC board, corrugated board, etc.
Print size 2500*1300mm File type TIFF (RGB&CMYK), BMP, PDF, EPS, JPEG, etc.
Nozzle type Fuji nozzle SF600 Ink system Ink circulation control system / capacity 1500mL / two-level constant temperature and constant pressure ink supply / intelligent ink stirring
Nozzle parameters Ink drop size 4PL, effective width 64.2mm, internal circulation in the nozzle, built-in heating Ink type Imported UV environmentally friendly neutral ink (VOC-free)
Printing accuracy 726*1200dpi/726*1800dpi RIP software Colorgate/ONYX
Color configuration CMYK+W/CMYKLcLm+W Power requirements AC220V (±10%) 50/60HZ P:7000W (including blower 3000W)
print height 0-150mm (can be customized) Equipment net weight 1650KG
X, Y axis drive Adopting (linear motor) magnetic levitation drive mode, faster speed response and higher repeat positioning accuracy Equipment size 467022501450mm
X-axis drive Linear motor + metal grating (1μm) Environmental requirements Independent, clean, low-dust, low-light, well-ventilated workspace
Y-axis drive Linear motor + 1μm magnetic scale Ambient temperature: 18℃~30℃(64℉~86℉)
Lift function Intelligent ink truck lifting, electronic automatic/manual intelligent sensor detection and height adjustment Relative humidity: 30% ~70% (no condensation)

Printing speeds corresponding to the standard-equipped printheads

Accuracy Pass number production mode fine mode
726*1200dpi/726*1800dpi 4PASS 30 square meters/hour 18 square meters/hour
6PASS 25 square meters/hour 13 square meters/hour

Scope of Application

The PT-2513-Hi UV flatbed printer is very suitable for personalized printing, meeting the fine printing needs of advertising signs, 3C digital, electronic panels, handicrafts, cosmetics, bags, gift customization, home decoration (glass, ceramic tiles, wooden boards, metal sheets, etc.) and other industries.
