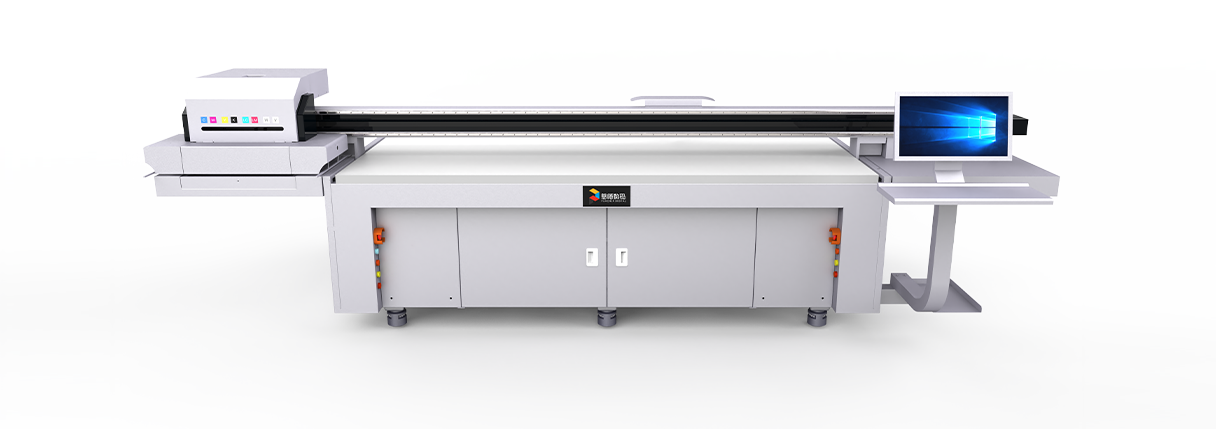

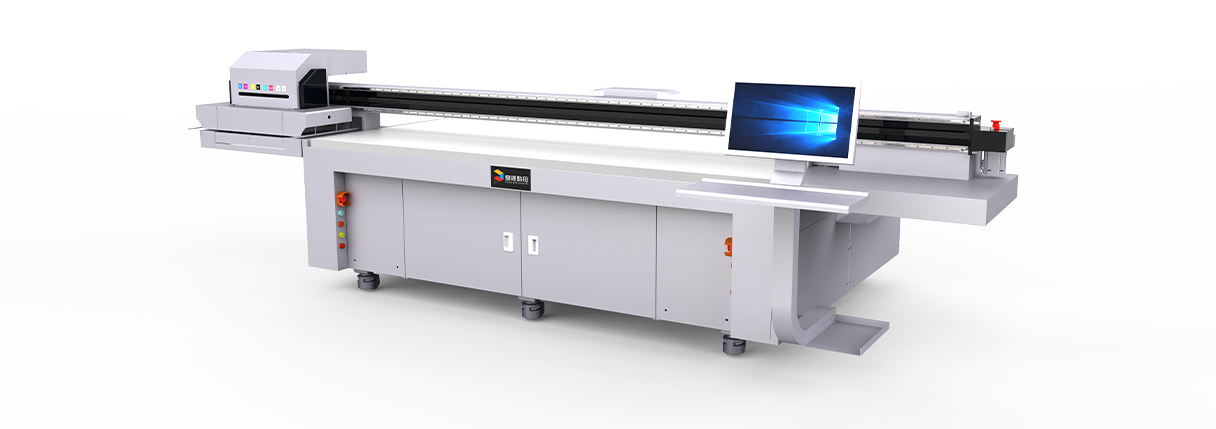

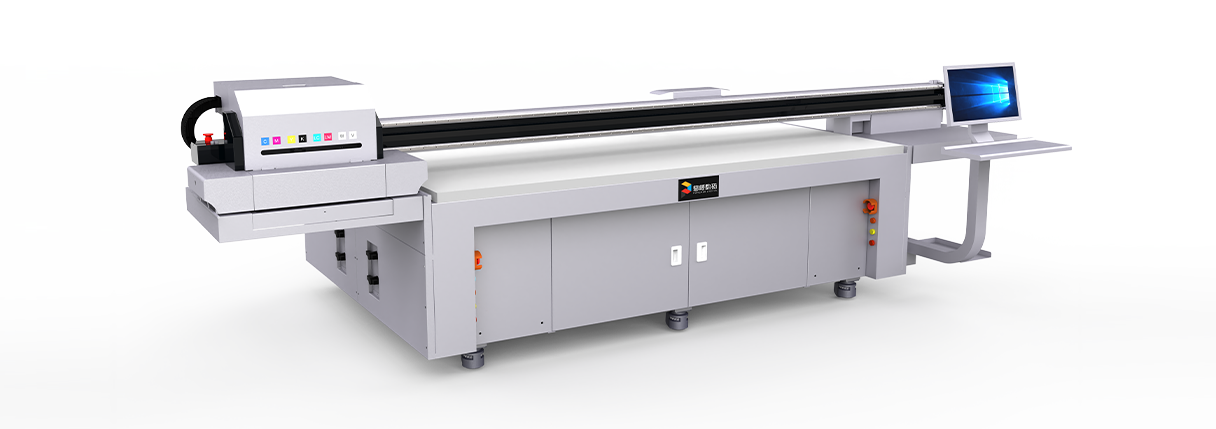

PT-2513 UV flatbed printer

Product Introduction

PT-2513 UV flatbed printer is widely used in many industries due to its characteristics of high-precision printing, large-format printing, efficient production, multi-material adaptability, environmental protection and energy saving. At the same time, its advanced technical configuration and simple operation and maintenance procedures also provide users with great convenience.

Product Highlights

Extra wide printing format

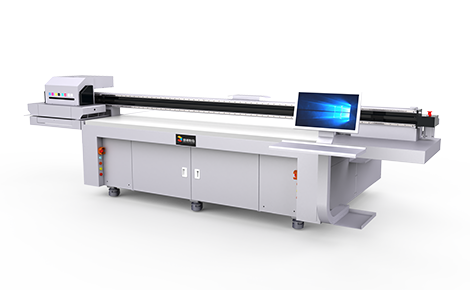

01. Extra wide printing format

2.5m×1.3m ultra-wide printing format, high production efficiency

Intelligent feathering mode

02. Intelligent feathering mode

Optimize the printing effect, making the image smoother and more delicate

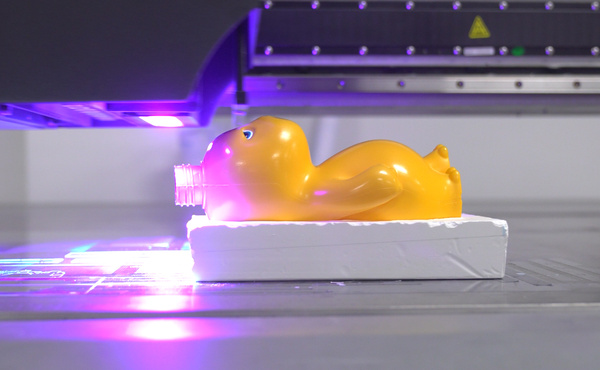

print height

03. print height

Support 100mm, height can be customized

Personalized customization

04. Personalized customization

Ricoh GEN5/Ricoh GEN5S/Ricoh GEN6 printheads are optional, minimum ink drop volume 7PL/2.5PL/5PL

RIP color management

05. RIP color management

Ultra-wide color gamut, accurate color matching, and true restoration of picture colors

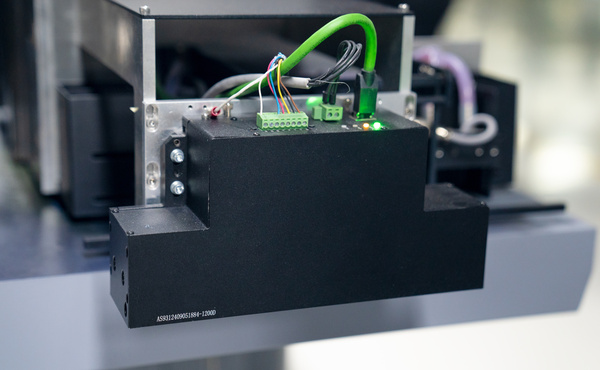

CCD intelligent visual positioning

06. CCD intelligent visual positioning

1200dpi high-precision positioning, efficient automation, high flexibility and compatibility

Technical Specifications

Parameter name Technical configuration Parameter name Technical configuration
Nozzle configuration 3-8 Ricoh GEN5/GEN5S nozzles are optional (3 GEN5 nozzles are standard) Lifting method Ink truck lifting + automatic height measurement
Print size 2500x1300mm Movement style Dual Y-axis motors independently driven
Print resolution 720x900dpi / 720x1200dpi Ink type Imported UV environmentally friendly soft ink/neutral ink/hard ink
printing technology variable dot printing Ink color C/M/Y/K/LC/LM/W/V
Ink supply system Automatic ink supply system Ink capacity 1.5L
Negative pressure system Negative pressure automatic adjustment system Platform size 2600x2000mm
RIP software Colorgate Overall dimensions 4320x2520x1450mm
operating system Windows7 Ultimate 64-bit Environmental requirements Temperature: 18-26℃, humidity: 20%-80% RH
X/Y/Z axis motor X-axis: linear/servo motor Y-axis: servo motor Z-axis: stepper motor Power requirements AC220V 50/60HZ
platform Suction platform Maximum power 7000W (including suction fan power: 3000W)
Curing method Water-cooled (double lamp) LED lamp curing Equipment net weight 1350KG

Printing speeds corresponding to the standard-equipped printheads

Accuracy Pass number high speed medium speed low speed
720*900dpi
720*1200dpi
6PASS 15 square meters/hour 13 square meters/hour 10 square meters/hour
8PASS 13 square meters/hour 11 square meters/hour 9 square meters/hour
12PASS 11 square meters/hour 9 square meters/hour 8 square meters/hour

Scope of Application

The PT-2513 UV flatbed printer can be customized according to needs. It has intelligent operation functions, saves time and worry, reduces costs, saves energy and is environmentally friendly. It can easily meet the fast and precise printing needs of advertising, plastics, toys, handicrafts, etc.

Download Product Brochure

brochure

PT-2513 UV flatbed printer

2025-04

PDF - 637 KB

There is always a product that suits you,
At the same time, we can provide customized services according to your specific requirements

On the journey to create high-quality products for our customers, we always adhere to the original intention of being sincere, adapt to needs, and grow together with our customers.
