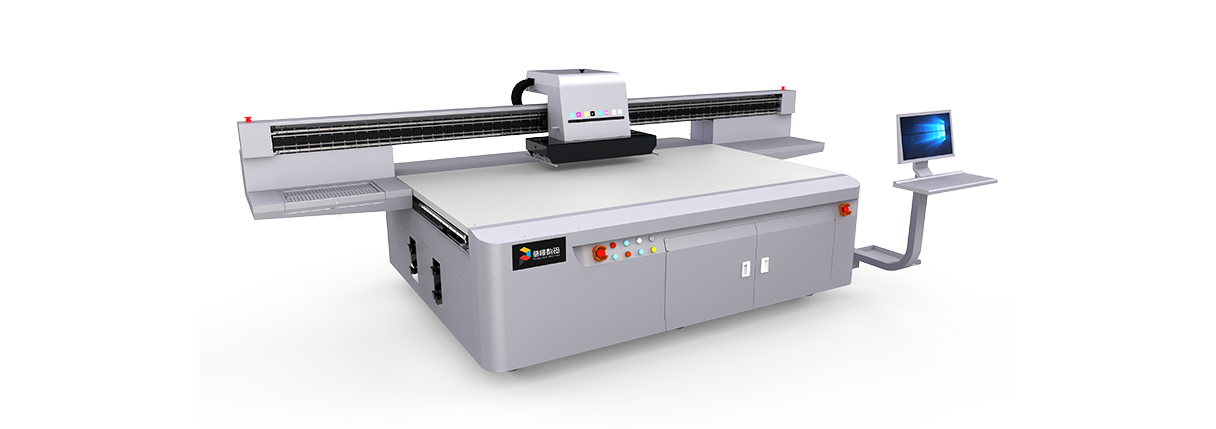

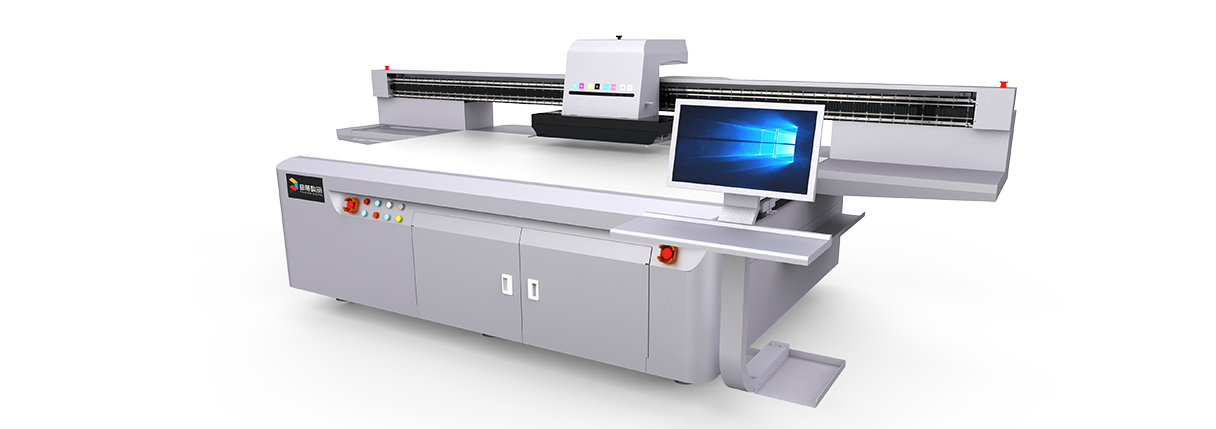

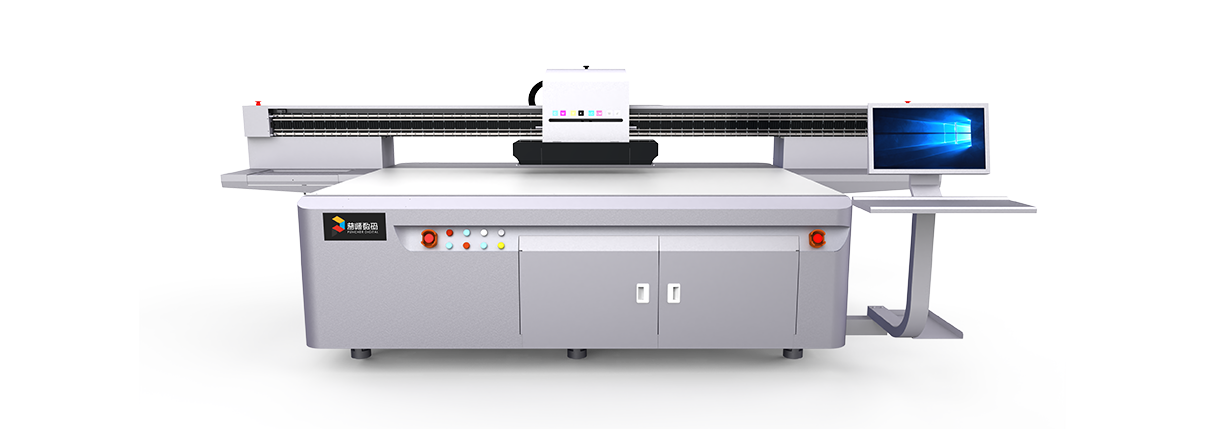

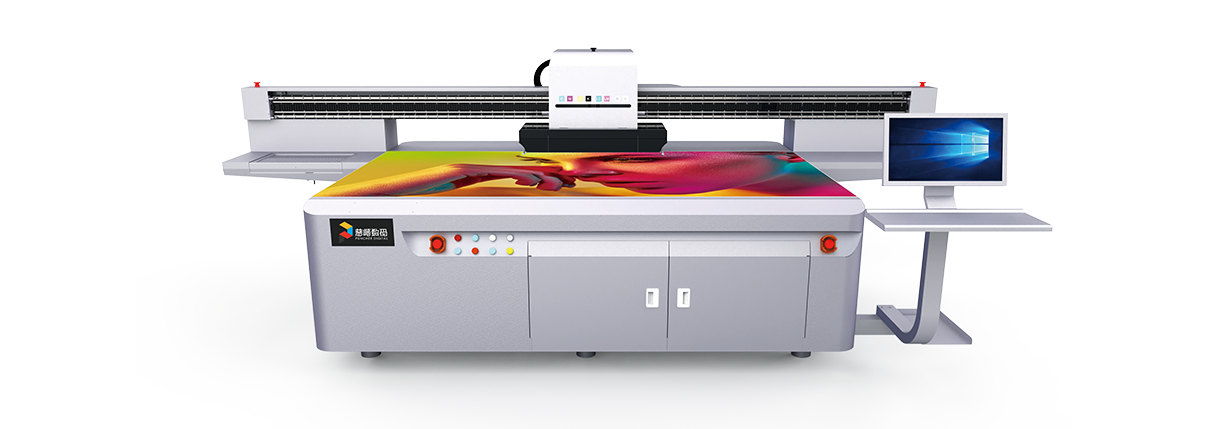

PT-2513-G6 UV flatbed printer

Product Introduction

PT-2513-G6 UV flatbed printer is widely used in many industries due to its high-precision printing, large-format printing, efficient production, multi-material adaptability, environmental protection and energy saving. At the same time, its advanced technical configuration and simple operation and maintenance procedures also provide users with great convenience.

Product Highlights

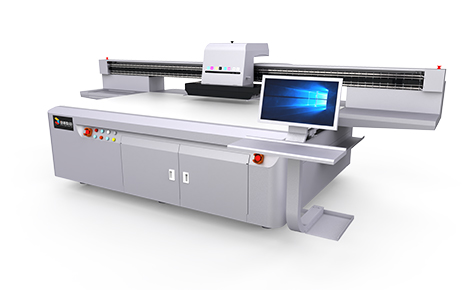

Extra wide printing format

01. Extra wide printing format

2.5m×1.3m ultra-wide printing format, high production efficiency

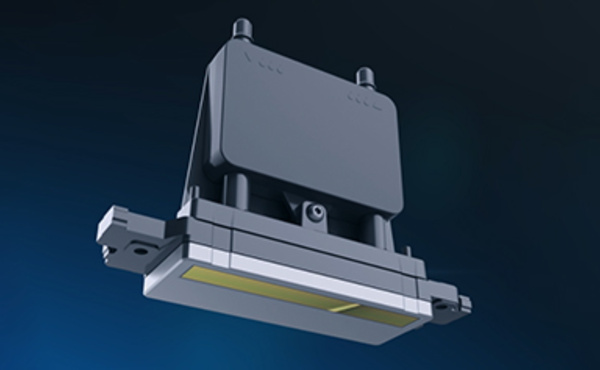

Ricoh G6 printhead

02. Ricoh G6 printhead

The smallest ink droplet is 5PL, the high ignition frequency is 50KHZ, and the performance is 30% higher than the G5 nozzle

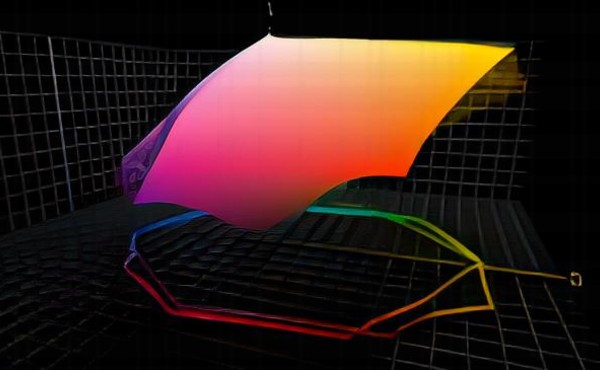

Intelligent feathering mode

03. Intelligent feathering mode

Optimize the printing effect, making the image smoother and more delicate

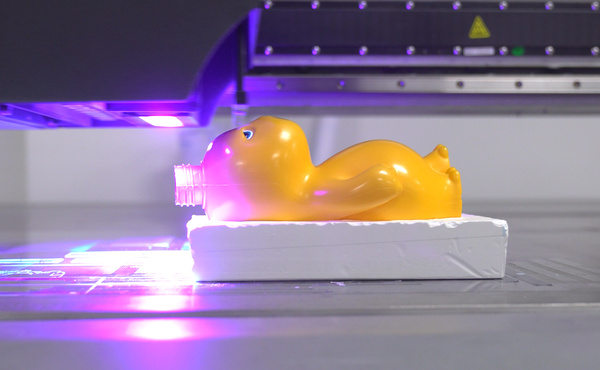

print height

04. print height

Can support 100mm printing height

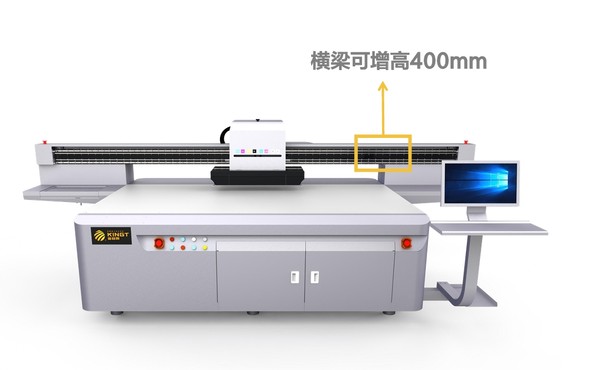

Personalized customization

05. Personalized customization

According to customer needs, the beam can be increased by 400mm

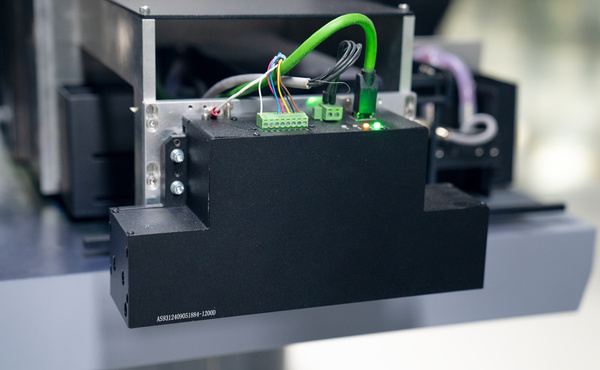

CCD intelligent visual positioning

06. CCD intelligent visual positioning

1200dpi high-precision positioning, efficient automation, high flexibility and compatibility

Technical Specifications

Parameter name Technical configuration Parameter name Technical configuration
Nozzle configuration 3-8 nozzles (standard configuration: 3 GEN6 nozzles) Lifting method Car lifting + automatic height measurement
Function configuration CCD intelligent visual positioning (optional) Crossbeam model: 300dpi/600dpi Front model: 1200dpi Movement style Dual Y-axis motors independently driven
Print size 2500x1300mm Ink type Imported UV environmentally friendly soft ink/neutral ink/hard ink
Print resolution 635x900dpi/635x1200dpi Ink color C/M/Y/K/LC/LM/W/V
printing technology variable dot printing Ink capacity 1.5L
Ink supply system Automatic ink supply system Platform size 2600x2000mm
Negative pressure system Negative pressure automatic adjustment system Overall dimensions 4350x2620x1450mm
RIP software Colorgate Environmental requirements Temperature: 18-26℃, humidity: 20%-80% RH
operating system Windows7 Ultimate 64-bit Power requirements AC220V 50/60HZ
X/Y/Z axis motor X-axis: linear motor Y-axis: servo motor Z-axis: stepper motor Maximum power 7000W (including suction fan power: 3000W)
platform Suction platform Equipment net weight 1350KG
Curing method Water-cooled (double lamp) LED lamp curing

Printing speeds corresponding to the standard-equipped printheads

Accuracy Pass number high speed medium speed low speed
635*900dpi/635*1200dpi 6PASS 20 square meters/hour 18 square meters/hour 16 square meters/hour
8PASS 17 square meters/hour 15 square meters/hour 13 square meters/hour

Scope of Application

PT-2513-G6 UV flatbed printer is widely used, with new technology and innovative applications, interpreting new processes for new color presentation, environmentally friendly and pollution-free; low clogging rate, strong wear resistance and high precision; it can easily meet the fast and precise printing needs of advertising, footwear, handicrafts, cosmetics, leather and other industries.
