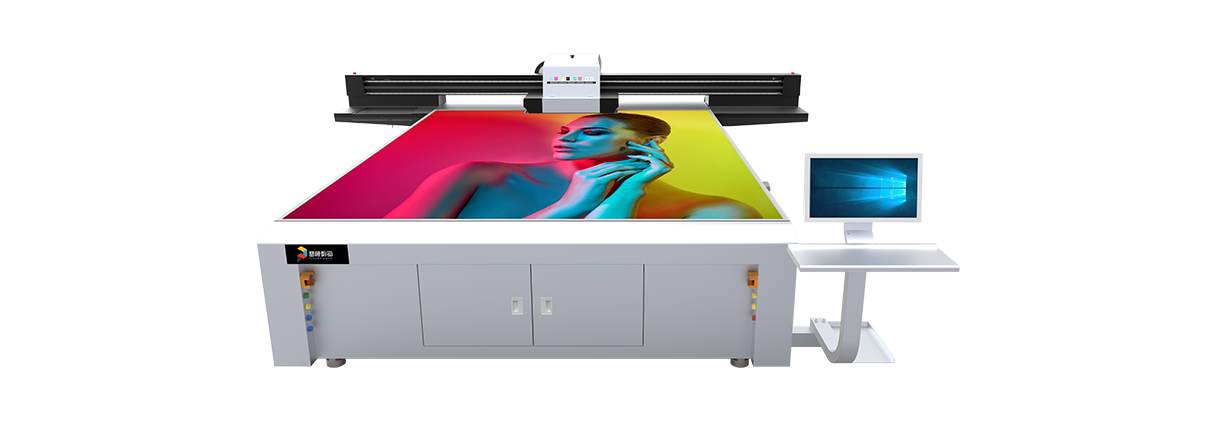

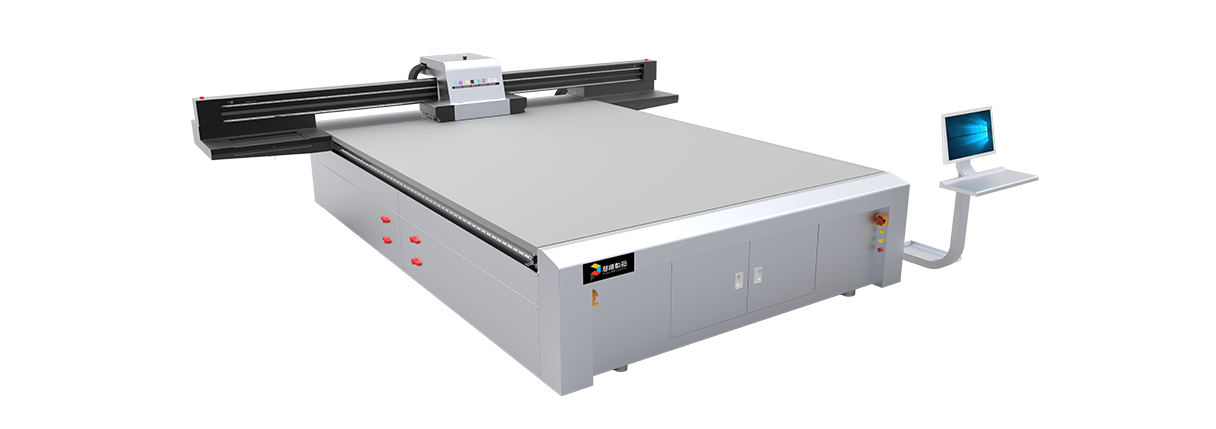

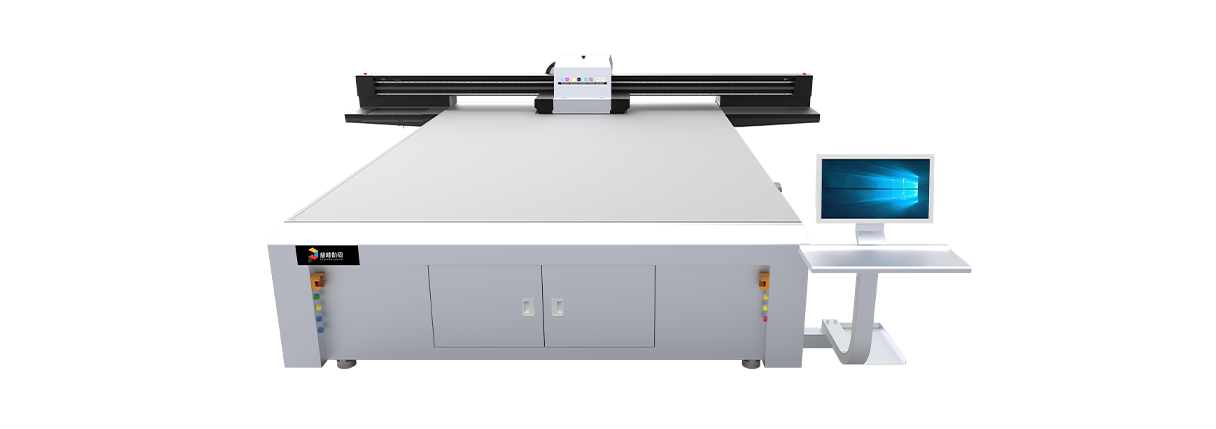

PT-2533 UV flatbed printer
Product Introduction
The PT-2533 UV flatbed printer adopts a motion mode of accelerated start and decelerated stop. The model can be customized on demand. It supports large format, multi-function, and ultra-fast printing. It has the advantages of low clogging rate and strong wear resistance. It is the preferred printer model in the home decoration industry.
Product Highlights

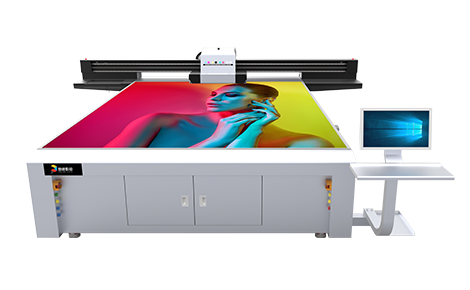

01. Extra wide printing format
2500×3300mm ultra-wide printing format, high production efficiency

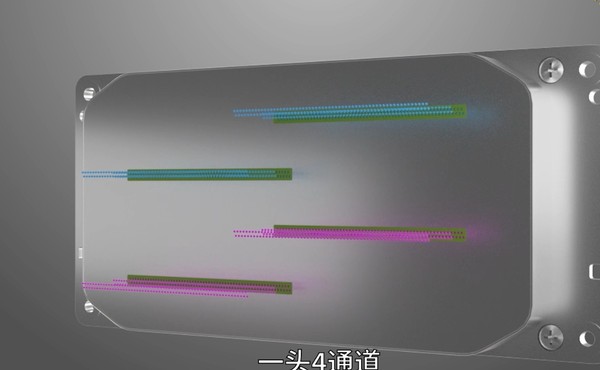

02. High-precision printing
720*1200dpi/720×900dpi printing accuracy, delicate and rich colors

03. Personalized customization
Ricoh GEN5/Ricoh GEN6 nozzles are optional, and white varnish is output simultaneously

04. Intelligent feathering mode
Optimize the printing effect, making the image smoother and more delicate

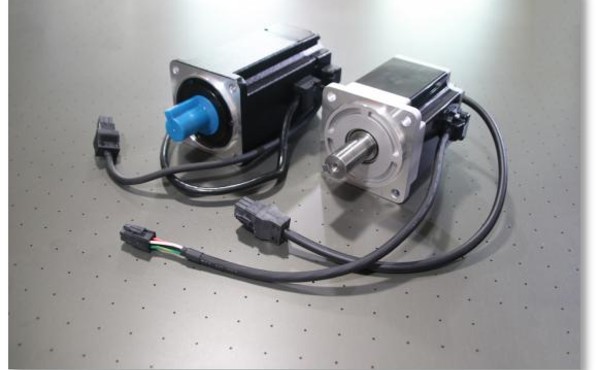

05. Servo motor mode
The Y and Z axes are driven by imported high-precision ball screws, which are stable and durable.

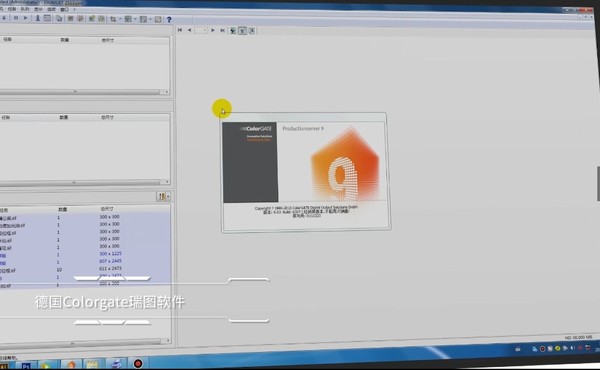

06. Intelligent control
Intelligent control of each system ensures operational stability
Technical Specifications
| Parameter name | Technical configuration | Parameter name | Technical configuration |
| Nozzle configuration | Standard configuration: 3-8 GEN5 nozzles (GEN6 nozzles are optional) | Lifting method | Ink truck lifting + automatic height measurement |
| Print size | 2500x3300mm | Movement style | Dual Y-axis motors independently driven |
| Print resolution | 720x900dpi / 720x1200dpi | Ink type | Imported UV environmentally friendly soft ink/neutral ink (VOC-free) |
| printing technology | variable dot printing | Ink color | C/M/Y/K/LC/LM/W/V |
| Ink supply system | Automatic ink supply system | Ink capacity | 1.5L |
| Negative pressure system | Negative pressure automatic adjustment system | Platform size | 2600x3400mm |
| RIP software | Colorgate | Overall dimensions | 4450x4430x1320mm |
| operating system | Windows7 Ultimate 64-bit | Environmental requirements | Temperature 18-26℃, humidity 20%-80% RH |
| X/Y/Z axis motor | X-axis: linear/servo motor Y-axis: servo motor Z-axis: stepper motor | Power requirements | AC220V 50/60HZ |
| platform | Suction platform | Maximum power | 7000W (including suction fan power 3000W) |
| Curing method | Water-cooled (dual lamp) LED curing | Equipment net weight | 2350kg |
Printing speeds corresponding to the standard-equipped printheads
| Accuracy | Pass number | high speed | medium speed | low speed |
| 720*900dpi/720*1200dpi | 6PASS | 15 m2/hour | 13 m2/hour | 10 m²/hour |
| 8PASS | 13 m2/hour | 11 m²/hour | 9 m2/hour | |
| 12PASS | 11 m²/hour | 9 m2/hour | 8 m2/hour |
Scope of Application
The PT-2533 UV flatbed printer can be customized according to needs. It has intelligent operating functions, user-friendly design and easy operation. It supports ultra-fast printing and can easily meet the fast and precise printing needs of panels, background walls, handicrafts, glass and other industries.
