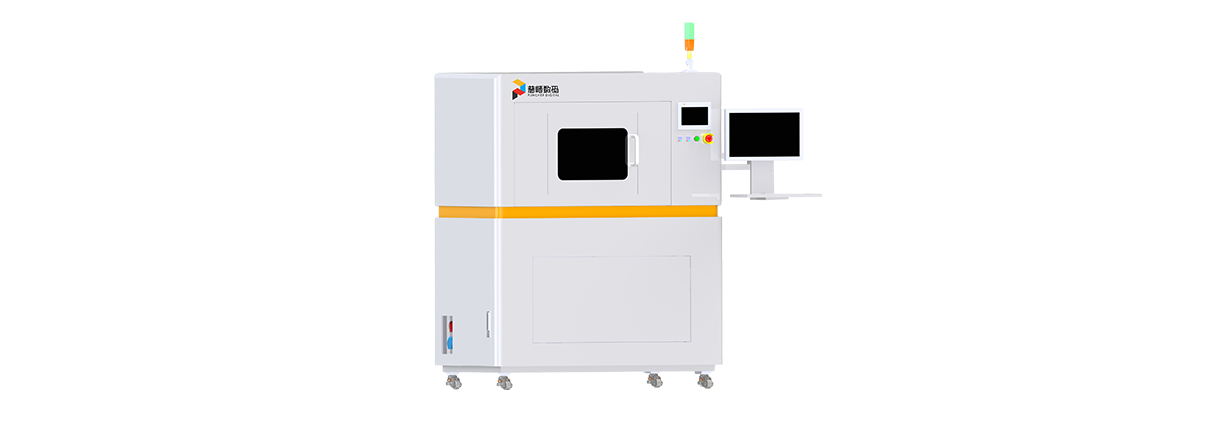

PT-C180 spiral round bottle printer

Home / Product Center / UV flatbed printer / PT-C180 spiral round bottle printer

PT-C180 spiral round bottle printer

Product Introduction

The PT-C180 spiral round bottle printer can increase the printing efficiency by 300% over the traditional printing algorithm. The unique printing control algorithm can print white varnish at one time, with free color combinations to meet various personalized printing needs. The equipment is simple to set up, environmentally friendly and energy-saving.

Product Highlights

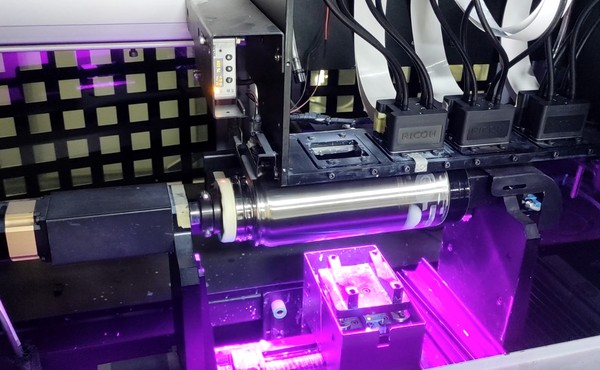

360° spiral printing

01. 360° spiral printing

Printing efficiency is 300% higher than traditional printing, single color printing only takes 15 seconds, and printing is 100% seamless.

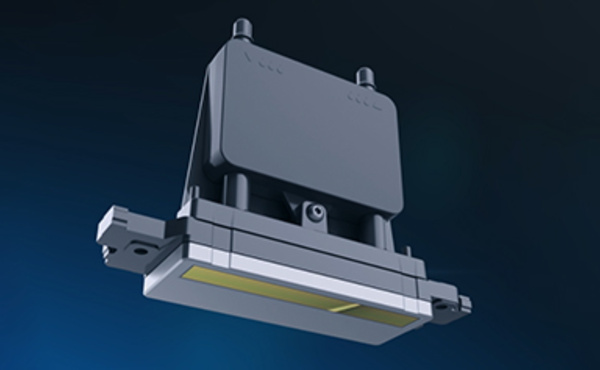

Industrial grade nozzle

02. Industrial grade nozzle

Ricoh G5i printhead, minimum ink drop volume 3.5PL

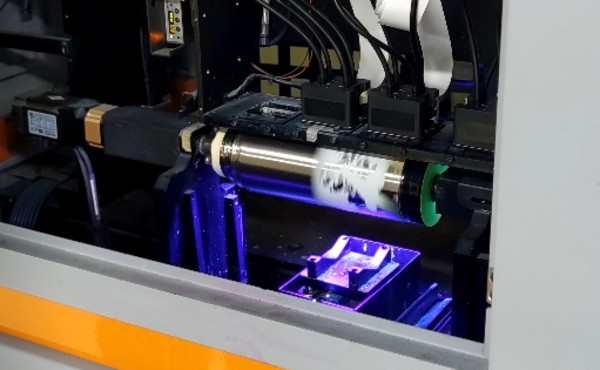

White varnish synchronous output

03. White varnish synchronous output

It dries immediately and supports free combination of white varnish.

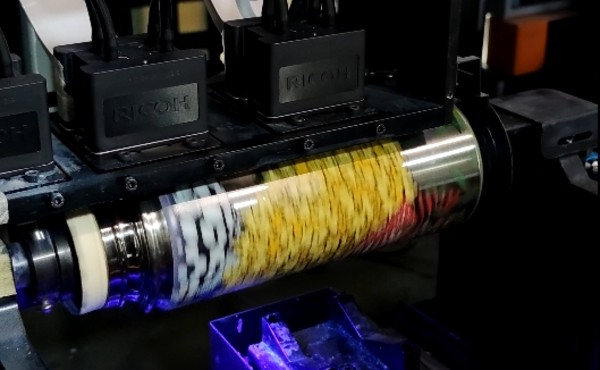

High-precision printing

04. High-precision printing

Up to 2400dpi printing accuracy

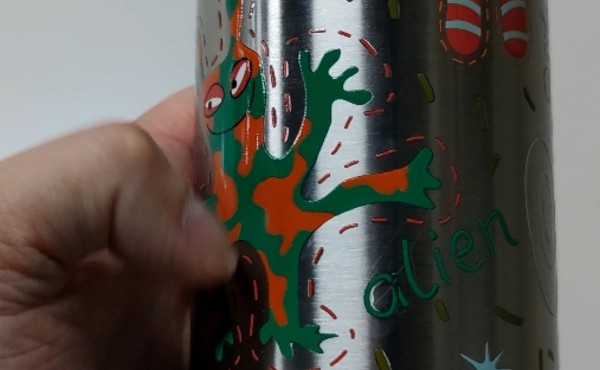

Personalized customization

05. Personalized customization

Supports free definition of 16 color channels, enabling personalized printing such as 3D relief

Intelligent feathering mode

06. Intelligent feathering mode

Optimize the printing effect, making the image smoother and more delicate

Technical Specifications

Parameter name Technical configuration Parameter name Technical configuration
Printing nozzle Support Ricoh ricoh printheads power 1500W
Print length 10mm-280mm Picture format Tiff, jpg, Eps, Pdf, Png, AI, Psd
Print diameter 40mm-150mm working environment Temperature 18-28℃, humidity 35%-65%
Printing accuracy Maximum 2400dpi Equipment weight 500kg
printing ink White varnish Printing speed Single color 15 seconds/piece (diameter 60mm, length 200mm)
Print mode Various combination modes of white varnish (single color, white + color, white + color + varnish, white + varnish, color + varnish, color + white + color) Print shape cylinder, cone
Printer size 1390mm710mm1630mm cone angle Maximum 10 degrees
Supply voltage AC220V, 50HZ-60HZ print media Various metal and plastic cylinders and cones

Printing speeds corresponding to the standard-equipped printheads

Accuracy Feathering Print white color Printing white varnish
Print mode 900x900dpi 200% 45 seconds 58 seconds
100% 33 seconds 43 seconds
33% 22 seconds 31 seconds

Scope of Application

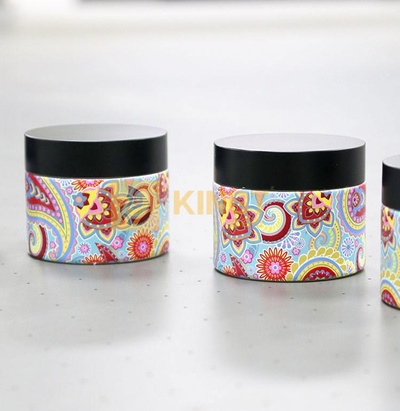

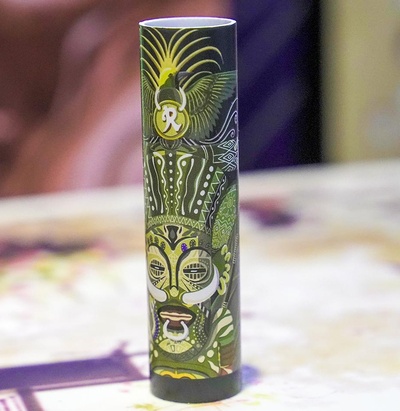

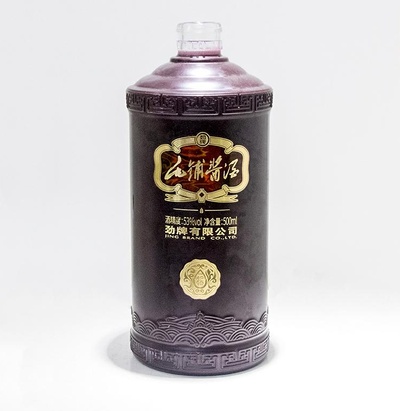

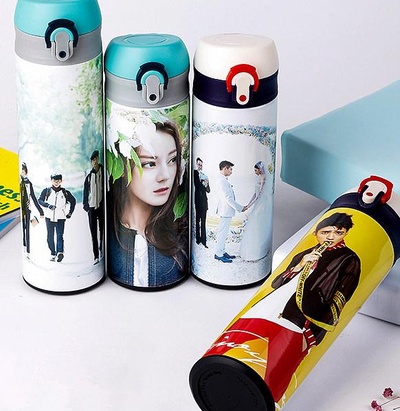

The PT-C180 spiral round bottle printer has high printing efficiency and precision and can be customized. It is widely used in printing various cylindrical materials such as wine bottles, thermos cups, cosmetic bottles, plastic tubes, glass bottles, etc.

Download Product Brochure

brochure

PT-C180 spiral round bottle printer

2025-04

PDF - 541 KB
