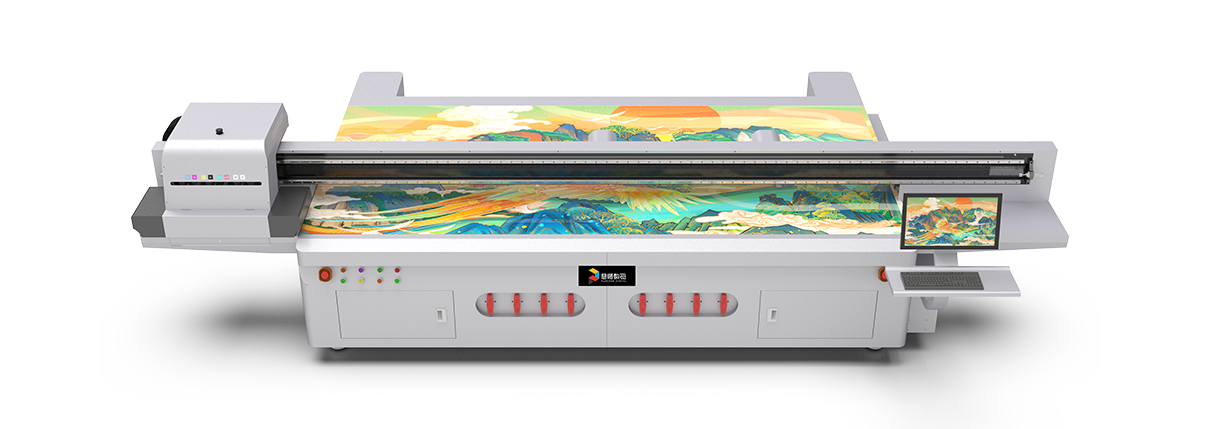

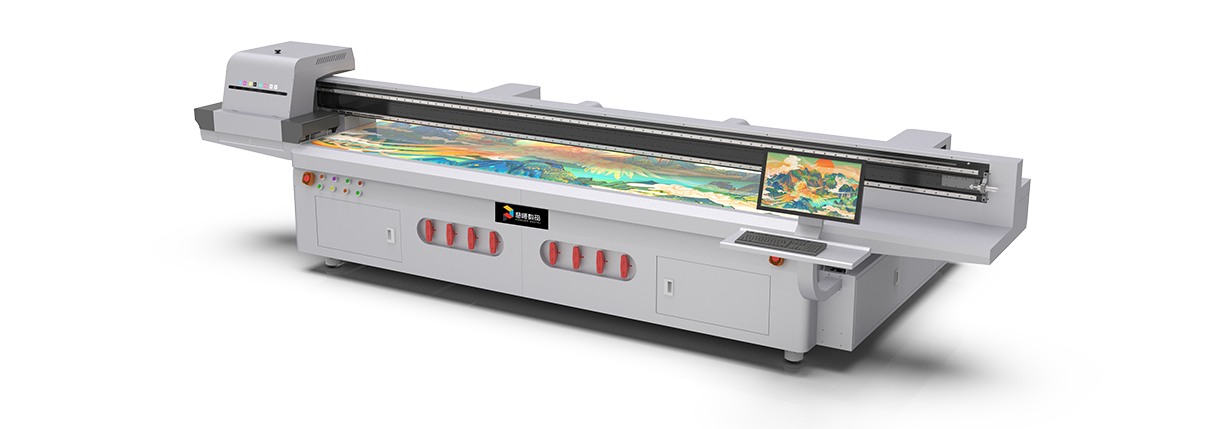

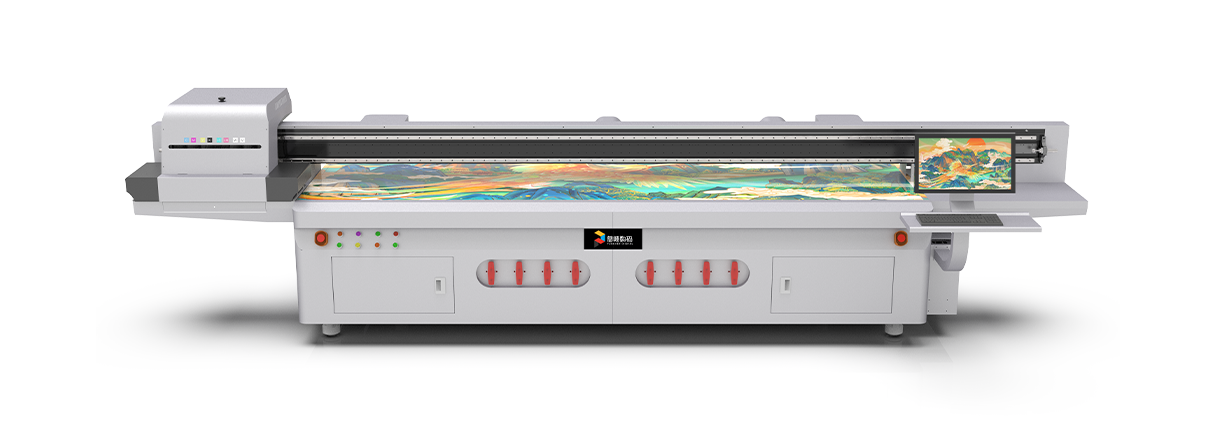

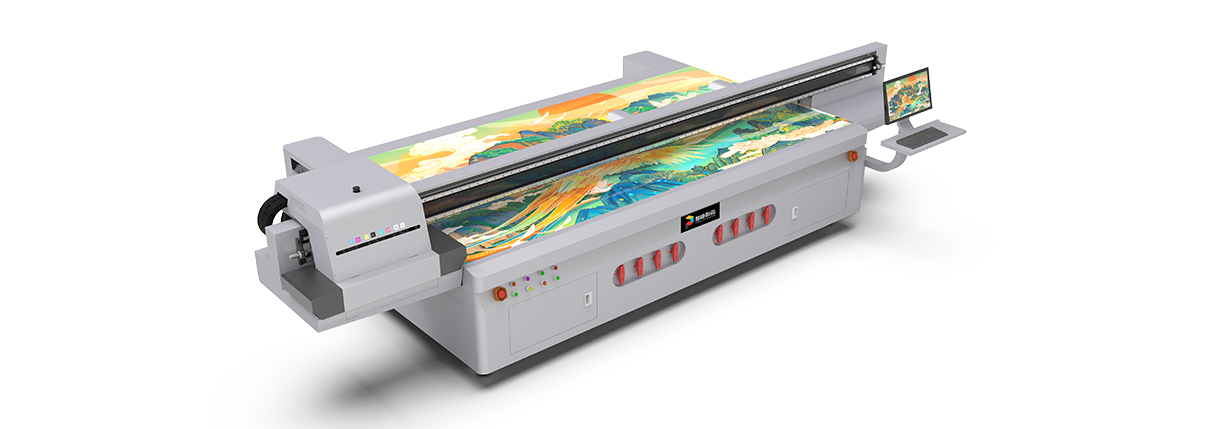

PT-R6D3315 UV flatbed printer

Product Introduction

The PT-R6D3315 UV flatbed printer adopts a new dovetail design. As Jingutian's new wide-format printing model, it further innovates productivity. The powerful production platform brings high-quality printing solutions to various types of paper and sheets in home decoration and building materials, home appliances, advertising and other industries.

Product Highlights

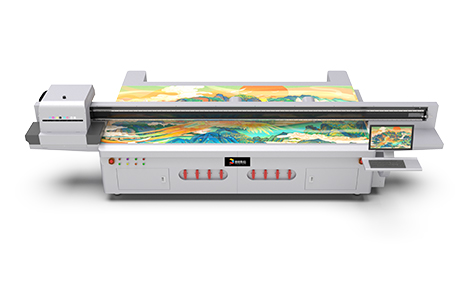

Extra wide printing format

01. Extra wide printing format

3300mm*1500mm, high production efficiency

High-precision printing

02. High-precision printing

635*1800dpi printing accuracy, excellent delicacy, sharpness and rich layers

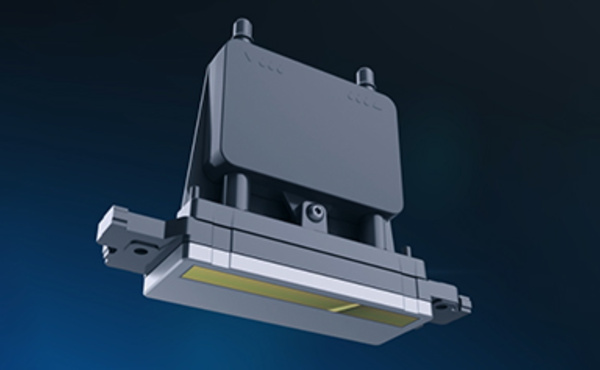

Industrial grade RICOH-GEN6 nozzle

03. Industrial grade RICOH-GEN6 nozzle

Minimum ink drop volume 5PL, maximum ignition frequency 50KHz

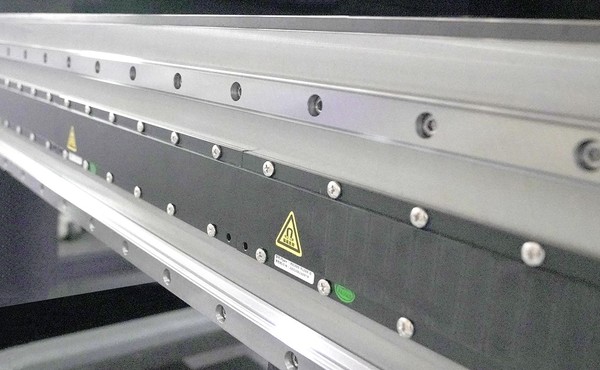

Magnetic levitation linear motor drive

04. Magnetic levitation linear motor drive

Faster response and higher repeat positioning accuracy

Personalized customization

05. Personalized customization

Customizable printing width, suitable for multi-material printing

natural reproduction

06. natural reproduction

Non-contact inkjet reduces the breakage rate of the body and restores realistic texture and comfortable touch

Technical Specifications

Parameter name	Technical configuration	Parameter name	Technical configuration
Device model	PT-R6D3315	File type	TIFF (RGB&CMYK), BMP, PDF, EPS, JPEG, etc.
Print size	3300×1500mm	Ink system	Continuous ink supply / capacity 1500ml / two-level constant temperature and constant pressure ink supply / intelligent ink stirring
Equipment net weight	2000kg	Ink type	Imported UV environmentally friendly soft ink or hard ink (VOC-free)
Nozzle type	RICOH-GEN6 Minimum ink dot: 5pl Maximum ignition frequency: 50KHZ	Ink color	C/M/Y/K/Lc/Lm/W/V (optional)
Printing accuracy	635×900DPI / 635×1200DPI / 635×1800DPI	RIP software	Colorgate
Print color	C/M/Y/K/Lc/Lm	Power requirements	AC220V (±10%) 50/60HZ P:7000W (including blower 3000W)
print height	0-100mm	Data interface	High-speed USB3.0 transmission interface
X, Y drive mode	Adopting (linear motor) magnetic levitation drive mode, faster speed response and higher repeat positioning accuracy	operating system	Windows7 Ultimate 64-bit
X-axis drive	Linear motor with metal grating (1um)	working environment	Independent, clean, low-dust, low-light, well-ventilated workspace
Y-axis drive	Linear motor with magnetic scale (1um)		Ambient temperature: 18℃-30℃(64℉-86℉)
Lift function	Intelligent ink cart lifting, electronic automatic/manual intelligent sensor detection and height adjustment		Relative humidity: 30%-70% (no condensation)
Applicable media	Glass, acrylic, wood board, ceramic tile, metal plate, PVC board, corrugated board and other types of boards	Equipment size	5400×3140×1450mm

Printing speeds corresponding to the standard-equipped printheads

Accuracy	Pass number	production mode	fine mode
635×600dpi 635×900dpi 635×1200dpi	4PASS	54 m2/hour	47 m2/hour
	6PASS	45 m2/hour	40 m2/hour
	8PASS	37 m2/hour	30 m2/hour

Scope of Application

The PT-R6D3315 UV flatbed printer has high production efficiency and can meet the printing needs of most current products. It is highly customizable and is one of Jingutian's best-selling products. It can easily meet the printing needs of various plates such as glass, acrylic, wood boards, ceramic tiles, metal plates, PVC boards, corrugated boards, etc.

Download Product Brochure

brochure

PT-R6D3315 UV flatbed printer

2025-04

PDF - 725 KB

Download

There is always a product that suits you,
At the same time, we can provide customized services according to your specific requirements

On the journey to create high-quality products for our customers, we always adhere to the original intention of being sincere, adapt to needs, and grow together with our customers.
