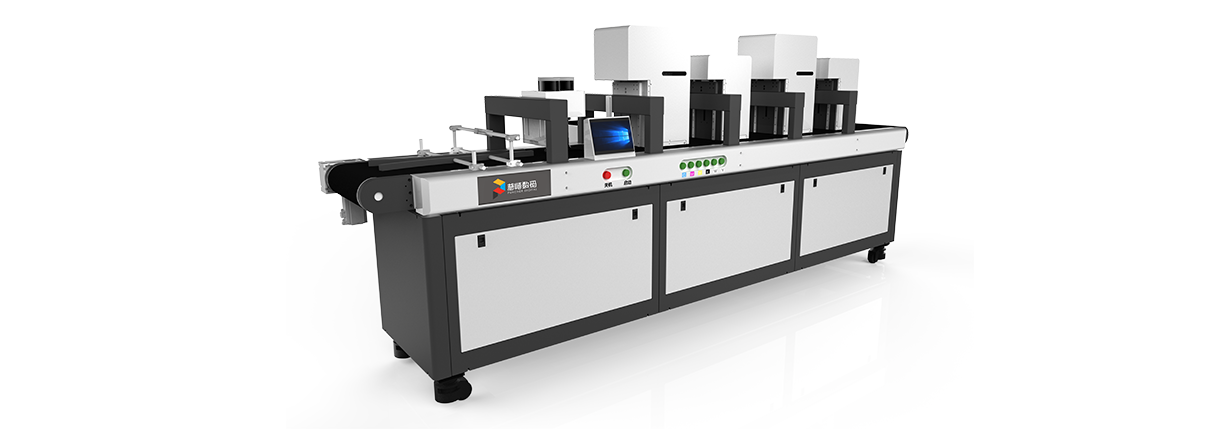

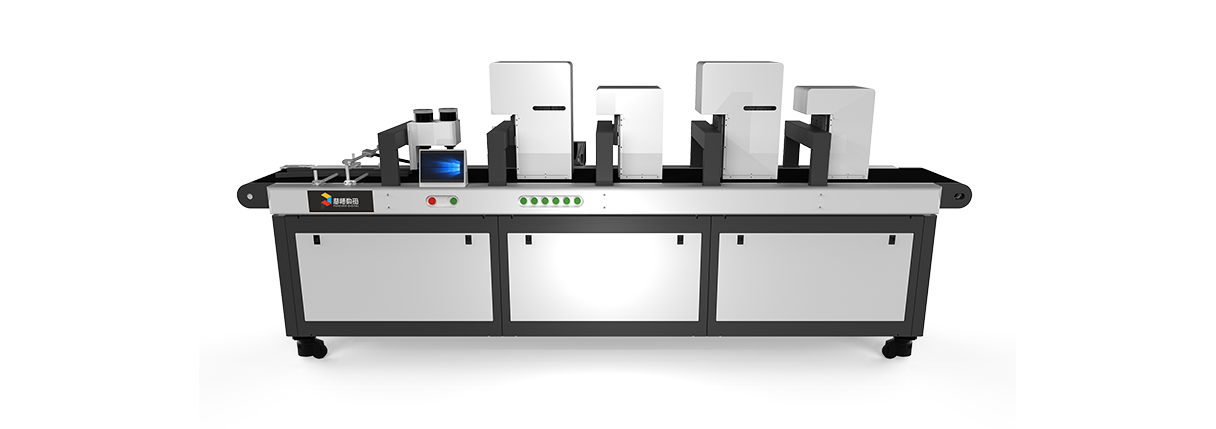

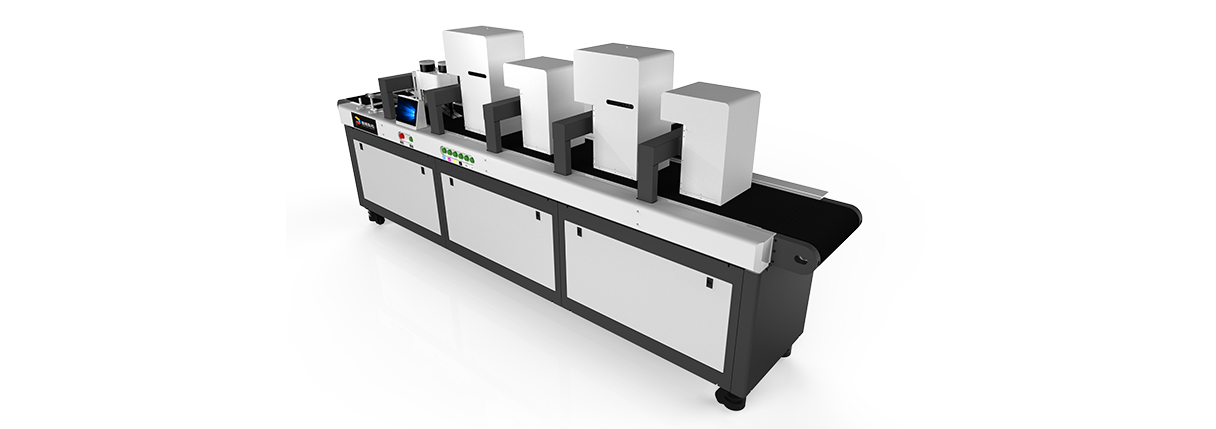

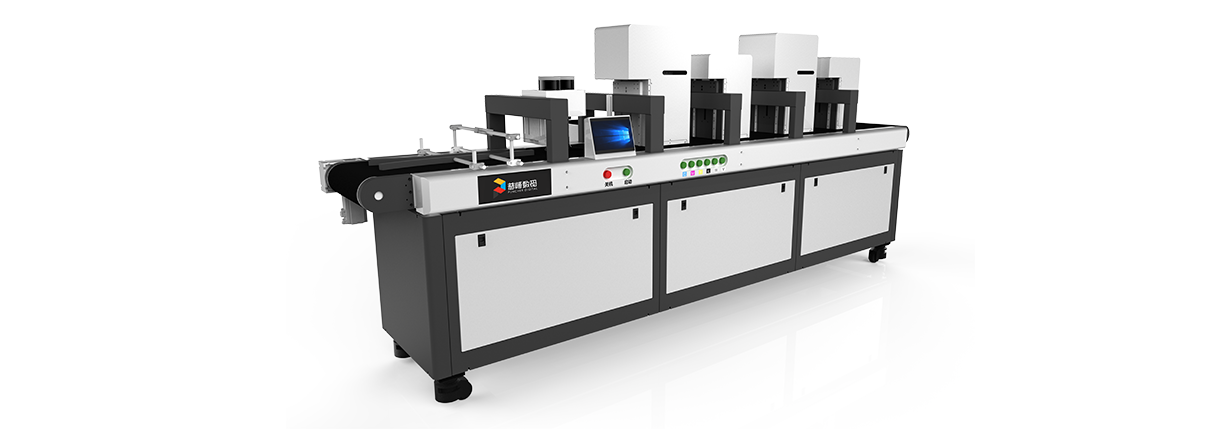

PT-R6D400A OnePass high speed digital printing press
Product Introduction
The PT-R6D400A OnePass high-speed digital printing machine adopts micro-piezoelectric inkjet method and plasma processing equipment, which can pre-treat most materials to improve the adhesion of ink on the material surface, enrich color expression capabilities, customize content, batch fixed pattern printing, etc.
Product Highlights

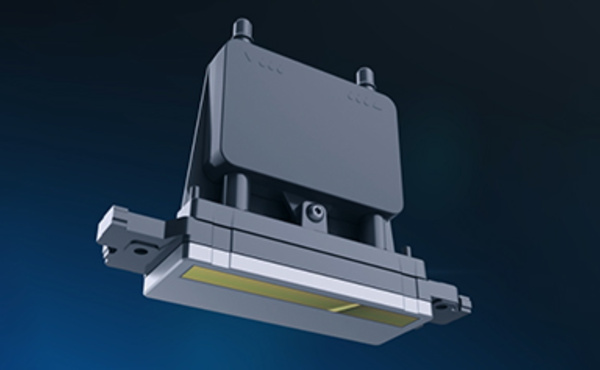

01. Industrial grade Ricoh GEN5/GEN6 printhead
Nozzle optional, maximum ignition frequency 50KHz

02. Intelligent feathering mode
Optimize the printing effect, making the image smoother and more delicate

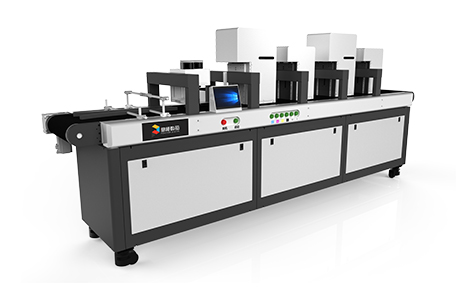

03. Highly customizable
0-100mm feeding height, printing width 54mm (printing width can be customized), no plate making required, simple process

04. Delicate picture quality
Resolution 600dpi, white color synchronous output

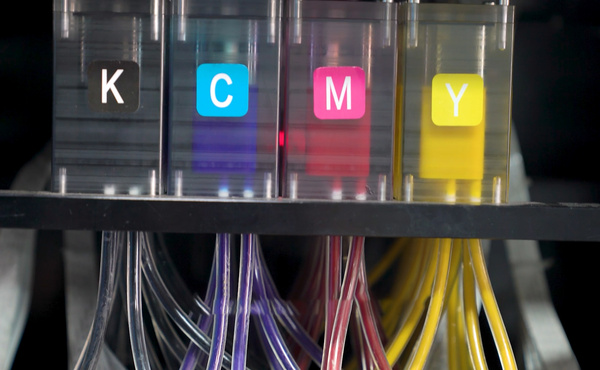

05. Energy saving and environmental protection
Imported environmentally friendly UV ink to reduce waste generation and energy consumption
Technical Specifications
| Parameter name | Technical configuration | Parameter name | Technical configuration |
| Model name | PT-R6D400A ONEPASS high speed digital printing press | Printing speed | 30m/min |
| printing technology | Micro piezoelectric inkjet method | Picture format | TIFF (RGB&CMYK)、BMP、PDF、EPS、JPEG 等 |
| Material type | Handbags, kraft paper bags, cartons, sheets of paper, lunch box lids, bottle caps, packaging lids, single flat materials, etc. | RIP software | Colorgate |
| Feed width | 10-360mm | Data interface | High-speed USB3.0 interface |
| Feeding height | 0-100mm | Power requirements | AC220(±10%)/50/60HZ Pmax:1.5KW |
| Inks and colors | Imported environmentally friendly UV ink (VOC-free); C (cyan blue), M (magenta), Y (yellow), K (black), W (white) | Appearance size | 3340mm (length)×1082mm (width)×650mm (height) |
| Nozzle type | RICOH GEN6 | Equipment net weight | 700KG |
| Number of nozzles | 2PCS/4PCS | Environmental requirements | Temperature: 20℃-30℃ (68℉-86℉); Humidity: 35%-65% (no condensation) |
| Printing width | 54mm (customizable printing width) | workshop | Independent, clean, low-dust, low-light, well-ventilated workspace |
| Support color | cyan, red, yellow, black (color), white | operating system | Windows7 64-bit operating system |
| Print resolution | 600dpi | CPU | Intel i7 and above |
| Printing process | Unloading - Plasma treatment - Printing - UV curing - Rewinding | Memory and hard drive | DDR3 1600 8G+SSD system disk (solid state drive)+ mechanical hard drive 100G or above |
Scope of Application

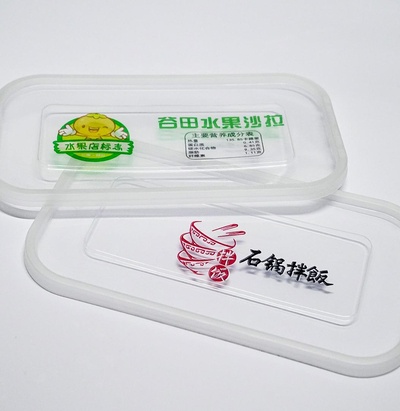

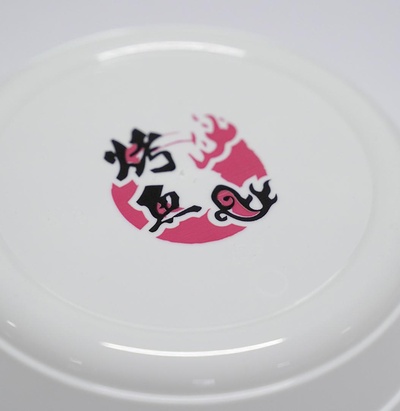

The PT-R6D400A OnePass high-speed digital printing machine is widely used in handbags, kraft paper bags, cartons, lunch box lids, single sheets of flat materials, etc. It can customize content according to customer needs, achieving one code per box, one picture per box, and printing and drying.
