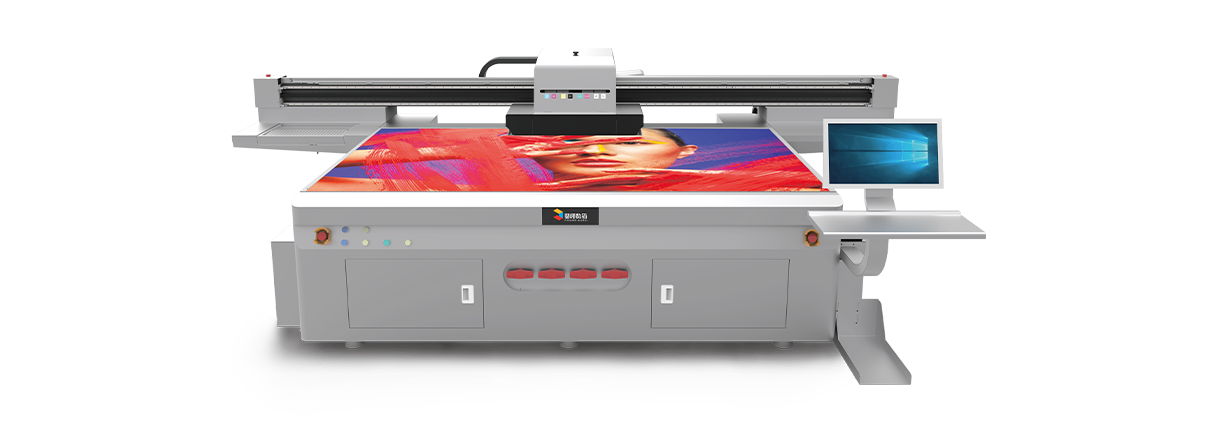

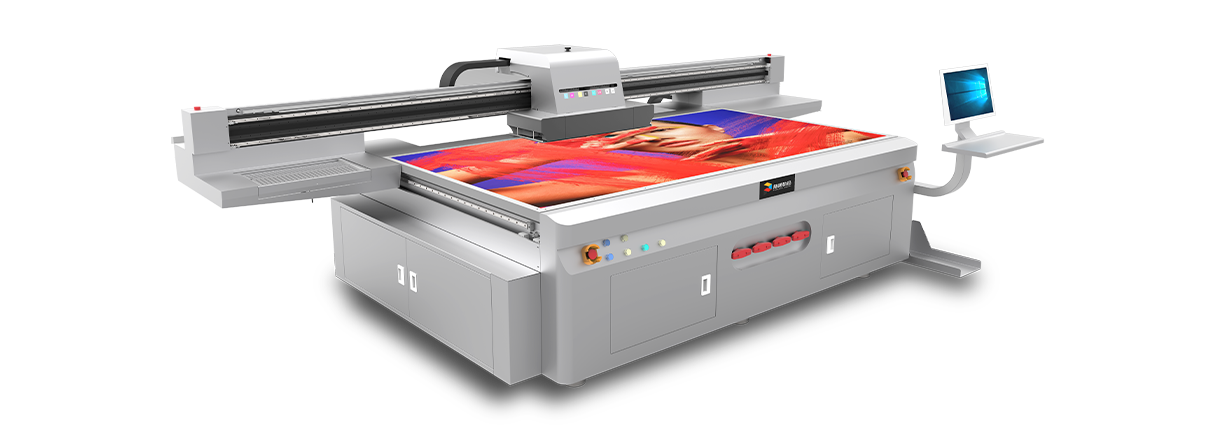

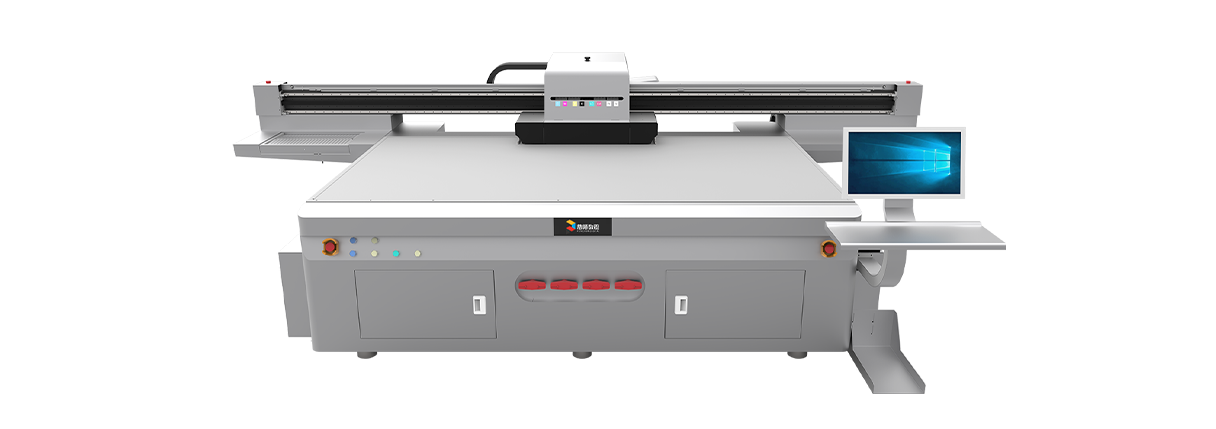

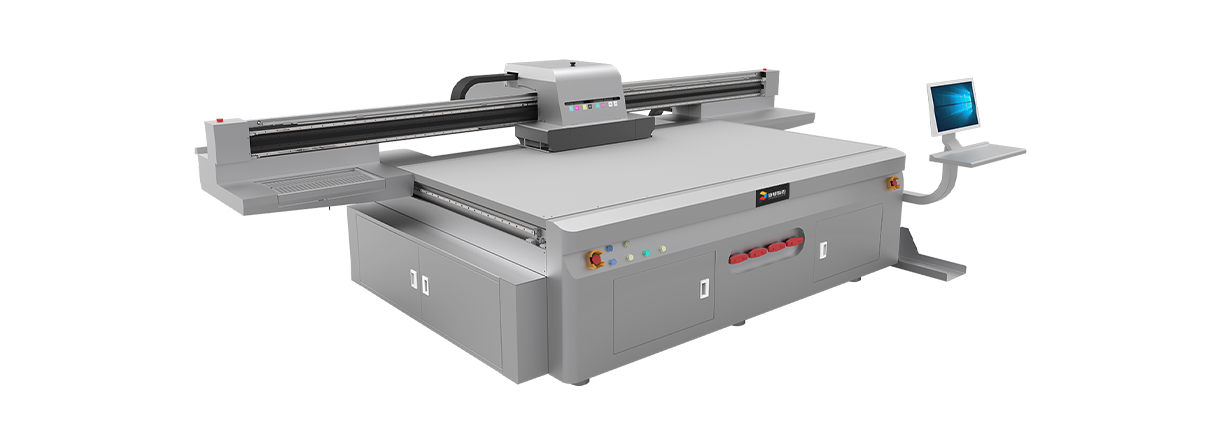

PT-YW-2513 UV flatbed printer

Product Introduction

The PT-YW-2513 UV flatbed printer adopts a new dovetail design, making the operation more user-friendly; it is highly customizable and is one of Jingutian's best-selling products; it can be configured with a new visual positioning system, the deformation matching algorithm is faster, and it can achieve high-precision recognition and printing, enabling the printing needs of multiple types of materials.

Product Highlights

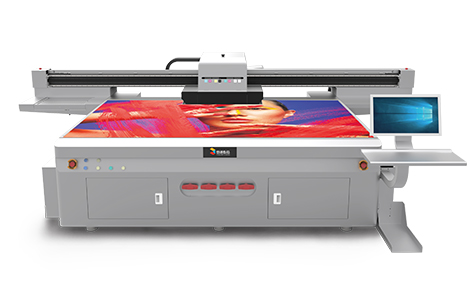

Extra wide printing format

01. Extra wide printing format

2.5m×1.3m ultra-wide printing format, high production efficiency

Intelligent feathering mode

02. Intelligent feathering mode

Optimize the printing effect, making the image smoother and more delicate

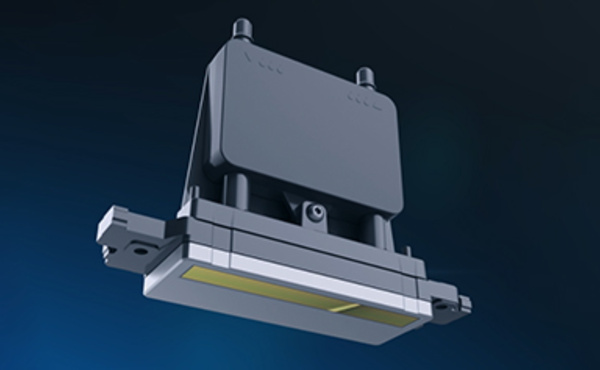

Personalized customization

03. Personalized customization

Ricoh GEN5/Ricoh GEN6 printheads are optional, and the printing picture is delicate and high-definition.

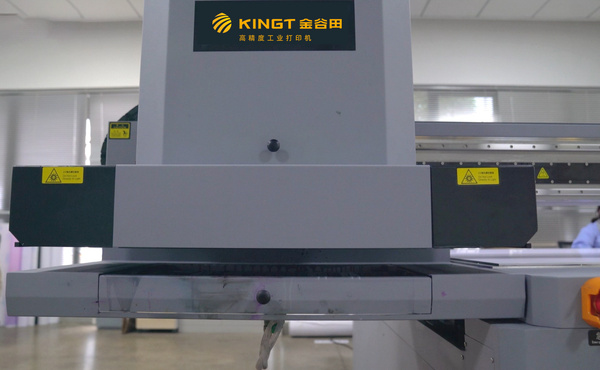

Intelligent

04. Intelligent

Intelligent ink cart lifting, electronic automatic/manual intelligent sensor detection and height adjustment

print height

05. print height

Can support 0-150mm/200/300/400mm customizable height

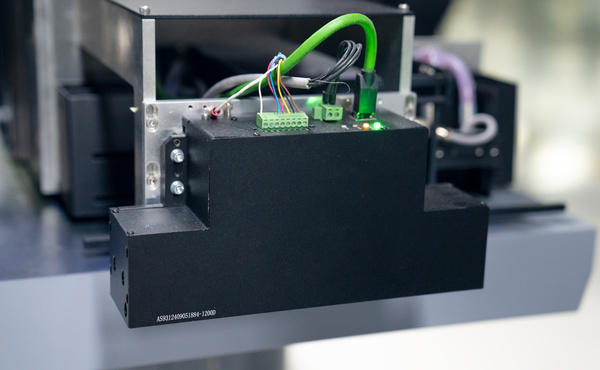

CCD intelligent visual positioning

06. CCD intelligent visual positioning

1200dpi high-precision positioning, efficient automation, high flexibility and compatibility

Technical Specifications

Parameter name Technical configuration Parameter name Technical configuration
Nozzle configuration Ricoh GEN6 printhead Ink type UV environmentally friendly soft ink, neutral ink and hard ink (VOC free)
Print size 2500×1300mm Ink color C, M, Y, K, Lc, Lm, W, V (optional)
Print resolution 635×900dpi / 635×1200dpi / 635×1800dpi Equipment size 4350×2280×1350mm
Print color CMYK+W+V, CMYK+LCLM+W+V; supports multi-color color sorting combinations Equipment net weight 1350kg
Ink system Continuous ink supply / Capacity 1000ml / Two-level constant temperature and constant pressure ink supply (optional) / Intelligent stirring of white ink Maximum power 7000W
print height Standard printing height 0mm-150mm (can be customized) Power requirements AC220V 50/60HZ P:7000W (including blower 3000W)
RIP software Colorgate Environmental requirements Independent, clean, low-dust, low-light, well-ventilated workspace
Curing method Water-cooled LED curing (dual lamps) Ambient temperature: 18℃-30℃(64℉-86℉)
Lift function Intelligent ink cart lifting, electronic automatic/manual intelligent sensor detection and height adjustment Relative humidity: 30%-70% (no condensation)

Printing speeds corresponding to the standard-equipped printheads

Accuracy Pass number high speed medium speed low speed
635×900dpi / 635×1200dpi 6PASS 19 m²/hour 16 m2/hour 13 m2/hour
8PASS 16 m2/hour 13 m2/hour 10 m²/hour

Scope of Application

The PT-YW-2513 UV flatbed printer meets the printing needs of most current products. It has high production efficiency and is easy to operate. It can easily meet the fast and precise printing needs of packaging, panel, digital shell, advertising and other industries.

Download Product Brochure

brochure

PT-YW-2513 UV flatbed printer

2025-04

PDF - 654 KB
