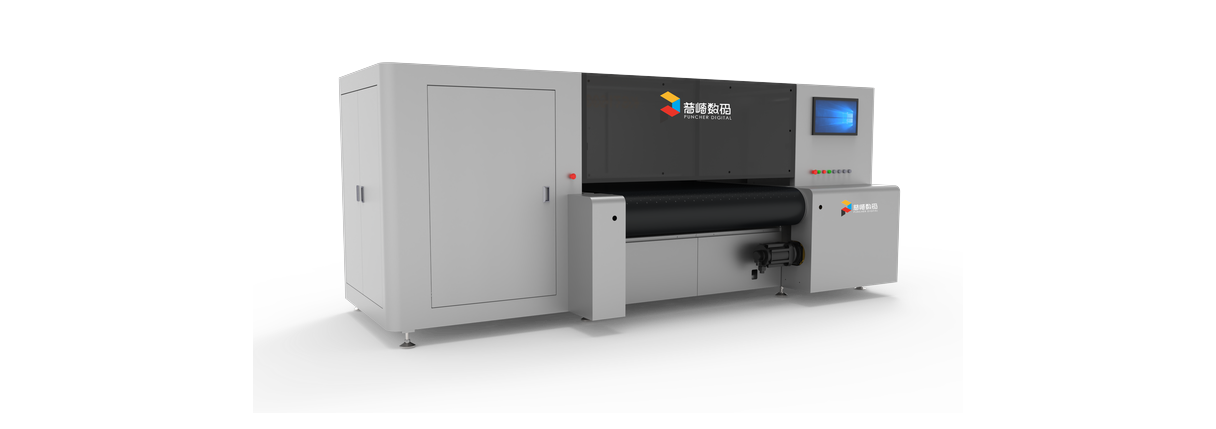

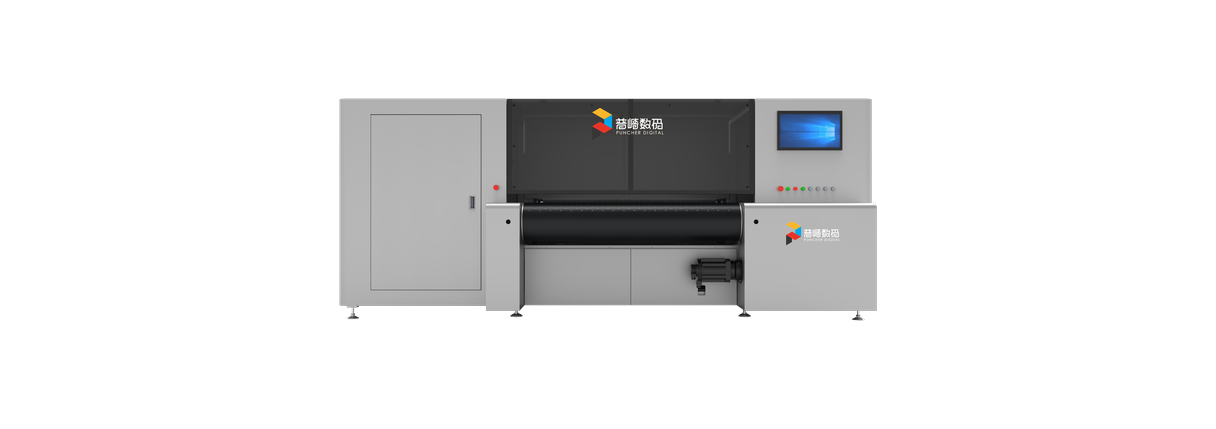

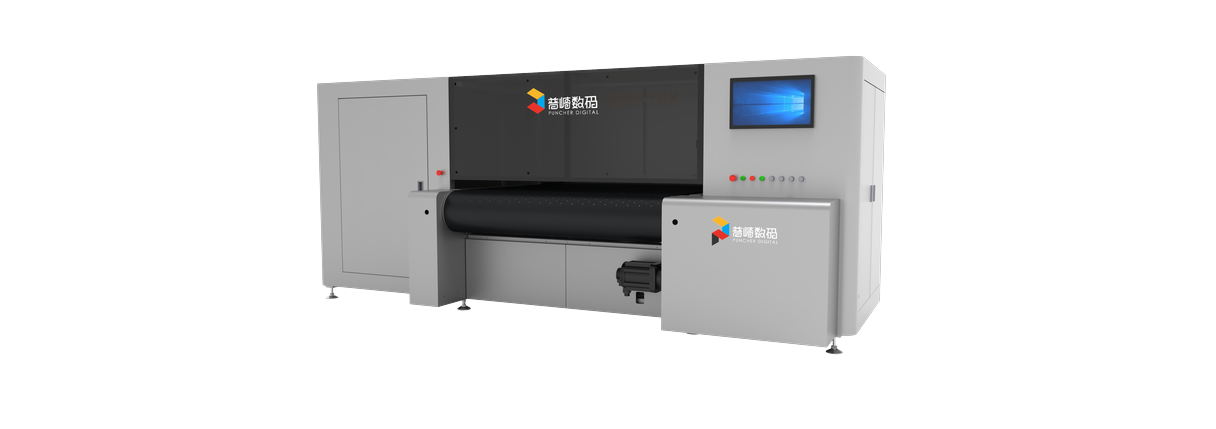

PT-1600H Single pass high speed digital printing machine

Product Introduction

The PT-1600H single pass high-speed digital printing press has an imported control panel system, which can control the orderly operation of the printing system to ensure fine printing. It has both stability and reliability. It has high printing color accuracy, delicate and rich images, and is wear-resistant and light-heat resistant.

Product Highlights

Industrial grade nozzle

01. Industrial grade nozzle

EPSON I3200, high resolution, multi-color and durable

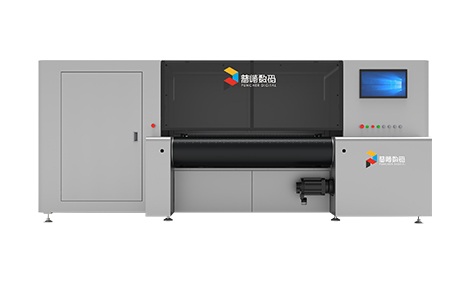

Variable data printing

02. Variable data printing

Continuous QR codes, plain codes, etc. can be printed on demand to meet variable content printing.

High-precision printing

03. High-precision printing

600×1200dpi printing accuracy, ultra-clear and delicate

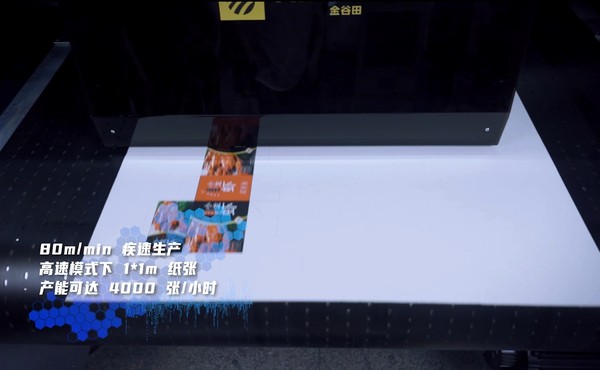

High productivity output

04. High productivity output

High ignition frequency, up to 75m/min printing capacity

automation

05. automation

Ink shortage and ink overflow alarm, automatic moisturizing, contactless automatic cleaning and maintenance

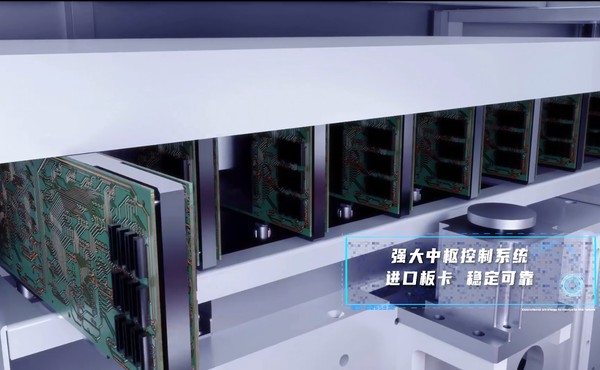

Imported control panel system

06. Imported control panel system

It combines stability and reliability, with high output color accuracy and low error rate.

Technical Specifications

Parameter name Technical configuration
Machine model PT-1600H PT-1600H+
Number of nozzles 24 48(24H*2)
Nozzle type Epson i3200
Ink type Special water-based dye ink, special water-based pigment ink
Ink color CMYK
Printing accuracy 600×600 dpi / 600×1200 dpi 1200×600 dpi / 1200×1200 dpi
printing speed 30-75m/min
printing width 800mm (can be customized)
Material thickness 1.5-20mm
Media size Paper passing width 400-1600mm, automatic paper feeding 400-1500mm (automatic paper feeding over 1500mm can be customized with an extended paper support)
Feeding method Leading edge feeding system, automatic feeding
Ink supply method Fully automatic continuous ink supply
Drying speed Liner board can be printed and dried immediately, and a drying unit can be added
working environment 25-30℃, humidity 40-60%
operating system Professional rip software, professional printing software, win10 system 64-bit operating system or above
Power supply AC380V, 50-60Hz, maximum power 37kw
Equipment size 4700×4200×2100mm
Equipment weight 5000kg

Scope of Application

The PT-1600H single pass high-speed digital printing machine is equipped with Epson's unique nozzle, which is widely used for printing on all absorbent materials such as corrugated cardboard, honeycomb cardboard, and kraft cardboard. It is suitable for many commercial and industrial printing fields to achieve high-speed output and high-quality printing.

Download Product Brochure

brochure

PT-1600H Single pass high speed digital printing machine product manual

2025-04

PDF - 543 KB

There is always a product that suits you,
At the same time, we can provide customized services according to your specific requirements

On the journey to create high-quality products for our customers, we always adhere to the original intention of being sincere, adapt to needs, and grow together with our customers.
