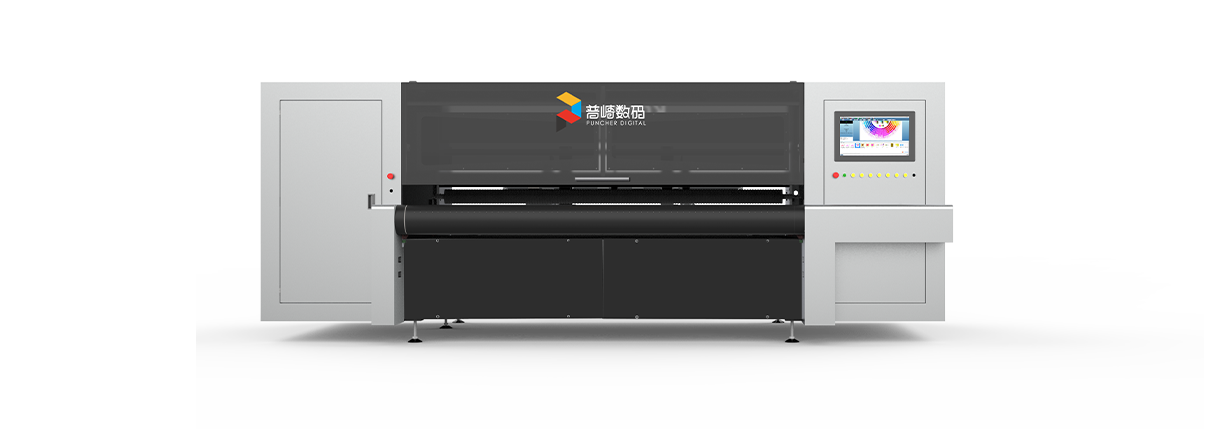

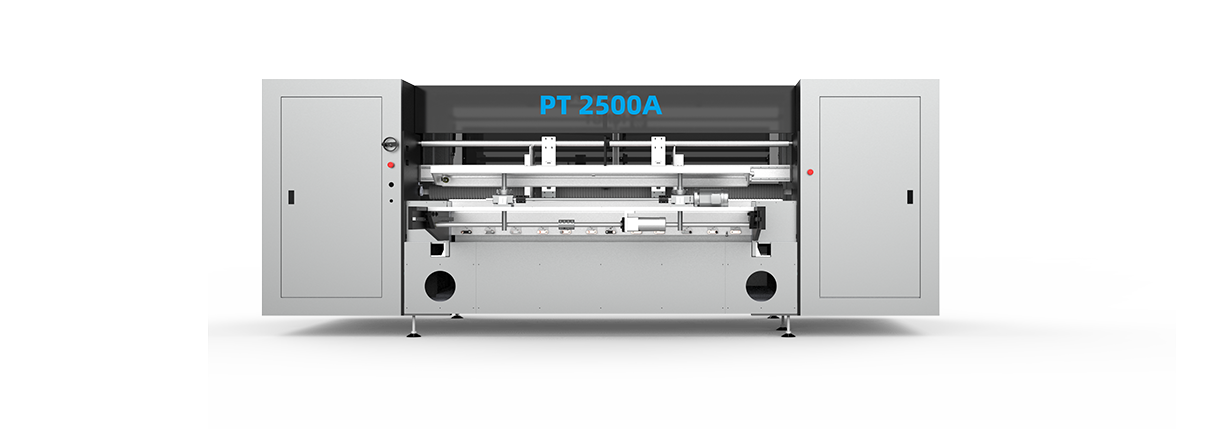

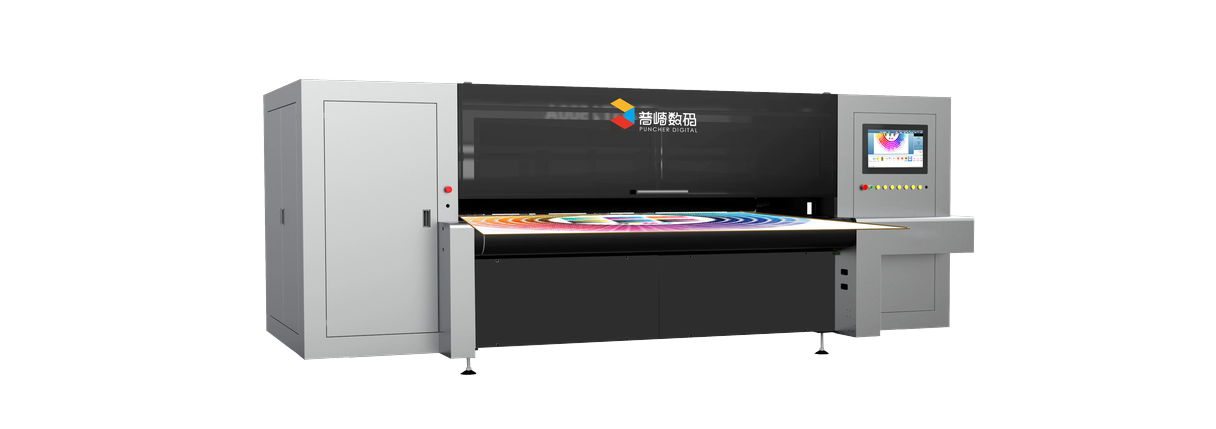

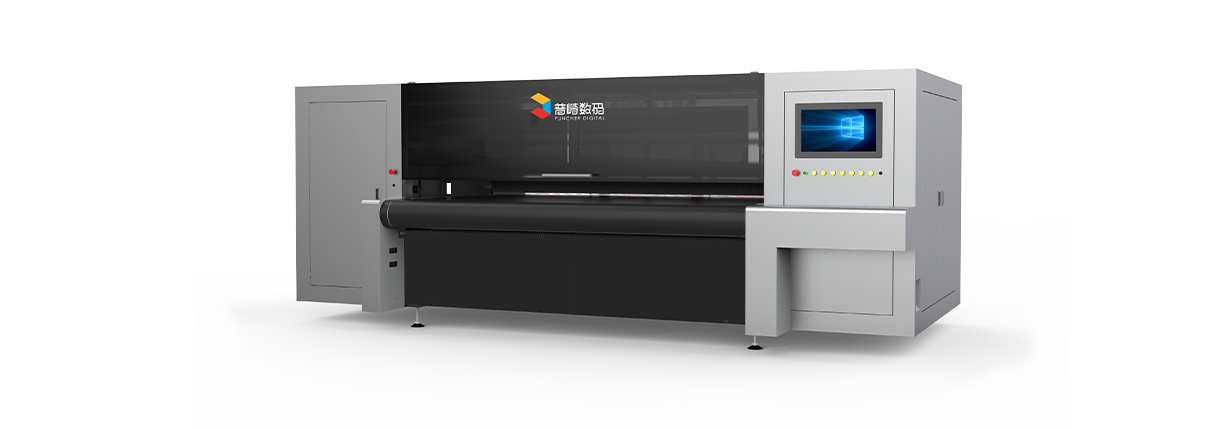

PT-2500A scanning digital printing machine

Product Introduction

The PT-2500A scanning digital printing machine does not require plate making, saving labor. It can promptly and flexibly process short orders, broken orders, urgent orders, variable data, and anti-counterfeiting traceability orders. It can truly print from a single sheet, reduce inventory costs, and meet the printing needs of various industries.

Product Highlights

Image level printing

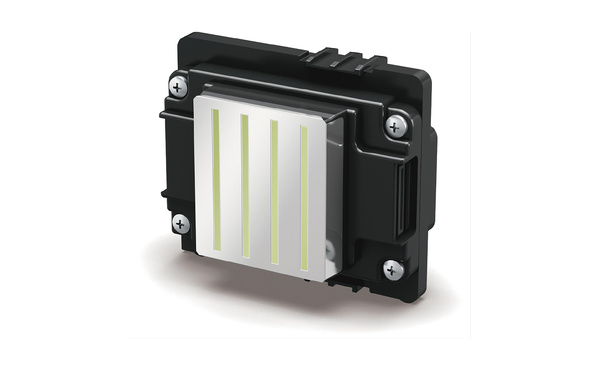

01. Image level printing

Epson I3200-A1 nozzle, multi-level grayscale printing, accuracy up to 1200dpi

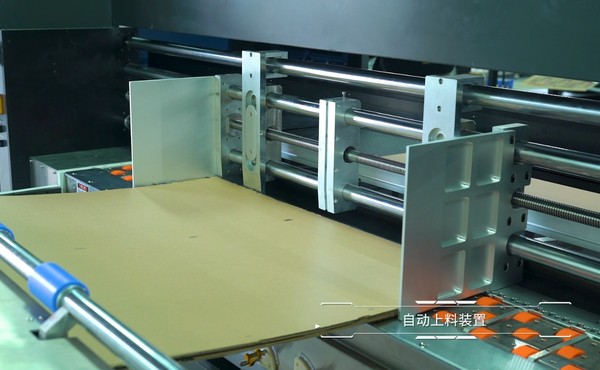

Smart paper feeding

02. Smart paper feeding

Intelligent sensing system, automatic feeding and collecting, and continuous printing

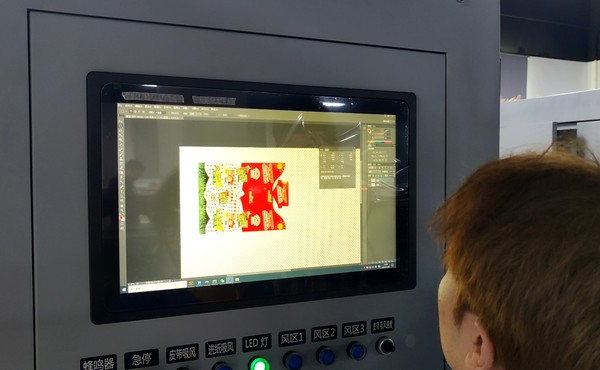

Wide color gamut

03. Wide color gamut

Accurate ICC correction software, color reproduction is more realistic

On-demand production

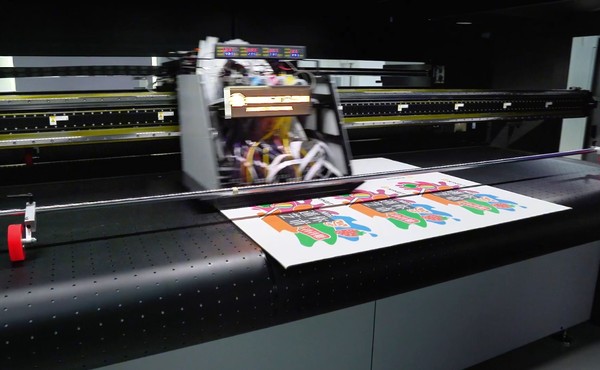

04. On-demand production

No plate making is required, single sheets can be printed, reducing inventory costs.

High productivity output

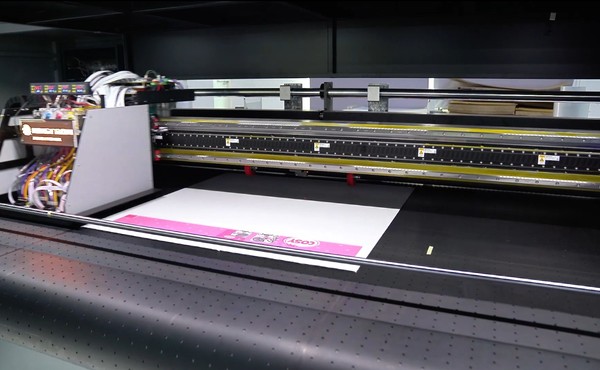

05. High productivity output

Four-color printing, speed up to 1400㎡/h

Intelligent control

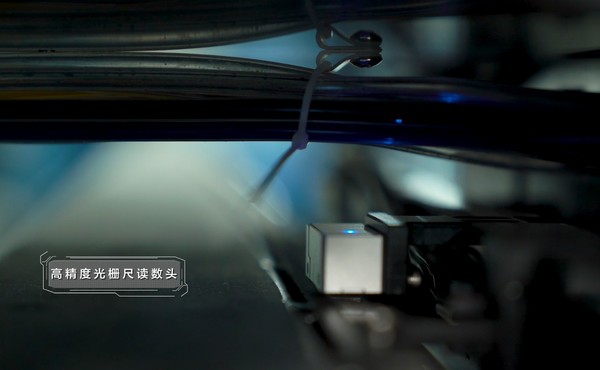

06. Intelligent control

Intelligent interlocking control of each system ensures safe and stable operation of the machine

Technical Specifications

Parameter name	Technical configuration
Machine model	PT-2500A	PT-2500A+	PT-2500A++
Nozzle configuration (optional)	8H four colors (C/M/Y/K) Printing width 264mm	8×2H four colors (C/M/Y/K) Printing width 259mm	16H four colors (C/M/Y/K) Printing width 528mm
Model production capacity (Capacity depends on printing pattern)	1 PASS 700m2/h 2 PASS 350m2/h (Including delivery)	1 PASS 700m2/h 2 PASS 350m2/h (Including delivery)	1 PASS 1400m2/h 2 PASS 700m2/h (Including delivery)
RIP accuracy	363600dpi 726600dpi (high precision 1PASS) 3631200dpi 7261200dpi (high precision 2PASS)	1200*360dpi	1200*360dpi
motion system	Belt drive + linear motor (optional), high-precision servo system	Linear motor, high-precision servo system	Linear motor, high-precision servo system
Paper feeding method	Leading edge feed
Nozzle type	Epson i3200
media information	Maximum width: 2500mm, automatic feeding length: 1450mm, thickness: 1.5-20mm
Up and down board method	Pipeline approach
Traceability code printing	Continuously variable QR codes, clear codes, etc. can be printed according to customer requirements
Material number management	Material number queue management system, automatic switching (IQM function)
Drying method	Hot air drying (optional)
Configuration software	RIP software
Input format	PDF, JPEG, TIFF, AI, etc.
Construction site (minimum)	7100mm (length)×6800mm (width)×2500mm (height)
Power and electricity consumption	Three-phase 380V, 50HZ, maximum power 13.5kw
Air source requirements	Pressure: ≥6kg/cm² Flow rate ≥34 liters/min
Environmental requirements	Relative humidity: 40%-60%; ambient temperature: 22℃-30℃
Equipment size	4870 (width)×3000 (feeding direction)×1800 (height) mm
Equipment weight	3200kg

Scope of Application

The PT-2500A scanning digital printing press is equipped with accurate ICC correction software, which can achieve richer image effects and make packaging "thousands of versions". It is suitable for direct printing of all absorbent materials such as corrugated cardboard, honeycomb cardboard, coated paper, kraft paper, acrylic thin boards, etc. of various specifications, and the effect is comparable to traditional spot color printing.
