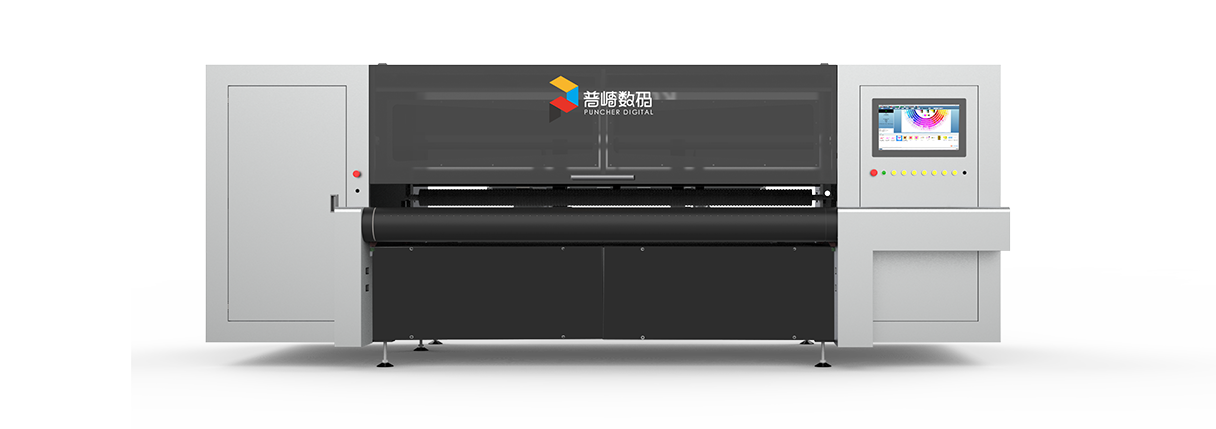

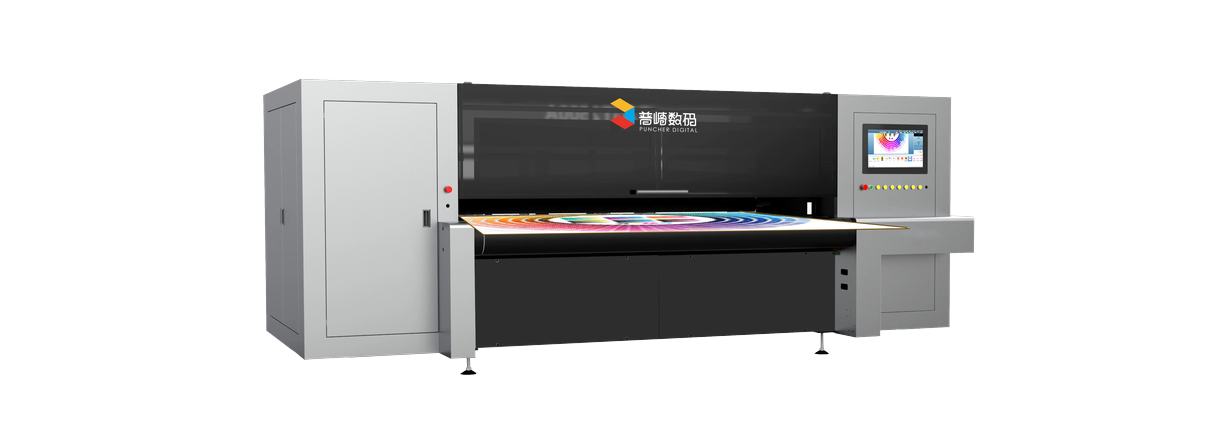

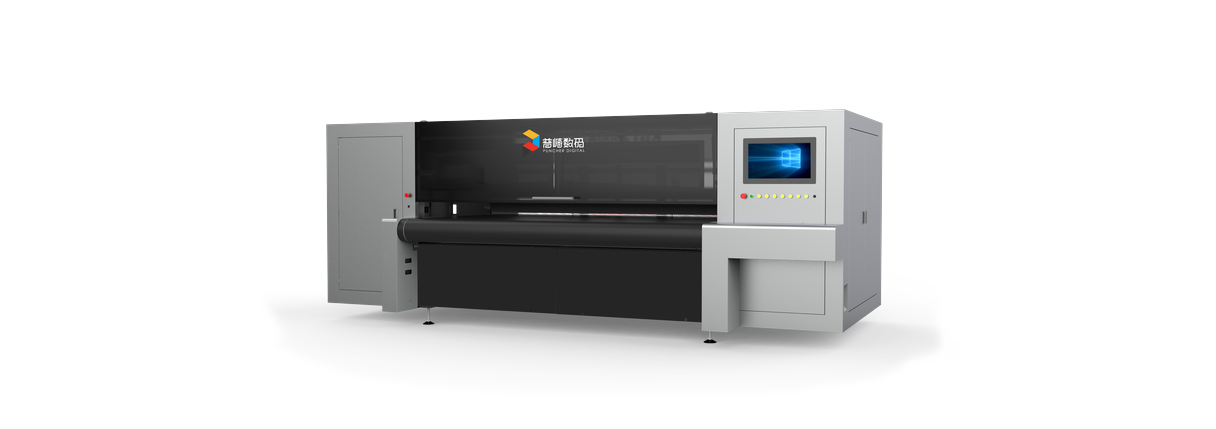

PT-2500U scanning digital printing press

Product Introduction

The PT-2500U scanning digital printer has the T3200, the first product in the Epson Precisioncore series of print heads with an internal heating device. The internal heating device makes the ink droplet ejection more stable, combining stability and high efficiency. The printing color accuracy is high, the picture is delicate and rich, and it is wear-resistant and light-heat resistant.

Product Highlights

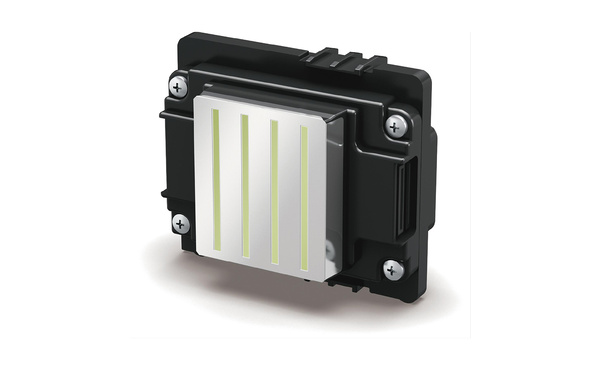

Industrial grade nozzle

01. Industrial grade nozzle

EPSON T3200-U3, high resolution, internal heating device, stable and smooth ink droplets

Variable droplet printing

02. Variable droplet printing

Epson's unique VSDT, rich picture details and saturated colors

High-precision printing

03. High-precision printing

Up to 1200×726dpi printing accuracy, ultra-clear and delicate

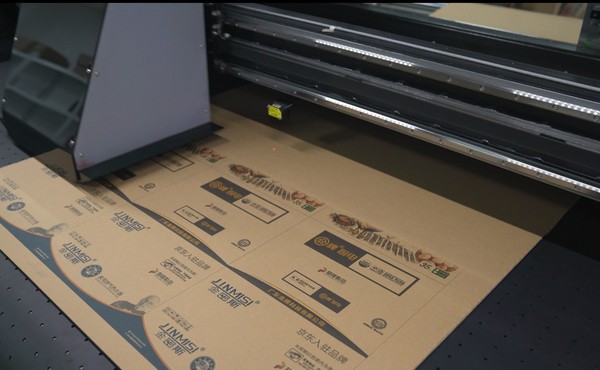

High productivity output

04. High productivity output

Maximum width 2500mm, eight-color printing up to 334m/min

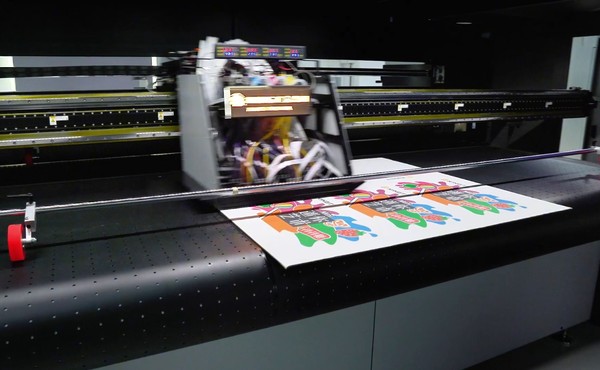

On-demand production

05. On-demand production

No plate making is required, single sheets can be printed, reducing inventory costs.

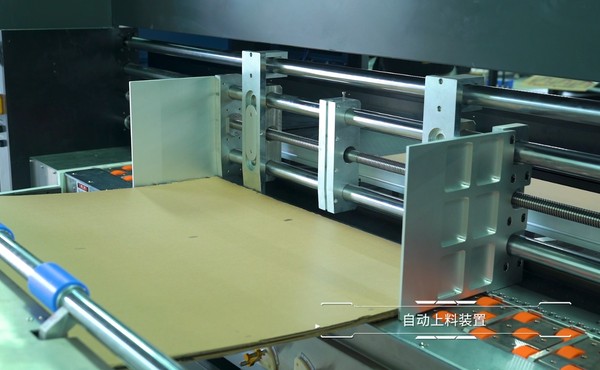

Smart paper feeding

06. Smart paper feeding

Intelligent sensing system, automatic feeding and collecting, and continuous printing

Technical Specifications

Parameter name Technical configuration
Machine model PT-2500H
Number of nozzles 24 48(24H*2)
Nozzle type Epson i3200
Ink type Special water-based dye ink, special water-based pigment ink
Ink color CMYK
Printing accuracy 600×600 dpi / 600×1200 dpi 1200×600 dpi / 1200×1200 dpi
printing speed 30-75m/min
printing width 800mm (can be customized)
Material thickness 1.5-20mm
Media size Paper passing width 2500mm, automatic paper feeding 400-1500mm (automatic paper feeding over 1500mm can be customized with an extended paper support)
Feeding method Leading edge feeding system, automatic feeding
Ink supply method Fully automatic continuous ink supply
Drying speed Liner board can be printed and dried immediately, and a drying unit can be added
working environment 25-30℃, humidity 40-60%
operating system Professional rip software, professional printing software, win10 system 64-bit operating system or above
Power supply AC380V, 50-60Hz, maximum power 37kw
Equipment size 6100×4500×1900mm
Equipment weight 7500kg

Scope of Application

The PT-2500U scanning digital printer is equipped with Epson's unique nozzle, which is widely used in printing on all water-absorbent materials such as corrugated cardboard, honeycomb cardboard, and kraft cardboard. It is suitable for many commercial and industrial printing fields to achieve high-speed output and high-quality printing.

Download Product Brochure

brochure

PT-2500U Scanning Digital Printing Machine Product Manual

2025-04

PDF - 631 KB

There is always a product that suits you,
At the same time, we can provide customized services according to your specific requirements

On the journey to create high-quality products for our customers, we always adhere to the original intention of being sincere, adapt to needs, and grow together with our customers.

Related Products

Related Products

PT-2500H Single pass high speed digital printing machine

PT-2500H Single pass high speed digital printing machine

The PT-2500H single pass high-speed digital printing press has an imported control panel system, which can control the orderly operation of the printing system to ensure fine printing. It has both stability and reliability. It has high printing color accuracy, delicate and rich images, and is wear-resistant and light-heat resistant.

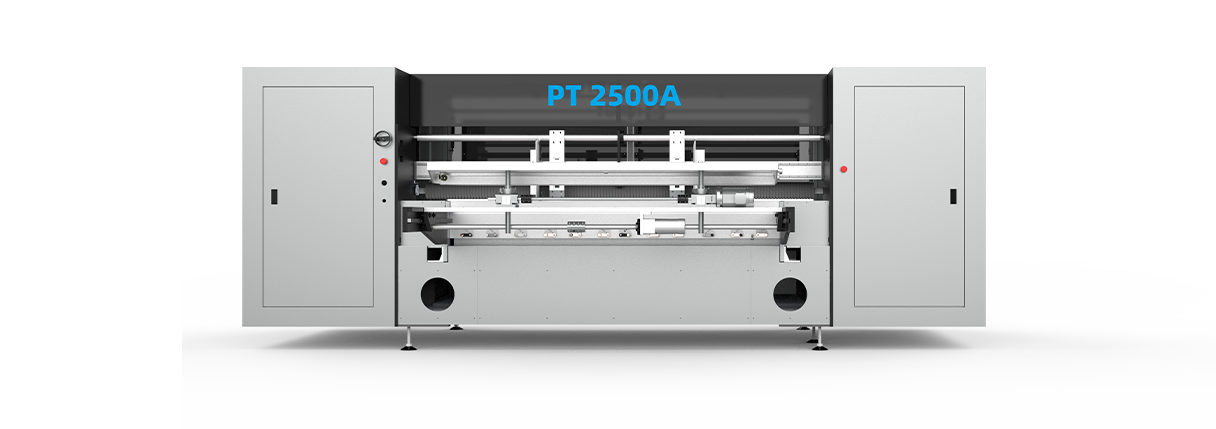

PT-2500A scanning digital printing machine
