Insufficient ink adhesion

The media surface is not clean enoughUse alcohol to wipe.

Problems with the material of the medium itselfDo coating surface treatment.

Ink expiredThe ink needs to be used up within two months after opening the cap, otherwise it will cause printing problems after expiration and new ink needs to be replaced.

UV light intensity is not enoughSet up the back and forth lighting to enhance the irradiation power.

Print job showing white color

The drawing itselfWhite shrinks by 2-4 pixels.

white calibrationCalibration parameters. The height of the nozzle bottom plate from the medium.

White ink parametersThe temperature is too high and the voltage is too low, causing the inkjet to not be vertical.

Printing material is unevenReplace the flat material for printing, compare the printing effect, and confirm whether there is a material problem.

Too much white inkReduce the amount of white ink.

White color cannot be applied

Physical calibrationAdjust the nozzle base, calibrate the nozzle level, and calibrate in Y direction.

The whiteness is irregular. In some places, the whiteness is to the left, in other places it is to the right, or to the top or bottom.The bottom plate of the nozzle is installed unevenly, or the bottom plate itself is deformed. Readjust or install the bottom plate, or replace the bottom plate. The grating does not stretch naturally, is pulled too tight, or is fixed in the middle. The raster read head is broken.

Pressed ink does not work

Ink pressing button failureCheck whether the wiring of the ink pressing button is loose, or replace the ink pressing button.

Positive pressure not workingCheck whether the positive pressure pump and No. 3 three-way valve are damaged, and replace the positive pressure pump or No. 3 three-way valve.

Fiber optic communication failedCheck whether the optical brazing wire is bent in the chain groove, or replace the optical brazing wire.

Print out

Disc filter clogged blackClean the black filter or replace the filter.

Temperature and voltage are inappropriateAdjust the temperature voltage.

Ink expiredReplace with a new bottle of ink.

There is always a product that suits you,
At the same time, we can provide customized services according to your specific requirements

On the journey to create high-quality products for our customers, we always adhere to the original intention of being sincere, adapt to needs, and grow together with our customers.

Related Products

Related Products

PT-2513-Hi UV flatbed printer

PT-2513-Hi UV flatbed printer

The PT-2513-Hi UV flatbed printer has the advantages of high precision, high efficiency and high height difference. It can easily print detailed, colorful images and text on the surface of various materials. With its excellent printing accuracy, efficiency and material compatibility, it accurately meets the market's stringent requirements for high-quality printing.

PT-YW-2513 UV flatbed printer

PT-YW-2513 UV flatbed printer

The PT-YW-2513 UV flatbed printer adopts a new dovetail design, making the operation more user-friendly; it is highly customizable and is one of Jingutian's best-selling products; it can be configured with a new visual positioning system, the deformation matching algorithm is faster, and it can achieve high-precision recognition and printing, enabling the printing needs of multiple types of materials.

PT-1620-H UV flatbed printer

PT-1620-H UV flatbed printer

PT-1620-H is a UV flatbed printer equipped with self-developed integrated vision software: printing software + RIP software + CCD intelligent visual positioning software; it has a scanning-while-printing mode, which is faster in timeliness, visual scanning from completion to printing, data processing speed is faster, and the equipment has both high precision and high speed.

PT-2513-G6 UV flatbed printer

PT-2513-G6 UV flatbed printer

PT-2513-G6 UV flatbed printer is widely used in many industries due to its high-precision printing, large-format printing, efficient production, multi-material adaptability, environmental protection and energy saving. At the same time, its advanced technical configuration and simple operation and maintenance procedures also provide users with great convenience.

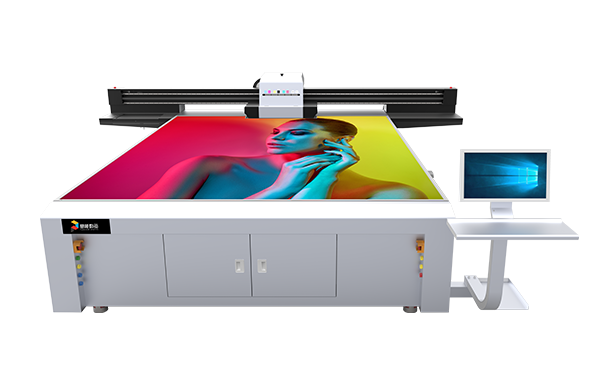

PT-2533 UV flatbed printer

PT-2533 UV flatbed printer

The PT-2533 UV flatbed printer adopts a motion mode of accelerated start and decelerated stop. The model can be customized on demand. It supports large format, multi-function, and ultra-fast printing. It has the advantages of low clogging rate and strong wear resistance. It is the preferred printer model in the home decoration industry.

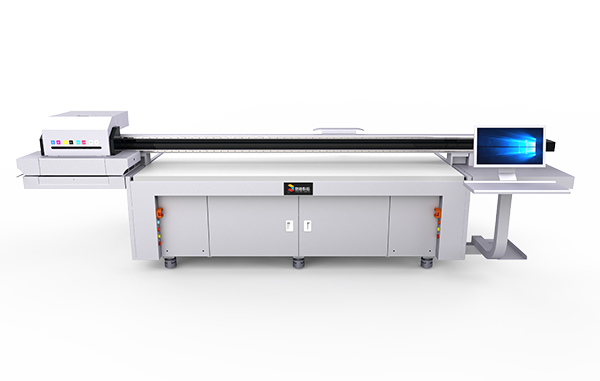

PT-2513 UV flatbed printer

PT-2513 UV flatbed printer

PT-2513 UV flatbed printer is widely used in many industries due to its characteristics of high-precision printing, large-format printing, efficient production, multi-material adaptability, environmental protection and energy saving. At the same time, its advanced technical configuration and simple operation and maintenance procedures also provide users with great convenience.

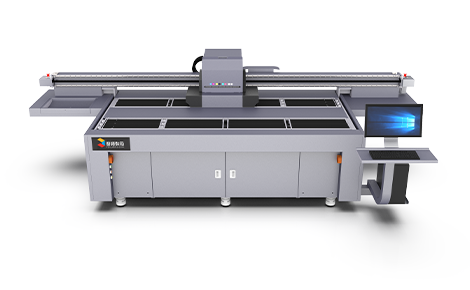

PT-2502 embedded cylinder printer

PT-2502 embedded cylinder printer

The PT-2502 embedded cylindrical printer is equipped with an industrial-grade Ricoh G5i nozzle, and the picture is realistic and delicate. The equipment is user-friendly and uses two alternating printing stations at the front and rear to facilitate material storage and organization. The fixture can also be customized according to needs, which has the advantages of faster speed, higher precision, and higher output.

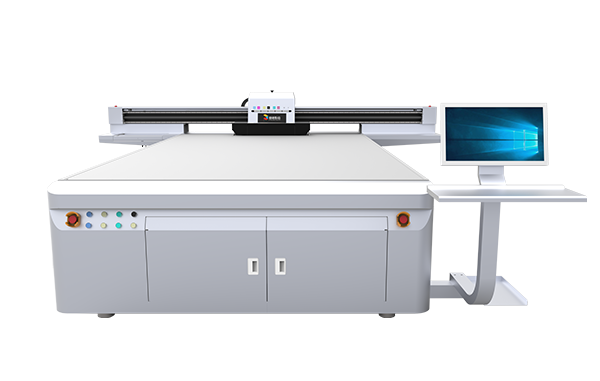

PT-2033 UV flatbed printer

PT-2033 UV flatbed printer

The PT-2033 UV flatbed printer adopts a motion mode of acceleration start and deceleration stop. It has the advantages of large format of 3300mm and multi-function. This machine mainly uses a double negative pressure system as the dominant ink supply and has stable performance. It is a comprehensive multi-functional industrial service equipment.

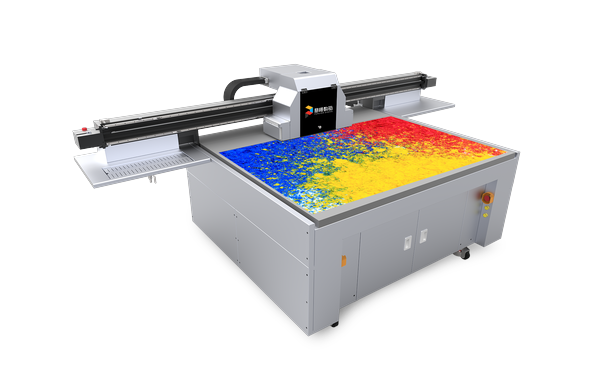

PT-1610 UV flatbed printer

PT-1610 UV flatbed printer

PT-1610 UV flatbed printer is a multi-functional digital inkjet printer. It is composed of imported fully digital servo motor units, imported linear guide rails and other high-tech accessories. It has intelligent control functions, is easy to operate, and can be configured with visual positioning functions to achieve intelligent and precise positioning printing.

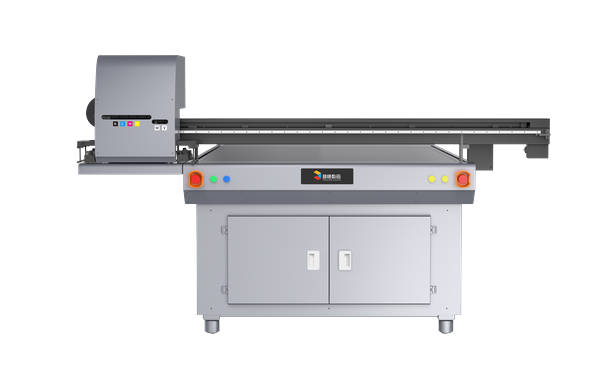

PT-1216 UV flatbed printer
